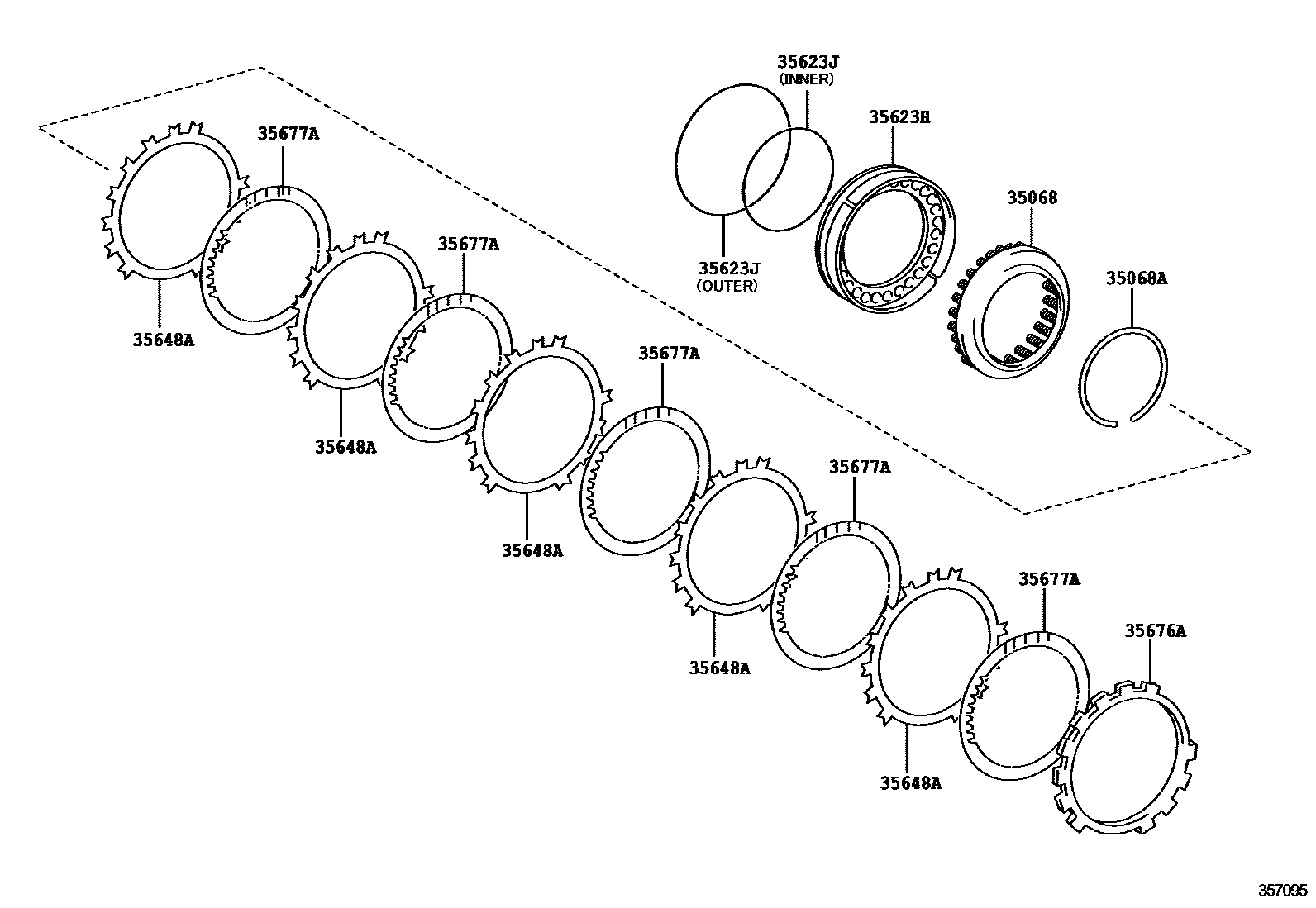

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U250E 0002 1U660E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iACV40..5FC200606-200908

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACV40..5FC200606-200908

35623PISTON, BRAKE, NO.3

main35623-33060iGSV40200908

sub35623-48030

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33050iACV40..5FC200606-200908

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iACV40..5FC200906

INNER

main90301-99098iACV40..5FC200606-200908

OUTER

sub90301-99134

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011×5iACV40..5FC200606-200908

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACV40..5FC200606-200908

T=1.8,MARK 1

main35678-21020iACV40..5FC200606-200908

T=1.9,MARK 2

main35678-21030iACV40..5FC200606-200908

T=2.0,MARK 3

main35678-21040iACV40..5FC200606-200908

T=2.1,MARK 4

main35678-21050iACV40..5FC200906

T=2.2,MARK 5

main35678-21060iACV40..5FC200906

T=2.3,MARK 6

main35678-21070iACV40..5FC200606-200908

T=2.4,MARK 7

main35678-21080iACV40..5FC200606-200908

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010×5iACV40..5FC200606-200908

8 parts on this diagram · 2 diagrams in section
