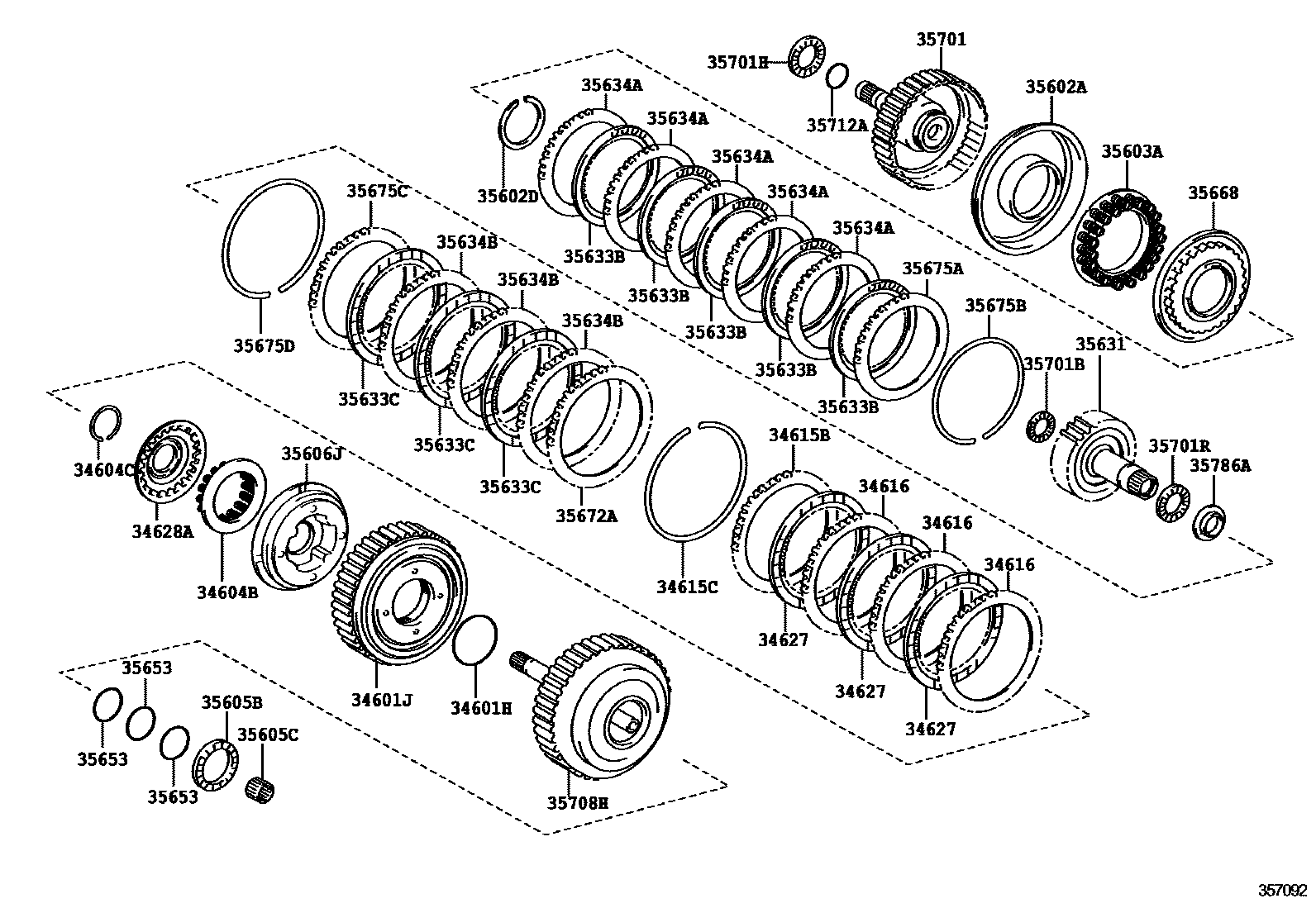

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34601HRING, O (FOR OVERDRIVE DIRECT CLUCH)
34604BSPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34604CSPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34615BFLANGE, OVERDRIVE CLUTCH
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
T=3.0
T=3.1
34615CRING, HOLE SNAP(FOR OVERDRIVE CLUCH)
34616PLATE, OVERDRIVE CLUTCH
34627DISC, OVERDRIVE DIRECT CLUTCH
34628ABALANCER, OVERDRIVE DIRECT CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35605BBEARING, THRUST NEEDLE ROLLER
sub90374-53006
35605CBEARING, NEEDLE ROLLER
35606JPISTON, OVERDRIVE DIRECT CLUTCH
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
sub35061-33020
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=1.8
35668BALANCER, CLUTCH, NO.1
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675AFLANGE, FORWARD CLUTCH
T=3.00
T=3.15
T=3.30
T=3.45
T=3.60
T=3.75
T=2.85
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=2.9
T=3.6
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=52.2
35701RBEARING, THRUST NEEDLE ROLLER
35708HSHAFT SUB-ASSY, INTERMEDIATE
sub35708-33010
35786ARACE, THRUST BEARING, NO.1
34 parts on this diagram · 2 diagrams in section
