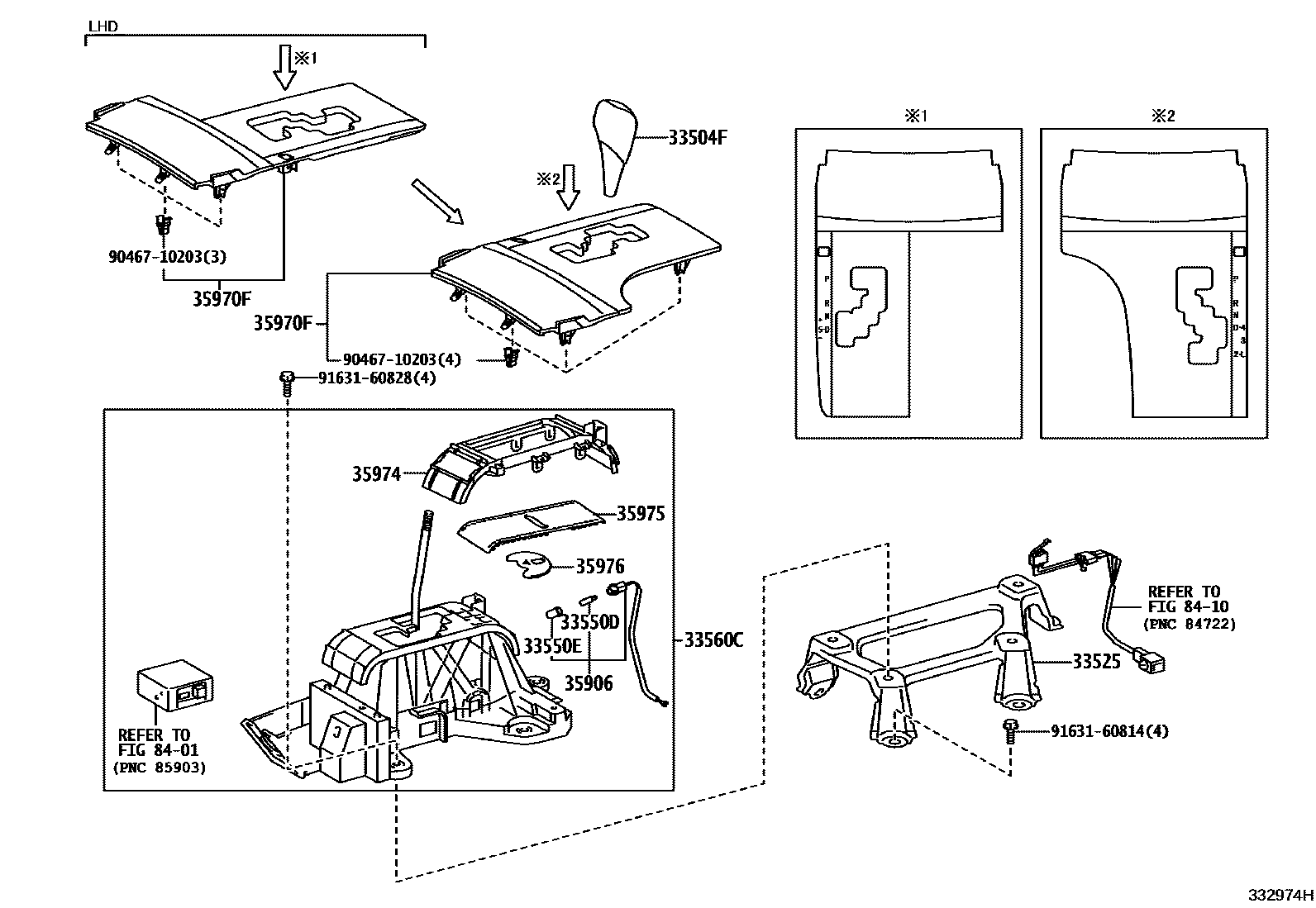

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06110-B0iGSV40..TOU200908-201110

DK.GRAY,TRIM41

main33504-06110-B0iGSV40..ATX200908-201110

DK.GRAY,TRIM1#

main33504-06110-B0iACV40,GSV40..ATM..(ALT,ATX)200606-200908

DK.GRAY,TRIM15

main33504-06110-B0iACV40..5FC..ALT200906-201110

DK.GRAY,TRIM14,15

main33504-06110-B1iACV40,GSV40..ATM..(GL,TOU)200606-201110

MD.GRAY,TRIM13

main33504-06110-B1iACV40,GSV40..ATM..(GL,TOU)200606-201110

MD.GRAY,TRIM1#

main33504-06110-E0iGSV40..TOU200908-201110

ASH BROWN,TRIM40

main33504-06110-E0iACV40,GSV40..ATM..(GL,TOU)200606-201110

ASH BROWN,TRIM4#

main33504-06120-B0iACV40..5FC..ALT200908-201110

LIMITED,DK.GRAY,TRIM1#

main33504-06120-B0iAHV40,GSV40..HBD,PRD,PRE200908-201110

DK.GRAY,TRIM1#,4#

main33504-06120-B0iGSV40..PRD,PRE,SPVS,SPVZ;ACV40..5FC..(ATEVA,GD,SE,SPV)200606-201110

DK.GRAY,TRIM1#

main33504-06120-B0iGSV40..ATX200704-200908

LIMITED,DK.GRAY,TRIM15

main33504-06120-B0iACV40..ATEVA,GD200906-201110

DK.GRAY,TRIM1#,41

main33504-06120-B0iACV40..ATEVA,GD200906-201110

DK.GRAY,TRIM4#

main33504-06120-B1iACV40..5FC..ALT200704-200908

LIMITED,MD.GRAY,TRIM13

main33504-06120-B1iACV40,GSV40..ATM..(GD,GLX)..GCC200606-201110

MD.GRAY,TRIM1#

main33504-06120-E0iACV40..ATEVA,GD200906-201110

ASH BROWN,TRIM40

main33504-06120-E0iACV40..ATEVA,GD200606-201110

ASH BROWN,TRIM4#

main33504-06120-E0iACV40..5FC..GL201104-201110

LIMITED,ASH BROWN,TRIM4#

main33504-06170-B0iACV40..5F..ALT200906-201110

DK.GRAY,TRIM14,15

sub33504-13010

main33504-06170-B0iACV40..5F..ALT200606-200906

DK.GRAY,TRIM15

sub33504-13010

main33504-06170-B1iACV40..5F..GL200606-201110

MD.GRAY,TRIM13

sub33504-13010

main33504-06170-B1iACV40..5F..GL200606-201110

MD.GRAY,TRIM1#

sub33504-13010

main33504-06170-E0iACV40..5F..GL200606-201110

ASH BROWN,TRIM4#

sub33504-13010

main33504-06180-B0iACV40..5F..SPV200606-201110

DK.GRAY,TRIM1#

main33504-06180-B0iACV40..5F..SPV200906-201110

DK.GRAY,TRIM4#

main33504-06180-B1iACV40..5F..GLX200606-201110

MD.GRAY,TRIM1#

main33504-06180-E0iACV40..5F..GLX200606-201110

ASH BROWN,TRIM4#

main33504-06180-E0iACV40..5F..GL201104-201110

LIMITED,ASH BROWN,TRIM4#

33525SUPPORT, SHIFT LEVER

main58123-06050iACV40..5FC..GCC200606-200908

sub58123-33020

main58123-06060iACV40..5FC..ARL200606-200908

sub58123-33010

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iACV40,GSV40..ATM200606-201110

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iGSV40..ARL200610-201110

NO.1

main90339-04049iACV40,GSV40..ATM..(ALT,ATEVA,GD,GL,GLX,SE,SPV,TOU)200606-201110

main90339-04077iGSV40..ARL200610-201110

NO.2

33560CLEVER ASSY, SHIFT, LOWER

main33560-33160iACV40..5FC..GCC200606-200906

main33560-33170iGSV40..GD200610-200908

main33560-33180iGSV40..TOU200610-200908

main33560-33200iACV40..GD200906

main33560-33210iACV40..5FC..(ALT,ATEVA,SPV)200606-200906

main33560-33230iAHV40201001

main33560-33290iGSV40..PRE,SPVZ200610-200908

main33560-33300iGSV40..ATX,PRD,SPVS200610-200908

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06150iGSV40..ARL200610-200908

NO.1

main35906-06151iGSV40..ARL200908

NO.1

main35906-33110iACV40,GSV40..ATM..(ALT,ATEVA,GD,GL,GLX,SE,SPV,TOU)200606-200801

sub35906-33111

main35906-33111iACV40..5FC200801-200908

main35906-33131iAHV40201001

main35906-33160iGSV40..ARL200610-200908

NO.2

35970FHOUSING ASSY, POSITION INDICATOR

main35970-06030iGSV40..GD200610-200904

sub35970-06031

main35970-06031iGSV40..GD200905-200908

main35970-06110iACV40..5FC..(GL,SE)200606-200904

sub35970-06111

main35970-06111iACV40..5FC..(GL,SE)200905-201110

main35970-06120iACV40..5FC..GLX200606-200904

sub35970-06121

main35970-06121iACV40..5FC..GLX200905-201110

main35970-06130iACV40..5FC..(ALT,ATEVA,SPV)200606-201110

main35970-06140iACV40..GD200606-201110

main35970-06240iGSV40..TOU200610-200904

sub35970-06241

main35970-06241iGSV40..TOU200905-201110

main35970-06250iGSV40..ATX,PRD,SPVS,SPVZ200610-200908

main35970-06251iGSV40..ATX,PRD,SPVS,SPVZ200908-201110

main35970-06260iGSV40..PRE200610-200908

main35970-06351iGSV40..PRE200908-201110

main35970-06361iGSV40..GD200908-201110

main35970-06390iAHV40201001-201110

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33130iACV40,GSV40..ATM..GCC200606-200908

main35974-33140iACV40,AHV40..ATM..ARL200606-200906

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33110iACV40..5FC200606-200908

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-33130iACV40..5FC200606-200908

8401

8410

9046710203

main90467-10203

9163160814

main91631-60814

9163160828

main91631-60828

15 parts on this diagram · 7 diagrams in section
