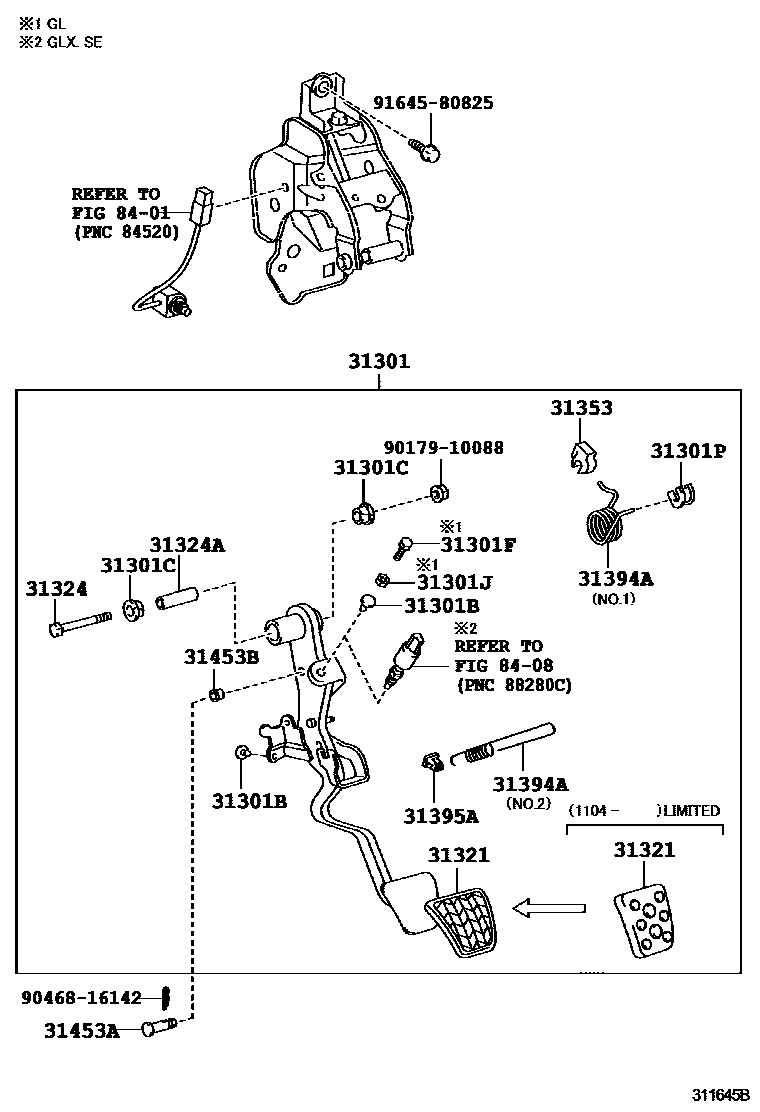

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31380-06120iACV40..5F..SPV200606-200908

sub31380-33291

main31380-06130iACV40..5F..ALT200606-200908

sub31380-33291

main31380-06140iACV40..5F..SE200708-200908

sub31380-33310

main31380-06150iACV40..5F..GLX200606-200908

sub31380-33310

main31380-06160iACV40..5F..GL200606-200908

sub31380-33320

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACV40..5F200606-200908

31301CBUSH(FOR CLUTCH PEDAL)

main90089-38004iACV40..5F200606-200702

sub90386-13015

main90386-13015iACV40..5F200703-200908

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iACV40..5F..GL200606-200908

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iACV40..5F..GL200606-200908

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iACV40..5F200606-200908

31321PAD, CLUTCH PEDAL

main31321-06010iACV40..5F..(ALT,GL,GLX)200906

(L)

main31321-06010iACV40..5F..(ALT,GL,GLX)200801-200908

main31321-52010iACV40..5F..SE200606-200801

main31321-52010iACV40..5F..(ALT,GL,GLX)200906

(J)

main31321-53010iACV40..5F..SPV200606-200908

31324SHAFT, CLUTCH PEDAL

main90101-10015iACV40..5F..ARL200606-200908

main90101-10164iACV40..5F..GCC200606-200908

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iACV40..5F..ARL200606-200908

main90387-10105iACV40..5F..GCC200606-200908

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iACV40..5F200606-200908

31394ASPRING, PEDAL W/HOOK

main31394-06030iACV40..5F..ARL200606-200908

NO.1

main31394-06040iACV40..5F..GCC200606-200908

NO.1

main31394-25010iACV40..5F200606-200908

NO.2

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iACV40..5F200606-200908

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iACV40..5F200606-200908

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iACV40..5F200606-200908

8401

8408

9017910088

main90179-10088

9046816142

main90468-16142

9164580825

main91645-80825

19 parts on this diagram · 4 diagrams in section
