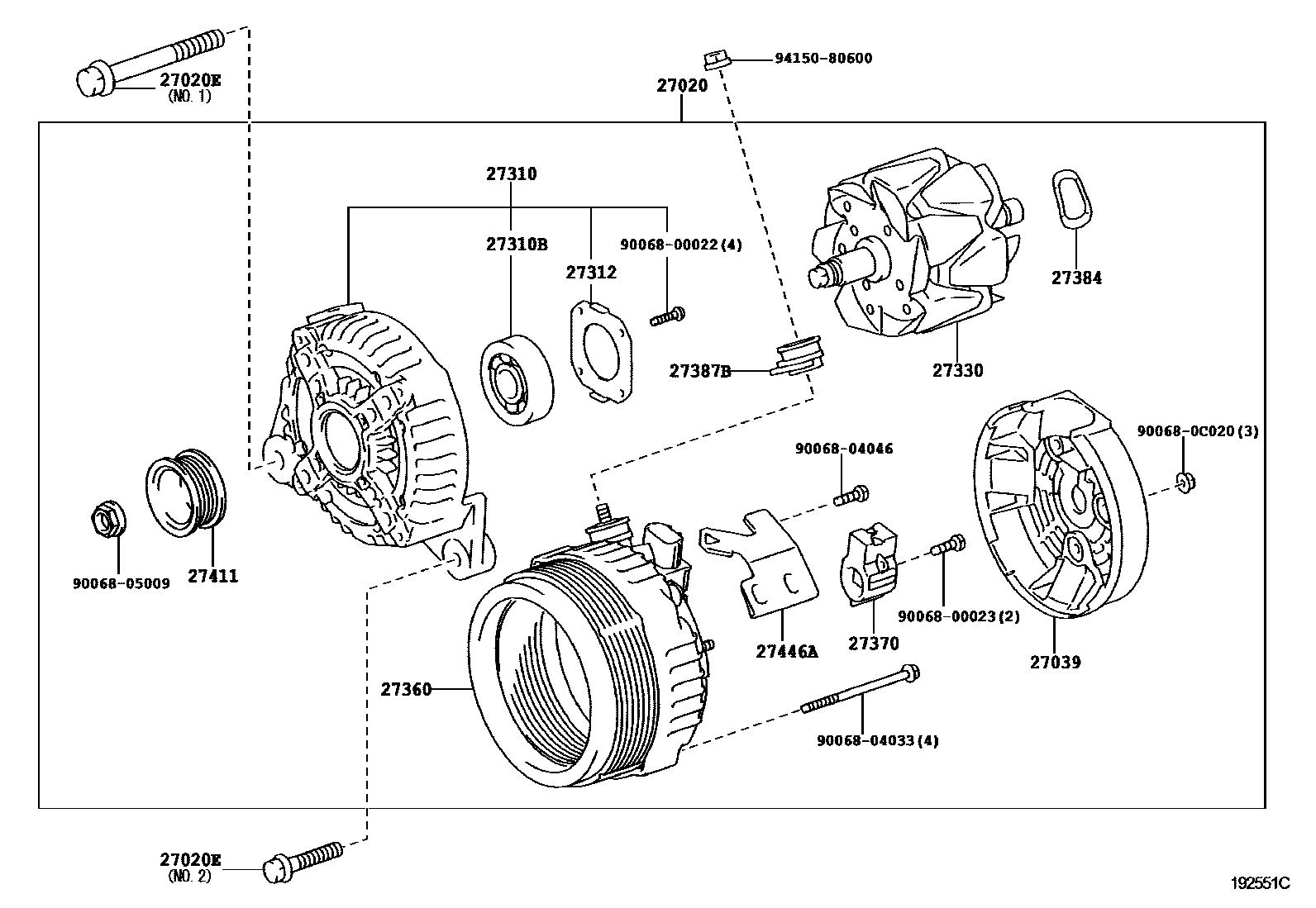

ALTERNATOR
27020ALTERNATOR ASSY
12V 80A
12V 80A
12V 100A
27020EBOLT(FOR ALTERNATOR)
NO.1
NO.2
NO.1
NO.2
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27387BINSULATOR, ALTERNATOR TERMINAL
27411PULLEY, ALTERNATOR
27446ACLAMP
9006800022
main90068-00022
9006800023
main90068-00023
9006804033
main90068-04033
9006804046
main90068-04046
9006805009
main90068-05009
900680C020
main90068-0C020
9415080600
main94150-80600
20 parts on this diagram · 4 diagrams in section
