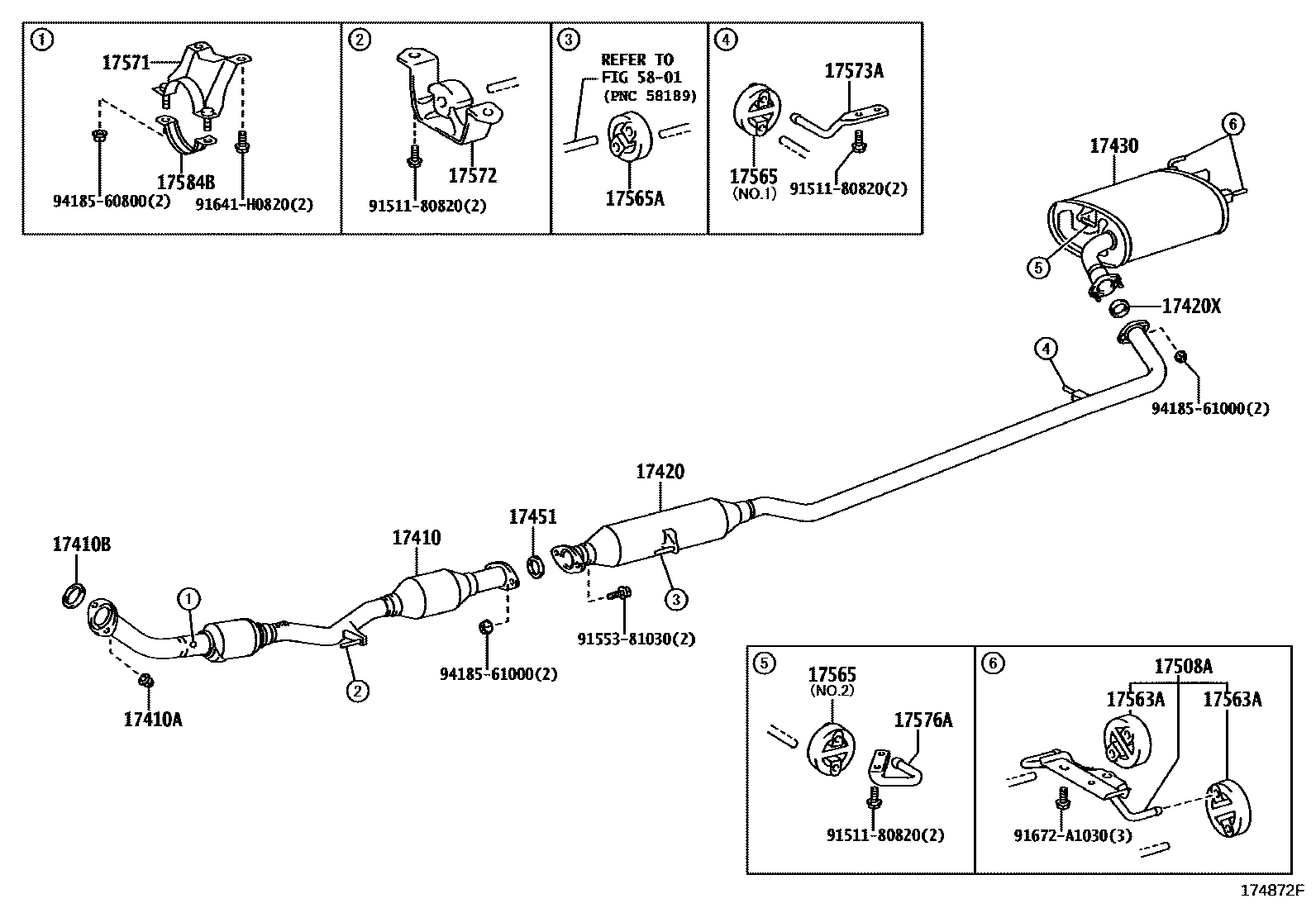

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
PAPUA NEW GUINEA/FIJI SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
sub17430-0H211
sub17430-28710
sub17430-0H211
sub17430-0H221
LIMITED
sub17430-0H221
AURION TRD PACKAGE
17451GASKET, EXHAUST PIPE
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
NO.1
NO.1
NO.2
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
sub17572-0H030
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5801
9151180820
main91511-80820
9155381030
main91553-81030
91641H0820
main91641-H0820
91672A1030
main91672-A1030
9418560800
main94185-60800
9418561000
main94185-61000
23 parts on this diagram · 2 diagrams in section
