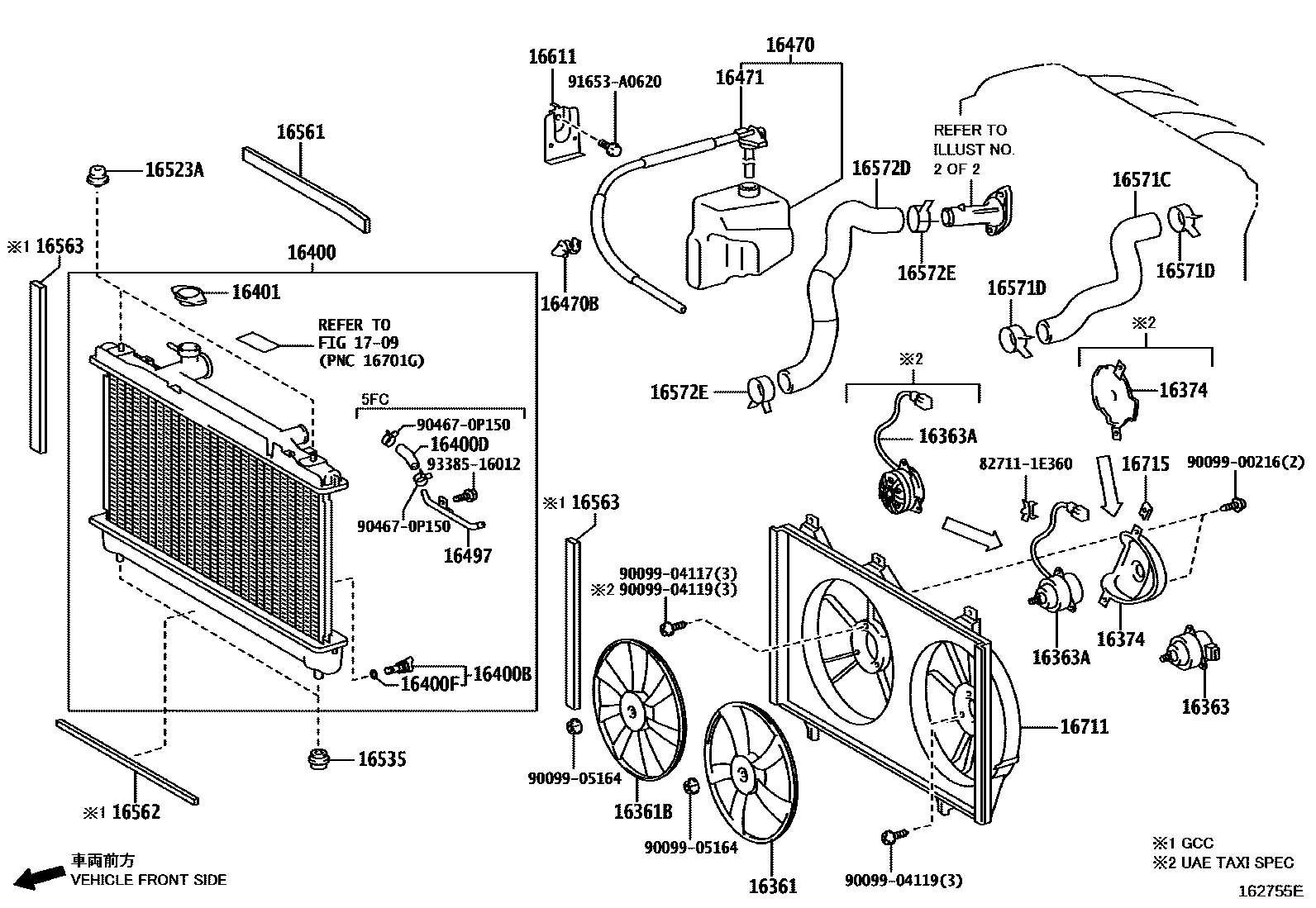

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400DHOSE(FOR RADIATOR DRAIN COCK)
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16497INLET SUB-ASSY
16523ACUSHION, RADIATOR SUPPORT
16562SEAL, RADIATOR TO SUPPORT, NO.2
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
16715BRACKET, FAN SHROUD
1709
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009900216
main90099-00216
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
904670P150
main90467-0P150
91653A0620
main91653-A0620
9338516012
main93385-16012
35 parts on this diagram · 5 diagrams in section
