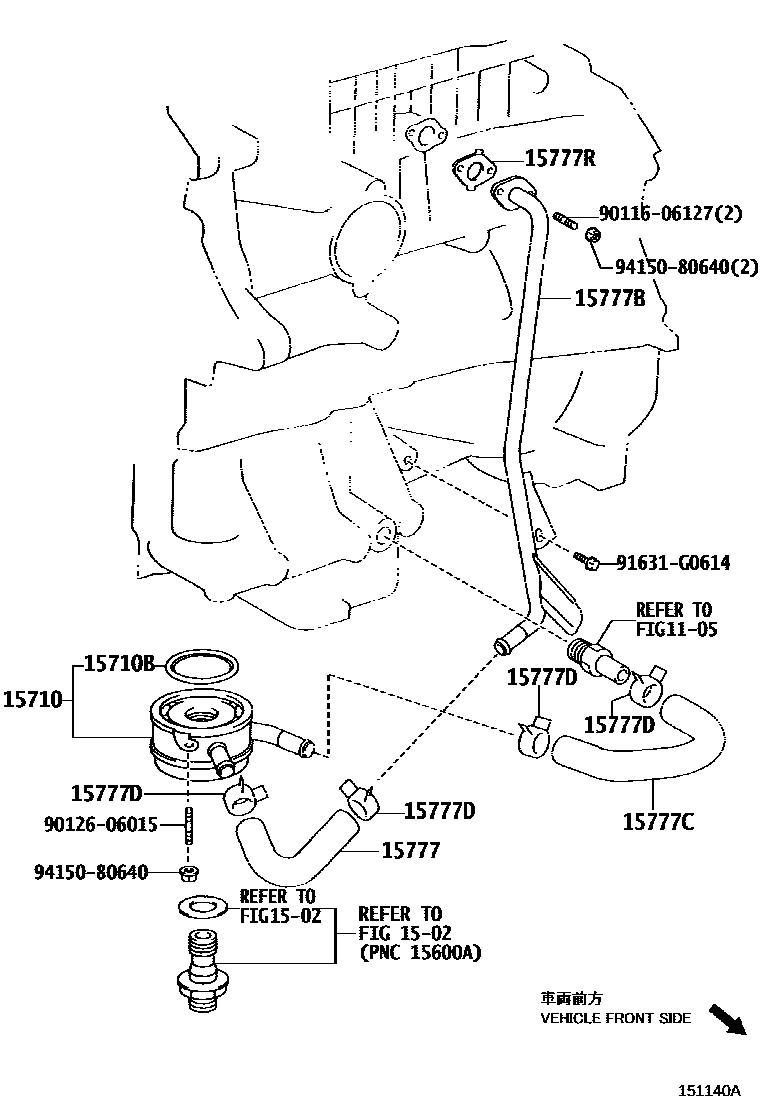

ENGINE OIL COOLER

0001 1 0002 1

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFE..ACV40¥39,500200606-200908

main15710-31021i2GRFE..GSV40200610-200908

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFE..ACV40¥0200606-200908

main90301-67004i2GRFE..GSV40¥0200610-200908

15777HOSE, OIL COOLER

main16267-28080i2AZFE..ACV40¥720200606-200908

main16281-31030i2GRFE..GSV40¥1,430200610-200908

15777BPIPE, OIL COOLER

main16279-0H010i2AZFE..ACV40200606-200908

(L)

main16279-28010i2AZFE..ACV40¥3,290200606-200908

(J)

15777CHOSE, OIL COOLER

main16281-28010i2AZFE..ACV40¥490200606-200908

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96134-41900i2AZFE..ACV40¥90200606-200908

main96136-42101i2GRFE..GSV40¥240201001

main96136-52101i2GRFE..GSV40¥180200610-201001

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main16258-0H030i2AZFE..ACV40200606-200908

(L)

main16258-28040i2AZFE..ACV40¥310200606-200908

(J)

9011606127

main90116-06127¥80

9012606015

main90126-06015¥110

91631G0614

main91631-G0614¥60

9415080640

main94150-80640¥220
