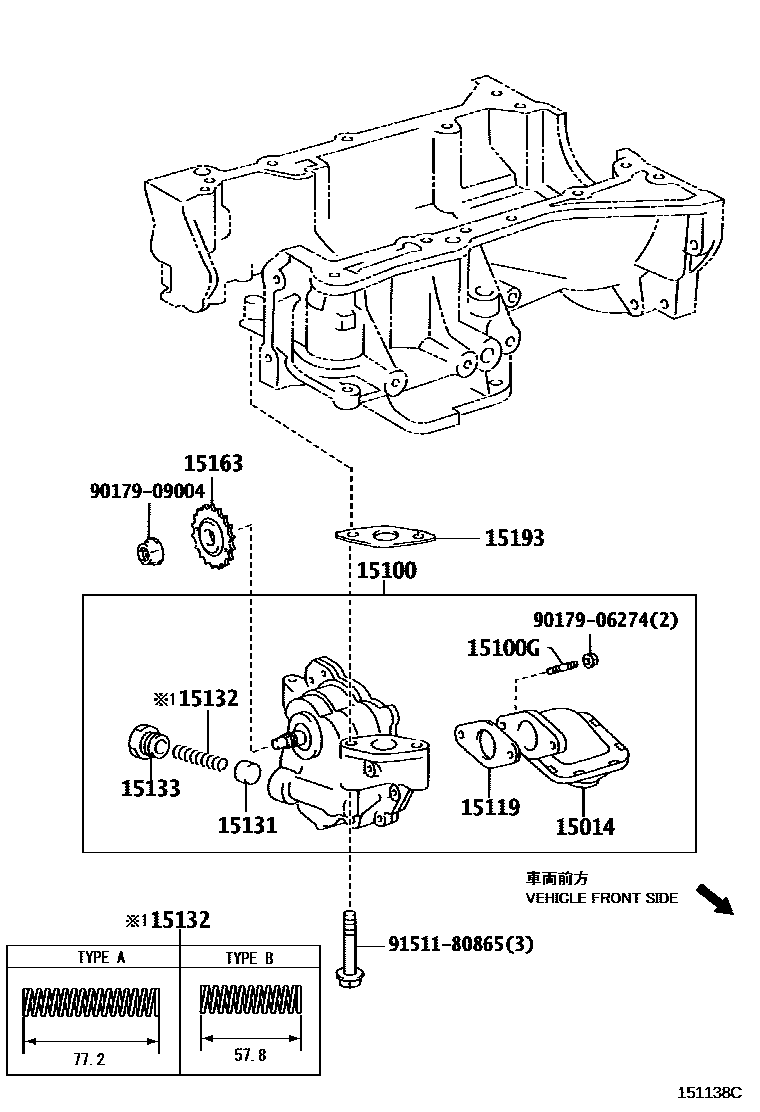

ENGINE OIL PUMP
15014STRAINER SET, OIL PUMP
(L)
(J)
15100PUMP ASSY, OIL
(L)
(J)
15100GBOLT,STUD(FOR OIL PUMP)
(L)
(J)
15119GASKET, OIL PUMP COVER
(L)
(J)
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
15133PLUG, OIL PUMP RELIEF VALVE
(J)
15163GEAR, OIL PUMP DRIVE SHAFT
(L)
(J)
15193GASKET, OIL PUMP
9017906274
main90179-06274
9017909004
main90179-09004
9151180865
main91511-80865
12 parts on this diagram · 2 diagrams in section
