CYLINDER BLOCK

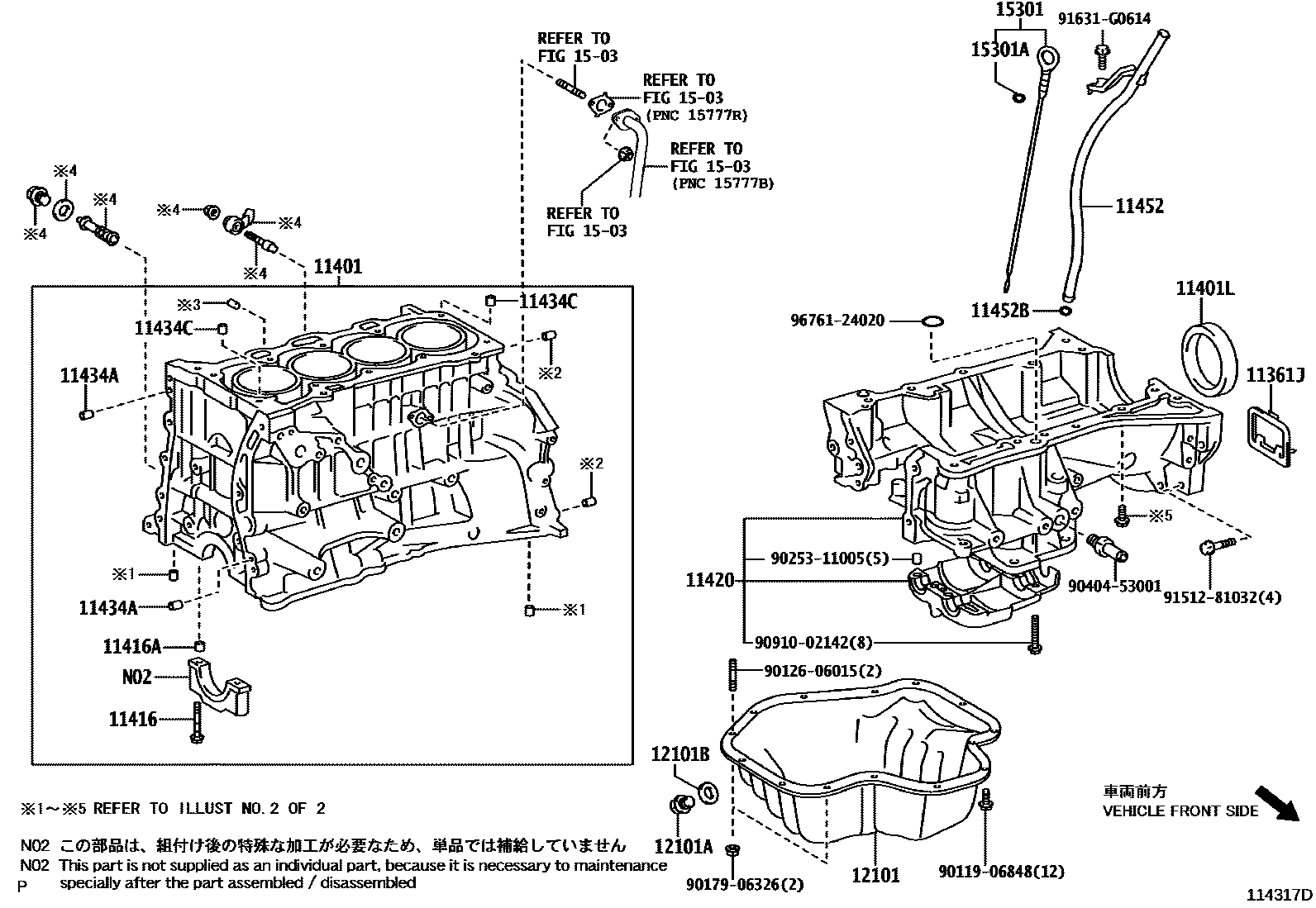

Parts diagram
11361JCOVER, FLYWHEEL HOUSING UNDER
main11361-0H010i200606-200906
(L)
sub11361-28010
main11361-0H010i201001
sub11361-28010
main11361-28010i200606-200906
(J)
11401BLOCK SUB-ASSY, CYLINDER
main11401-80718i200610-200804
sub11401-80774
main11401-80774i200805-200908
sub11401-80825
main11410-29325i200606-200608
sub11410-29326
main11410-29326i200608-201110
main11410-29345i201001-201110
sub11410-29346
11401LSEAL, ENGINE REAR OIL
main90080-31082i200606-201105
sub90311-T0040
main90311-89003i201001-201110
sub90311-89007
main90311-T0040i201105-201110
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02124i200606-200906
sub90910-02206
main90910-02154i200610-200908
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
main90253-13017i200606-200906
11420CRANKCASE ASSY, STIFFENING
main11420-0H020i200711-201004
(L)
main11420-0H021i201004-201010
(L)
sub11420-0H022
main11420-0H022i201010
(L)
main11420-0H050i201001-201010
(L)
sub11420-0H051
main11420-0H051i201010
(L)
main11420-28020i201001-201010
(J)
sub11420-28021
main11420-28021i201010
(J)
main11420-28031i200711-201010
(J)
sub11420-28032
main11420-28031i200606-200711
sub11420-28032
main11420-28032i201010
(J)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-04097i200610-200908
L=12,OD=4.0
main90250-08120i200606-200906
L=18,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90250-08120i200610-200908
L=18,OD=8
main90253-14003i200606-200906
L=12,OD=14
11452GUIDE, OIL LEVEL GAGE
main11452-0H070i200606-200906
main11452-28040i201001
main11452-31060i200610-200908
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main90301-12018i200610-200908
main96721-19010i200606-200906
12101PAN SUB-ASSY, OIL
main12101-0H040i200606-200906
(L)
sub12101-28030
main12101-28030i200606-200906
(J)
main12101-28060i201001
main12111-31150i200610-200908
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i200606-200908
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12031i200606-200908
1503
15301GAGE SUB-ASSY, OIL LEVEL
main15301-0H030i200606-200906
(L)
main15301-28020i200606-200906
(J)
main15301-28030i201001
sub15301-28031
main15301-31100i200610-200908
15301ARING, O(FOR OIL LEVEL GAGE)
main96741-19005i200606-200906
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025311005
main90253-11005
9040453001
main90404-53001
9091002142
main90910-02142
9151281032
main91512-81032
91631G0614
main91631-G0614
9676124020
main96761-24020

25 parts on this diagram · 4 diagrams in section
