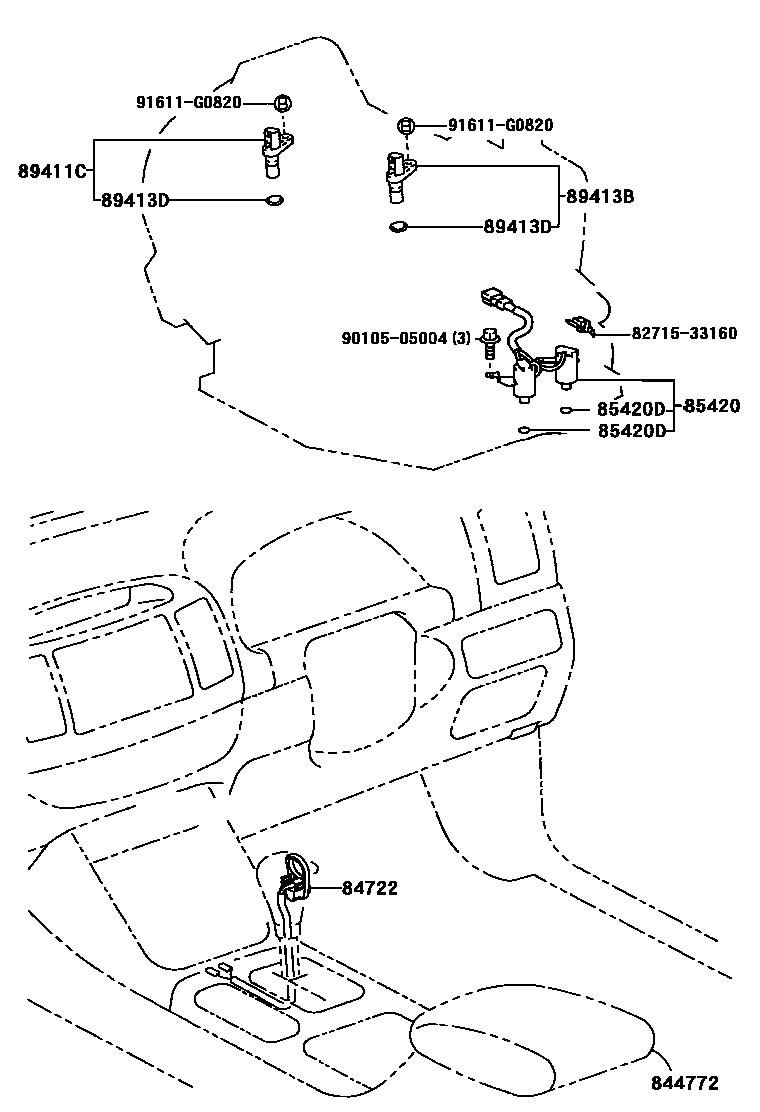

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84722SWITCH, TRANSMISSION CONTROL

main84722-33100-B0iACV36,MCV36..ATM..GCC200208-200606

DK.CHARCOAL,TRIM1#

main84722-33100-B0iACV36..ATM..GLI200508-200606

DK.CHARCOAL,TRIM11

main84722-33100-B1iACV36..ATM..GLI200508-200606

DK.GRAY,TRIM1#

main84722-33100-E0iACV36,MCV36..ATM..GCC200208-200606

SANDAL WOOD,TRIM4#

main84722-33130-B0iACV36,MCV36..ATM..(ALT,ATEVA)200208-200606

DK.CHARCOAL,TRIM1#

sub84722-33130

main84722-33130-B0iACV36,MCV36..ATM..(ALT,ATEVA,GD)..ARL200408-200606

SANDAL WOOD,TRIM4#

sub84722-33130

main84722-33130-B1iACV36,MCV36..ATM..SPV200208-200606

DK.GRAY,TRIM1#

sub84722-33130

main84722-33130-E0iACV36,MCV36..ATM..(ALT,ATEVA)200208-200408

SANDAL WOOD,TRIM4#

sub84722-33130

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCV36..ATM200208-200408

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMCV36..ATM200208-200408

89411CSENSOR, SPEED

main89411-33010iACV36,MCV36200208-200408

TOYOTA

sub89413-24010

main89413-24010iACV36,MCV36200208-200408

AISIN

main89413-24010iACV36,MCV36..ATM200408-200606

89413BSENSOR, TRANSMISSION REVOLUTION

main89411-33010iACV36200208-200401

TOYOTA

sub89413-24010

main89413-24010iACV36200208-200408

AISIN

main89413-24010iACV36..ATM200408-200606

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iMCV36200208-200408

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

9010505004

main90105-05004

91611G0820

main91611-G0820

9 parts on this diagram · 2 diagrams in section
