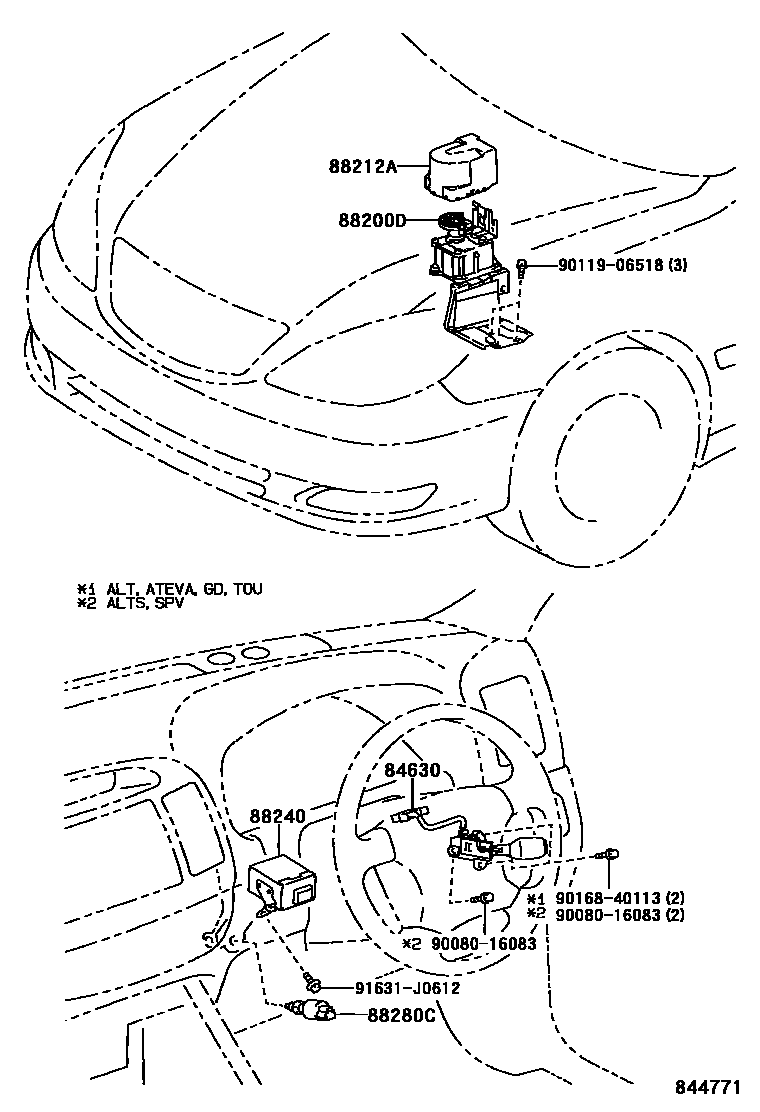

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06050iACV36,MCV36..ALTS,SPV200208-200408

main84630-28070iACV36,MCV36..ALT,ATEVA,GD,TOU200208-200408

main84630-28071iMCV36..GD..GCC;ACV36,MCV36..ALT,TOU200409-200606

main84632-08020iACV36,MCV36..(ATEVA,GD,SPV)..ARL200408-200409

main84632-08021iACV36,MCV36..ALT200507-200606

LE PACKAGE

sub84632-34010

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33030iACV36..ARL200208-200408

main88200-33040iMCV36200208-200408

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-33010iACV36,MCV36..ALT,ALTS,ATEVA,GD,SPV,TOU200208-200408

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33180iMCV36..ATM200208-200408

main88240-33190iACV36,MCV36..MTM..(ALT,ALTS,GD,SPV,TOU)200208-200408

main88240-33200iACV36..ATM..ARL200208-200408

88280CSWITCH ASSY, CLUTCH

main88280-14030iACV36,MCV36..MTM..(ALT,GD,SPV,TOU)200408-200606

9008016083

main90080-16083

9011906518

main90119-06518

9016840113

main90168-40113

91631J0612

main91631-J0612

9 parts on this diagram · 2 diagrams in section
