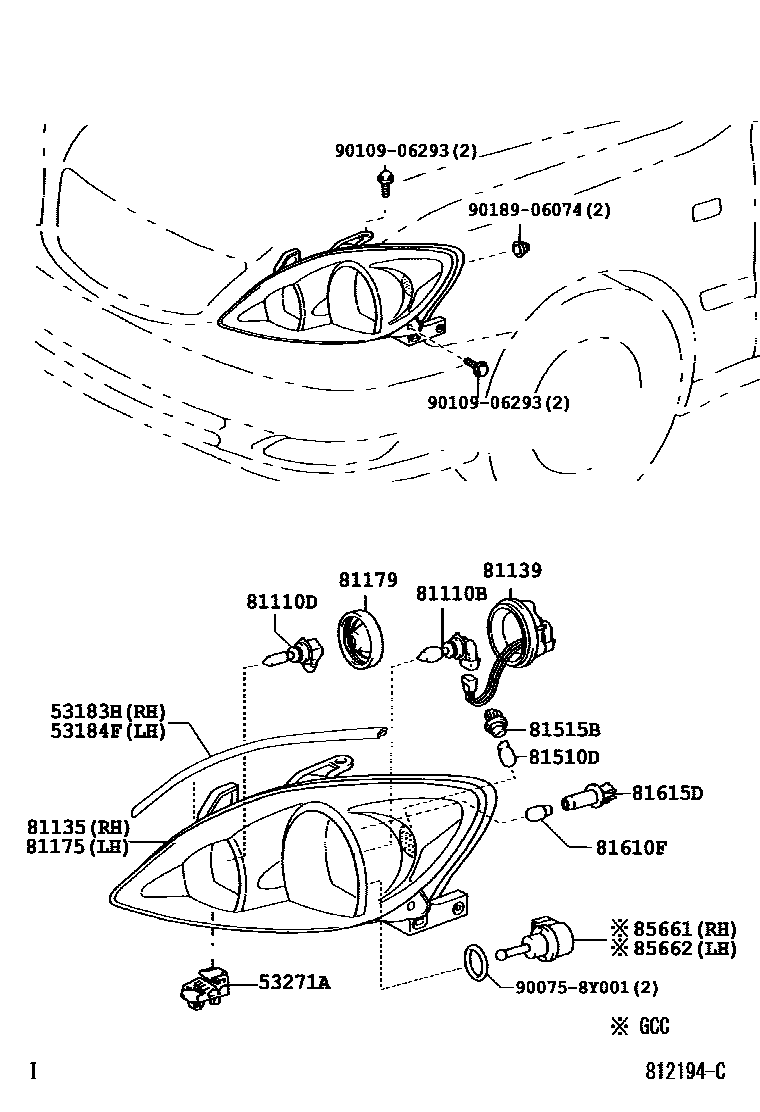

HEADLAMP

0001 1 0002 1

53183HSEAL, HEADLAMP COVER, RH

main53183-8Y001iACV36,MCV36..ARL200208-200408

53184FSEAL, HEADLAMP COVER, LH

main53184-8Y001iACV36,MCV36..ARL200208-200408

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010iACV36,MCV36200208-200601

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iACV36,MCV36200208-200601

12V 60/55W,*HAL *WH

sub90981-13058

81110DBULB(FOR HEADLAMP, NO.2)

main90011-11036iACV36,MCV36..GCC200208-200408

main90981-8Y001iACV36,MCV36..ARL200208-200601

12V 65W

81135UNIT ASSY, HEADLAMP, RH

main81130-8Y002iACV36..ALT,ATEVA;MCV36..ATM..(ALT,ATEVA,GD)..ARL200408

SOUTH AFRICA SPEC

main81130-8Y002iMCV36..MTM..ALT200408-200601

main81130-8Y003iACV36..SPV;MCV36..ATM..SPV200408-200601

main81130-8Y004iACV36,MCV36..GCC200408

main81130-8Y005iACV36..GLI200507

LIMITED PACK

main81130-YC090iACV36,MCV36..ALT,ALTS,ATEVA200208-200408

main81130-YC100iACV36,MCV36..SPV200208-200408

main81130-YC110iACV36,MCV36..GCC200208-200307

main81130-YC120iACV36,MCV36..GCC200307-200408

81139COVER, HEADLAMP SOCKET

main81139-YC090iACV36,MCV36200208-200601

81175UNIT ASSY, HEADLAMP, LH

main81170-8Y002iACV36..ALT,ATEVA;MCV36..ATM..(ALT,ATEVA,GD)..ARL200408

SOUTH AFRICA SPEC

main81170-8Y002iMCV36..MTM..ALT200408-200601

main81170-8Y003iMCV36..MTM..SPV200408-200601

main81170-8Y004iACV36,MCV36..GCC200408

main81170-8Y005iACV36..GLI200507

LIMITED PACK

main81170-YC090iACV36,MCV36..ALT,ALTS,ATEVA200208-200408

main81170-YC100iACV36,MCV36..SPV200208-200408

main81170-YC110iACV36,MCV36..GCC200208-200307

main81170-YC120iACV36,MCV36..GCC200307-200408

81179COVER, HEADLAMP SOCKET

main81179-YC090iACV36,MCV36200208-200601

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210iACV36,MCV36200208-200408

12V 21W

main99132-8Y001iACV36;MCV36..ATM;MCV36..MTM..GCC200408-200601

12V 21W,YELLOW

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-8Y002iMCV36..MTM..ARL200408-200601

main90069-81044iACV36,MCV36200208-200408

81610FBULB(FOR CLEARANCE LAMP)

main84999-YC010iACV36,MCV36200208-200408

12V 5W

sub99132-12050

main99132-12050iMCV36..MTM..ARL200408-200601

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81043iACV36,MCV36200208-200408

main90069-8Y001iMCV36..MTM..ARL200408-200601

85661MOTOR, HEADLAMP LEVELING, RH

main85661-8Y001iACV36,MCV36..GCC200307-200408

85662MOTOR, HEADLAMP LEVELING, LH

main85661-8Y001iACV36,MCV36..GCC200307-200408

900758Y001

main90075-8Y001

9010906293

main90109-06293

9018906074

main90189-06074

18 parts on this diagram · 2 diagrams in section
