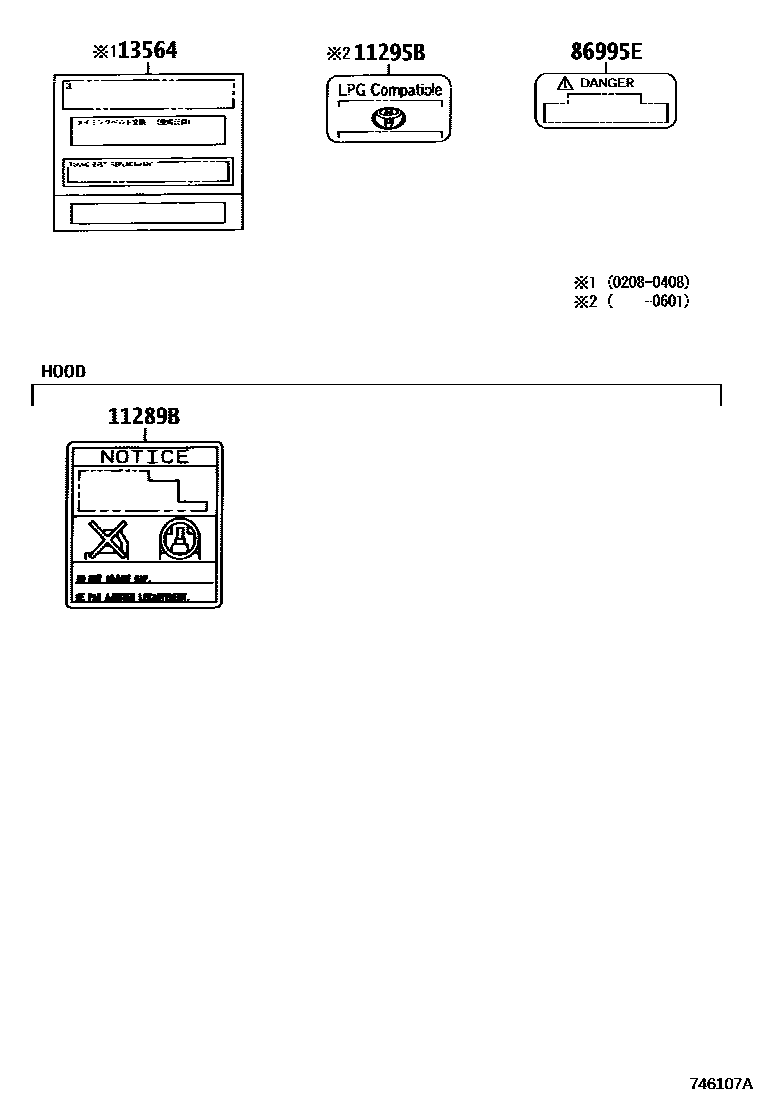

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM(1/2) 0002 1ENGINE ROOM, EXTERIOR, INTERI

11289BLABEL, SPARK PLUG NOTICE

main11289-20010i1MZFE..MCV36200208-200606

main11289-28010i2AZFE..ACV36..ARL200601-200606

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-YF010i1MZFE..MCV36..ATM..(ALT,ATEVA)200208-200601

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010i1MZFE..MCV36200208-200408

86995ELABEL, CAUTION

main88723-8Y001iACV36200208-200606

4 parts on this diagram · 2 diagrams in section
