EPC Data

FRONT SEAT & SEAT TRACK

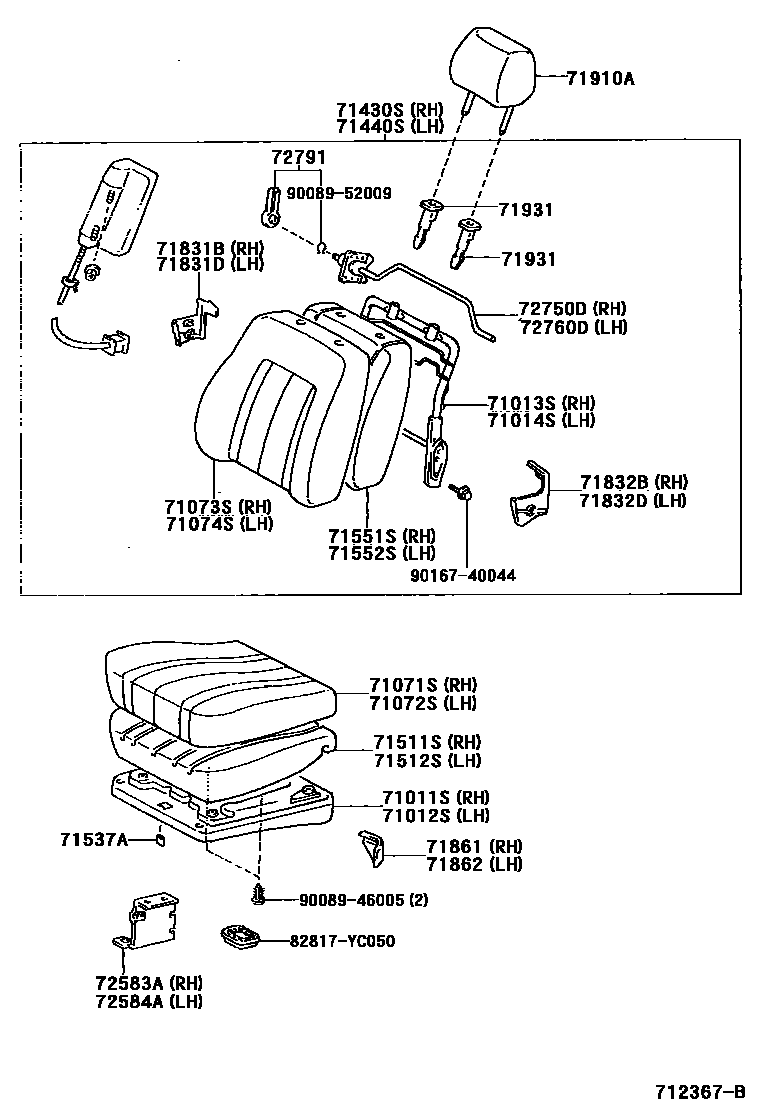

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-YC040i200208-200408
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-YC040i200208-200408
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-YC040i200208-200408
main71013-YC040i200507
*80(DRIVER SIDE & PASSENGER SIDE);DECONTENT PACKAGE
main71013-YC060i200507
DECONTENT PACKAGE
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-YC040i200208-200408
main71013-YC040i200507
*80(DRIVER SIDE & PASSENGER SIDE);DECONTENT PACKAGE
main71014-YC010i200507
DECONTENT PACKAGE
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-YC390-B0i200208-200408
STONE,TRIM1#
main71071-YC390-E0i200208-200408
FAWN,TRIM4#
main71071-YC400-B0i200208-200408
STONE,TRIM1#
main71071-YC400-E0i200208-200408
FAWN,TRIM4#
main71071-YC410-B0i200208-200408
GREY,TRIM1#
main71071-YC420-B0i200208-200408
STONE,TRIM1#
main71071-YC420-E0i200208-200408
FAWN,TRIM4#
main71071-YC430-B0i200208-200301
LEATHER SEAT,STONE,TRIM1#
main71071-YC430-B2i200301-200606
LEATHER SEAT,STONE,TRIM1#
main71071-YC430-E0i200208-200301
LEATHER SEAT,FAWN,TRIM4#
main71071-YC430-E2i200301-200606
LEATHER SEAT,FAWN,TRIM4#
main71071-YC440-B0i200208-200301
LEATHER SEAT,STONE,TRIM15
main71071-YC440-B2i200301-200408
LEATHER SEAT,STONE,TRIM15
main71071-YC440-E0i200208-200301
LEATHER SEAT,FAWN,TRIM16
main71071-YC440-E2i200301-200408
LEATHER SEAT,FAWN,TRIM16
main71071-YC450-B0i200208-200408
STONE,TRIM1#
main71071-YC450-E0i200208-200408
FAWN,TRIM4#
main71071-YC460-B0i200208-200408
GREY,TRIM1#
main71071-YC470-B0i200408-200606
STONE,TRIM1#
main71071-YC470-E0i200408-200606
FAWN,TRIM4#
main71071-YC480-B0i200408-200606
STONE,TRIM1#
main71071-YC480-E0i200408-200606
FAWN,TRIM4#
main71071-YC490-B0i200408-200606
STONE,TRIM1#
main71071-YC490-E0i200408-200606
FAWN,TRIM4#
main71071-YC500-B0i200408-200507
STONE,TRIM1#
main71071-YC500-E0i200408-200507
FAWN,TRIM4#
main71071-YC510-B0i200408-200606
STONE,TRIM1#
main71071-YC510-E0i200408-200606
FAWN,TRIM4#
main71071-YC520-B0i200408-200606
DK.GRAY,TRIM1#
main71071-YC520-B0i200507-200606
DECONTENT PACKAGE,DK.GRAY,TRIM1#
main71071-YC530-B0i200408-200606
LEATHER SEAT,STONE,TRIM15
main71071-YC530-E0i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71071-YC540-B0i200408-200606
DK.GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-YC370-B0i200208-200408
STONE,TRIM1#
main71072-YC370-E0i200208-200408
FAWN,TRIM4#
main71072-YC380-B0i200208-200408
STONE,TRIM1#
main71072-YC380-E0i200208-200408
FAWN,TRIM4#
main71072-YC390-B0i200208-200408
GREY,TRIM1#
main71072-YC400-B0i200208-200408
STONE,TRIM1#
main71072-YC400-E0i200208-200408
FAWN,TRIM4#
main71072-YC410-B0i200208-200301
LEATHER SEAT,STONE,TRIM1#
main71072-YC410-B2i200301-200606
LEATHER SEAT,STONE,TRIM1#
main71072-YC410-E0i200208-200301
LEATHER SEAT,FAWN,TRIM4#
main71072-YC410-E2i200301-200606
LEATHER SEAT,FAWN,TRIM4#
main71072-YC420-B0i200208-200301
LEATHER SEAT,STONE,TRIM15
main71072-YC420-B2i200301-200408
LEATHER SEAT,STONE,TRIM15
main71072-YC420-E0i200208-200301
LEATHER SEAT,FAWN,TRIM16
main71072-YC420-E2i200301-200408
LEATHER SEAT,FAWN,TRIM16
main71072-YC430-B0i200208-200408
STONE,TRIM1#
main71072-YC430-E0i200208-200408
FAWN,TRIM4#
main71072-YC440-B0i200208-200408
GREY,TRIM1#
main71072-YC450-B0i200408-200606
STONE,TRIM1#
main71072-YC450-E0i200408-200606
FAWN,TRIM4#
main71072-YC470-B0i200408-200606
STONE,TRIM1#
main71072-YC470-E0i200408-200606
FAWN,TRIM4#
main71072-YC480-B0i200408-200606
STONE,TRIM1#
main71072-YC480-E0i200408-200606
FAWN,TRIM4#
main71072-YC500-B0i200507-200606
DECONTENT PACKAGE,DK.GRAY,TRIM1#
main71072-YC500-B0i200408-200606
DK.GRAY,TRIM1#
main71072-YC510-B0i200408-200606
LEATHER SEAT,STONE,TRIM15
main71072-YC510-E0i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71072-YC520-B0i200408-200606
DK.GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-YC490-B0i200208-200301
STONE,TRIM1#
main71073-YC490-B1i200301-200307
STONE,TRIM1#
main71073-YC490-B2i200307-200408
STONE,TRIM1#
main71073-YC490-E1i200208-200301
FAWN,TRIM4#
main71073-YC490-E2i200301-200307
FAWN,TRIM4#
main71073-YC490-E3i200307-200408
FAWN,TRIM4#
main71073-YC500-B0i200208-200301
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC500-B1i200301-200307
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC500-B2i200307-200408
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC500-E1i200208-200301
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC500-E2i200301-200307
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC500-E3i200307-200408
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC510-B1i200208-200408
STONE,TRIM1#
main71073-YC510-E1i200208-200408
FAWN,TRIM4#
main71073-YC520-B1i200208-200408
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC520-E1i200208-200408
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC530-B0i200208-200408
GREY,TRIM1#
main71073-YC540-B0i200208-200408
W(SRS SIDE AIR BAG),GREY,TRIM1#
main71073-YC550-B0i200208-200307
STONE,TRIM1#
main71073-YC550-B1i200307-200408
STONE,TRIM1#
main71073-YC550-E0i200208-200307
FAWN,TRIM4#
main71073-YC550-E1i200307-200408
FAWN,TRIM4#
main71073-YC560-B0i200208-200408
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC560-E0i200208-200408
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC570-B0i200208-200301
LEATHER SEAT,STONE,TRIM1#
main71073-YC570-B1i200301-200606
LEATHER SEAT,STONE,TRIM1#
main71073-YC570-B2i200307-200408
LEATHER SEAT,STONE,TRIM1#
main71073-YC570-E0i200208-200301
LEATHER SEAT,FAWN,TRIM4#
main71073-YC570-E1i200301-200606
LEATHER SEAT,FAWN,TRIM4#
main71073-YC570-E2i200307-200408
LEATHER SEAT,FAWN,TRIM4#
main71073-YC580-B0i200208-200301
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC580-B1i200301-200606
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC580-B2i200307-200408
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC580-E0i200208-200301
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC580-E1i200301-200606
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC580-E2i200307-200408
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC590-B0i200208-200301
LEATHER SEAT,STONE,TRIM15
main71073-YC590-B1i200301-200307
LEATHER SEAT,STONE,TRIM15
main71073-YC590-B2i200307-200408
STONE,TRIM15
main71073-YC590-E0i200208-200301
LEATHER SEAT,FAWN,TRIM16
main71073-YC590-E1i200301-200307
LEATHER SEAT,FAWN,TRIM16
main71073-YC590-E2i200307-200408
FAWN,TRIM16
main71073-YC600-B0i200208-200408
STONE,TRIM1#
main71073-YC600-E0i200208-200408
FAWN,TRIM4#
main71073-YC610-B0i200208-200408
GREY,TRIM1#
main71073-YC620-B0i200408-200606
STONE,TRIM1#
main71073-YC620-E0i200408-200606
FAWN,TRIM4#
main71073-YC630-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC630-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC640-B0i200408-200606
STONE,TRIM1#
main71073-YC640-E0i200408-200606
FAWN,TRIM4#
main71073-YC650-B0i200408-200606
STONE,TRIM1#
main71073-YC650-E0i200408-200606
FAWN,TRIM4#
main71073-YC660-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC660-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC680-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC680-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC690-B0i200408-200606
DK.GRAY,TRIM1#
main71073-YC700-B0i200408-200606
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71073-YC710-B0i200408-200606
LEATHER SEAT,STONE,TRIM15
main71073-YC710-E0i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71073-YC720-B0i200408-200606
DK.GRAY,TRIM1#
main71073-YC730-B0i200408-200606
STONE,TRIM1#
main71073-YC730-E0i200408-200606
FAWN,TRIM4#
main71073-YC740-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-YC740-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-YC750-B0i200507-200606
*80(DRIVER SIDE & PASSENGER SIDE);DECONTENT PACKAGE,DK.GRAY,TRIM1#
main71073-YC760-B0i200507-200606
DECONTENT PACKAGE,DK.GRAY,TRIM1#
main71074-YC330-B1i200208-200408
STONE,TRIM1#
main71074-YC330-E1i200208-200408
FAWN,TRIM4#
main71074-YC450-B0i200408-200606
STONE,TRIM1#
main71074-YC450-E0i200408-200606
FAWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-YC430-B0i200208-200301
STONE,TRIM1#
main71073-YC430-B1i200301-200307
STONE,TRIM1#
main71073-YC430-B2i200307-200408
STONE,TRIM1#
main71073-YC430-E1i200208-200301
FAWN,TRIM4#
main71073-YC430-E2i200301-200307
FAWN,TRIM4#
main71073-YC430-E3i200307-200408
FAWN,TRIM4#
main71073-YC550-B0i200208-200307
STONE,TRIM1#
main71073-YC550-B1i200307-200408
STONE,TRIM1#
main71073-YC550-E0i200208-200307
FAWN,TRIM4#
main71073-YC550-E1i200307-200408
FAWN,TRIM4#
main71073-YC600-B0i200208-200408
STONE,TRIM1#
main71073-YC600-E0i200208-200408
FAWN,TRIM4#
main71073-YC640-B0i200408-200606
STONE,TRIM1#
main71073-YC640-E0i200408-200606
FAWN,TRIM4#
main71073-YC730-B0i200408-200606
STONE,TRIM1#
main71073-YC730-E0i200408-200606
FAWN,TRIM4#
main71074-YC320-B0i200208-200301
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC320-B1i200301-200307
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC320-B2i200307-200408
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC320-E1i200208-200301
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC320-E2i200301-200307
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC320-E3i200307-200408
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC330-B1i200208-200408
STONE,TRIM1#
main71074-YC330-E1i200208-200408
FAWN,TRIM4#
main71074-YC340-B1i200208-200408
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC340-E1i200208-200408
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC350-B0i200208-200408
GREY,TRIM1#
main71074-YC360-B0i200208-200408
W(SRS SIDE AIR BAG),GREY,TRIM1#
main71074-YC370-B0i200208-200408
STONE,TRIM1#
main71074-YC370-E0i200208-200408
FAWN,TRIM4#
main71074-YC380-B0i200208-200408
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC380-E0i200208-200408
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC390-B0i200208-200301
LEATHER SEAT,STONE,TRIM1#
main71074-YC390-B1i200301-200606
LEATHER SEAT,STONE,TRIM1#
main71074-YC390-B2i200307-200408
LEATHER SEAT,STONE,TRIM1#
main71074-YC390-E0i200208-200301
LEATHER SEAT,FAWN,TRIM4#
main71074-YC390-E1i200301-200606
LEATHER SEAT,FAWN,TRIM4#
main71074-YC390-E2i200307-200408
LEATHER SEAT,FAWN,TRIM4#
main71074-YC400-B0i200208-200301
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC400-B1i200301-200606
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC400-B2i200307-200408
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC400-E0i200208-200301
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC400-E1i200301-200606
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC400-E2i200307-200408
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC410-B0i200208-200301
LEATHER SEAT,STONE,TRIM15
main71074-YC410-B1i200301-200307
LEATHER SEAT,STONE,TRIM15
main71074-YC410-B2i200307-200408
STONE,TRIM15
main71074-YC410-E0i200208-200301
LEATHER SEAT,FAWN,TRIM16
main71074-YC410-E1i200301-200307
LEATHER SEAT,FAWN,TRIM16
main71074-YC410-E2i200307-200408
FAWN,TRIM16
main71074-YC420-B0i200208-200408
GREY,TRIM1#
main71074-YC430-B1i200408-200606
STONE,TRIM1#
main71074-YC430-E1i200408-200606
FAWN,TRIM4#
main71074-YC440-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC440-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC450-B0i200408-200606
STONE,TRIM1#
main71074-YC450-E0i200408-200606
FAWN,TRIM4#
main71074-YC460-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC460-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC480-B0i200408-200606
DK.GRAY,TRIM1#
main71074-YC490-B0i200408-200606
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-YC500-B0i200408-200606
LEATHER SEAT,STONE,TRIM15
main71074-YC500-E0i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71074-YC510-B0i200408-200606
DK.GRAY,TRIM1#
main71074-YC520-B0i200408-200606
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC520-E0i200408-200606
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC530-B0i200408-200606
STONE,TRIM1#
main71074-YC530-E0i200408-200606
FAWN,TRIM4#
main71074-YC540-B0i200408-200606
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-YC540-E0i200408-200606
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-YC560-B0i200507-200606
*80(DRIVER SIDE & PASSENGER SIDE);DECONTENT PACKAGE,DK.GRAY,TRIM1#
main71074-YC570-B0i200507-200606
DECONTENT PACKAGE,DK.GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-YC550-B0i200208-200301
STONE,TRIM1#
main71430-YC550-B1i200301-200307
STONE,TRIM1#
main71430-YC550-B2i200307-200408
STONE,TRIM1#
main71430-YC550-E1i200208-200301
FAWN,TRIM4#
main71430-YC550-E2i200301-200307
FAWN,TRIM4#
main71430-YC550-E3i200307-200408
FAWN,TRIM4#
main71430-YC570-B1i200208-200307
STONE,TRIM1#
main71430-YC570-B2i200307-200408
STONE,TRIM1#
main71430-YC570-E1i200208-200307
FAWN,TRIM4#
main71430-YC570-E2i200307-200408
FAWN,TRIM4#
main71430-YC590-B0i200208-200301
STONE,TRIM1#
main71430-YC590-B1i200301-200408
STONE,TRIM1#
main71430-YC610-B0i200408-200606
STONE,TRIM1#
main71430-YC610-E0i200408-200606
FAWN,TRIM4#
main71430-YC620-B0i200208-200307
STONE,TRIM1#
main71430-YC620-B1i200307-200408
STONE,TRIM1#
main71430-YC620-E0i200208-200307
FAWN,TRIM4#
main71430-YC620-E1i200307-200408
FAWN,TRIM4#
main71430-YC640-B0i200208-200301
LEATHER SEAT,STONE,TRIM1#
main71430-YC640-B1i200301-200606
LEATHER SEAT,STONE,TRIM1#
main71430-YC640-B2i200307-200408
LEATHER SEAT,STONE,TRIM1#
main71430-YC640-E1i200208-200301
LEATHER SEAT,FAWN,TRIM4#
main71430-YC640-E2i200301-200606
LEATHER SEAT,FAWN,TRIM4#
main71430-YC640-E3i200307-200408
LEATHER SEAT,FAWN,TRIM4#
main71430-YC650-B0i200208-200301
LEATHER SEAT,STONE-DK GRAY,TRIM15
main71430-YC650-B2i200208-200301
LEATHER SEAT,FAWN-DK GRAY,TRIM16
main71430-YC650-B3i200301-200307
LEATHER SEAT,STONE-DK GRAY,TRIM15
main71430-YC650-B4i200301-200307
LEATHER SEAT,FAWN-DK GRAY,TRIM16
main71430-YC650-B5i200307-200408
STONE-DK GRAY,TRIM15
main71430-YC650-B6i200307-200408
FAWN-DK GRAY,TRIM16
main71430-YC670-B0i200208-200301
STONE-DK GRAY,TRIM1#
main71430-YC670-B1i200301-200408
STONE-DK GRAY,TRIM1#
main71430-YC700-B0i200408-200606
STONE,TRIM1#
main71430-YC700-E0i200408-200606
FAWN,TRIM4#
main71430-YC720-B0i200408-200606
DK GRAY,TRIM1#
main71430-YC730-B0i200408-200606
LEATHER SEAT,STONE,TRIM15
main71430-YC730-B1i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71430-YC740-B0i200408-200606
DK GRAY,TRIM1#
main71430-YC770-B0i200408-200606
STONE,TRIM1#
main71430-YC770-E0i200408-200606
FAWN,TRIM4#
main71430-YC780-B0i200408-200606
STONE,TRIM1#
main71430-YC780-E0i200408-200606
FAWN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-YC360-B0i200208-200301
STONE,TRIM1#
main71440-YC360-B1i200301-200307
STONE,TRIM1#
main71440-YC360-B2i200307-200408
STONE,TRIM1#
main71440-YC360-E1i200208-200301
FAWN,TRIM4#
main71440-YC360-E2i200301-200307
FAWN,TRIM4#
main71440-YC360-E3i200307-200408
FAWN,TRIM4#
main71440-YC400-B1i200208-200307
STONE,TRIM1#
main71440-YC400-B2i200307-200408
STONE,TRIM1#
main71440-YC400-E1i200208-200307
FAWN,TRIM4#
main71440-YC400-E2i200307-200408
FAWN,TRIM4#
main71440-YC420-B0i200208-200301
STONE,TRIM1#
main71440-YC420-B1i200301-200408
STONE,TRIM1#
main71440-YC440-B0i200208-200307
STONE,TRIM1#
main71440-YC440-B1i200307-200408
STONE,TRIM1#
main71440-YC440-E0i200208-200307
FAWN,TRIM4#
main71440-YC440-E1i200307-200408
FAWN,TRIM4#
main71440-YC460-B0i200408-200606
STONE,TRIM1#
main71440-YC460-E0i200408-200606
FAWN,TRIM4#
main71440-YC490-B0i200408-200606
STONE,TRIM1#
main71440-YC490-E0i200408-200606
FAWN,TRIM4#
main71440-YC500-B0i200408-200606
STONE,TRIM1#
main71440-YC500-E0i200408-200606
FAWN,TRIM4#
main71440-YC530-B0i200208-200301
LEATHER SEAT,STONE,TRIM1#
main71440-YC530-B1i200301-200606
LEATHER SEAT,STONE,TRIM1#
main71440-YC530-B2i200307-200408
LEATHER SEAT,STONE,TRIM1#
main71440-YC530-E1i200208-200301
LEATHER SEAT,FAWN,TRIM4#
main71440-YC530-E2i200301-200606
LEATHER SEAT,FAWN,TRIM4#
main71440-YC530-E3i200307-200408
LEATHER SEAT,FAWN,TRIM4#
main71440-YC540-B0i200208-200301
LEATHER SEAT,STONE-DK GRAY,TRIM15
main71440-YC540-B2i200208-200301
LEATHER SEAT,FAWN-DK GRAY,TRIM16
main71440-YC540-B3i200301-200307
LEATHER,STONE-DK GRAY,TRIM15
main71440-YC540-B4i200301-200307
FAWN-DK GRAY,TRIM16
main71440-YC540-B5i200307-200408
STONE-DK GARY,TRIM15
main71440-YC540-B6i200307-200408
FAWN-DK GRAY,TRIM16
main71440-YC560-B0i200208-200301
STONE-DK GRAY,TRIM1#
main71440-YC560-B1i200301-200408
STONE-DK GRAY,TRIM1#
main71440-YC570-B0i200408-200606
STONE,TRIM1#
main71440-YC570-E0i200408-200606
FAWN,TRIM4#
main71440-YC590-B0i200408-200606
DK GRAY,TRIM1#
main71440-YC600-B0i200408-200606
LEATHER SEAT,STONE,TRIM15
main71440-YC600-B1i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71440-YC610-B0i200408-200606
DK GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-YC010i200208-200408
main71511-YC060i200208-200408
main71511-YC070i200208-200408
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-YC060i200208-200408
main71511-YC070i200208-200408
71537APROTECTOR, FRONT SEAT CUSHION
main71537-YC010i200301-200408
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-YC020i200208-200408
main71551-YC040i200208-200408
main71551-YC040i200507
*80(DRIVER SIDE & PASSENGER SIDE);DECONTENT PACKAGE
main71551-YC050i200507
DECONTENT PACKAGE
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-YC020i200208-200408
main71551-YC040i200208-200408
main71551-YC040i200507
*80(DRIVER SIDE & PASSENGER SIDE);DECONTENT PACKAGE
main71552-YC020i200507
DECONTENT PACKAGE
71831BCOVER, FRONT SEAT HINGE, RH
main71831-33021i200208-200409
main71831-YC020i200410-200606
71831DCOVER, FRONT SEAT HINGE, RH
main71831-33021i200208-200409
main71831-YC020i200410-200601
71832BCOVER, FRONT SEAT HINGE, LH
main71832-33021i200208-200409
main71832-YC020i200410-200606
71832DCOVER, FRONT SEAT HINGE, LH
main71832-33021i200208-200409
main71832-YC020i200410-200601
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-33020-B1i200208-200606
STONE,TRIM1#
sub71861-33020
main71861-33020-B1i200208-200408
LEATHER SEAT,STONE,TRIM15
sub71861-33020
main71861-33020-B1i200408-200606
STONE,TRIM15
sub71861-33020
main71861-33020-B2i200408-200606
DK.GRAY,TRIM1#
sub71861-33020
main71861-33020-B2i200408-200606
DK.GRAY,TRIM12
sub71861-33020
main71861-33020-E1i200208-200408
LEATHER SEAT,FAWN,TRIM16
sub71861-33020
main71861-33020-E1i200208-200606
FAWN,TRIM4#
sub71861-33020
main71861-33020-E1i200408-200606
FAWN,TRIM16
sub71861-33020
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-33030-B1i200208-200606
STONE,TRIM1#
sub71862-33030
main71862-33030-B1i200208-200408
LEATHER SEAT,STONE,TRIM15
sub71862-33030
main71862-33030-B1i200408-200606
STONE,TRIM15
sub71862-33030
main71862-33030-B2i200408-200606
DK.GRAY,TRIM1#
sub71862-33030
main71862-33030-E1i200208-200606
FAWN,TRIM4#
sub71862-33030
main71862-33030-E1i200208-200408
LEATHER SEAT,FAWN,TRIM16
sub71862-33030
main71862-33030-E1i200408-200606
FAWN,TRIM16
sub71862-33030
71910AHEADREST ASSY, FRONT SEAT
main71910-YC280-B0i200208-200408
STONE,TRIM1#
main71910-YC280-E0i200208-200408
FAWN,TRIM4#
main71910-YC290-B0i200208-200408
STONE,TRIM1#
main71910-YC290-E0i200208-200408
FAWN,TRIM4#
main71910-YC300-B0i200208-200408
GREY,TRIM1#
main71910-YC310-B0i200208-200408
STONE,TRIM1#
main71910-YC310-E0i200208-200408
FAWN,TRIM4#
main71910-YC320-B0i200208-200408
LEATHER SEAT,STONE,TRIM15
main71910-YC320-B0i200208-200408
LEATHER SEAT,STONE,TRIM1#
main71910-YC320-B1i200408-200606
LEATHER SEAT,STONE,TRIM1#
main71910-YC320-B1i200408-200606
LEATHER SEAT,STONE,TRIM15
main71910-YC320-B2i200408-200606
LEATHER SEAT,FAWN,TRIM16
main71910-YC320-E0i200208-200408
LEATHER SEAT,FAWN,TRIM4#
main71910-YC320-E0i200208-200408
LEATHER SEAT,FAWN,TRIM16
main71910-YC320-E1i200408-200606
LEATHER SEAT,FAWN,TRIM4#
main71910-YC330-B0i200408-200606
STONE,TRIM1#
main71910-YC330-E0i200408-200606
FAWN,TRIM4#
main71910-YC340-B0i200208-200408
STONE,TRIM1#
main71910-YC340-E0i200208-200408
FAWN,TRIM4#
main71910-YC350-B0i200408-200606
STONE,TRIM1#
main71910-YC350-E0i200408-200606
FAWN,TRIM4#
main71910-YC360-B0i200408-200606
STONE,TRIM1#
main71910-YC360-E0i200408-200606
FAWN,TRIM4#
main71910-YC370-B0i200408-200606
DK GRAY,TRIM1#
main71910-YC370-B0i200507-200606
DECONTENT PACKAGE,DK GRAY,TRIM1#
main71910-YC380-B0i200408-200606
DK GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-32020-L1i200208-200606
W(LOCK),FAWN,TRIM4#
sub71930-32020
main71930-32020-L1i200208-200606
W(LOCK),FAWN,TRIM16
sub71930-32020
main71930-32020-P3i200208-200606
W(LOCK),STONE,TRIM15
sub71930-32020
main71930-32020-P3i200208-200606
W(LOCK),STONE,TRIM1#
sub71930-32020
main71930-32020-P4i200408-200606
W(LOCK),DK.GRAY,TRIM12
sub71930-32020
main71930-32020-P4i200408-200606
W(LOCK),DK.GRAY,TRIM1#
sub71930-32020
main71931-32020-L2i200208-200606
W/O(LOCK),FAWN,TRIM16
sub71931-32020
main71931-32020-L2i200208-200606
W/O(LOCK),FAWN,TRIM4#
sub71931-32020
main71931-32020-P8i200208-200606
W/O(LOCK),STONE,TRIM1#
sub71931-32020
main71931-32020-P8i200208-200606
W/O(LOCK),STONE,TRIM15
sub71931-32020
main71931-32020-S0i200408-200606
W/O(LOCK),DK.GRAY,TRIM12
sub71931-32020
main71931-32020-S0i200408-200606
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-32020
72583ABRACKET, SEAT SIDE GARNISH, RH
main72583-33020i200208-200601
72584ABRACKET, SEAT SIDE GARNISH, LH
main72584-33010i200208-200408
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-YC010i200208-200601
sub72750-33020
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-YC010i200208-200601
72791LEVER, LUMBAR SUPPORT
main72791-YC010-B1i200208-200606
STONE,TRIM1#
main72791-YC010-B1i200208-200606
STONE,TRIM15
main72791-YC010-B2i200408-200606
DK.GRAY,TRIM12
main72791-YC010-B2i200408-200606
DK.GRAY,TRIM1#
main72791-YC010-E1i200208-200606
FAWN,TRIM4#
main72791-YC010-E1i200208-200606
FAWN,TRIM16
82817YC050PROTECTOR, WIRING HARNESS, NO.1
main82817-YC050
9008946005
main90089-46005
9008952009
main90089-52009
9016740044
main90167-40044

32 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
