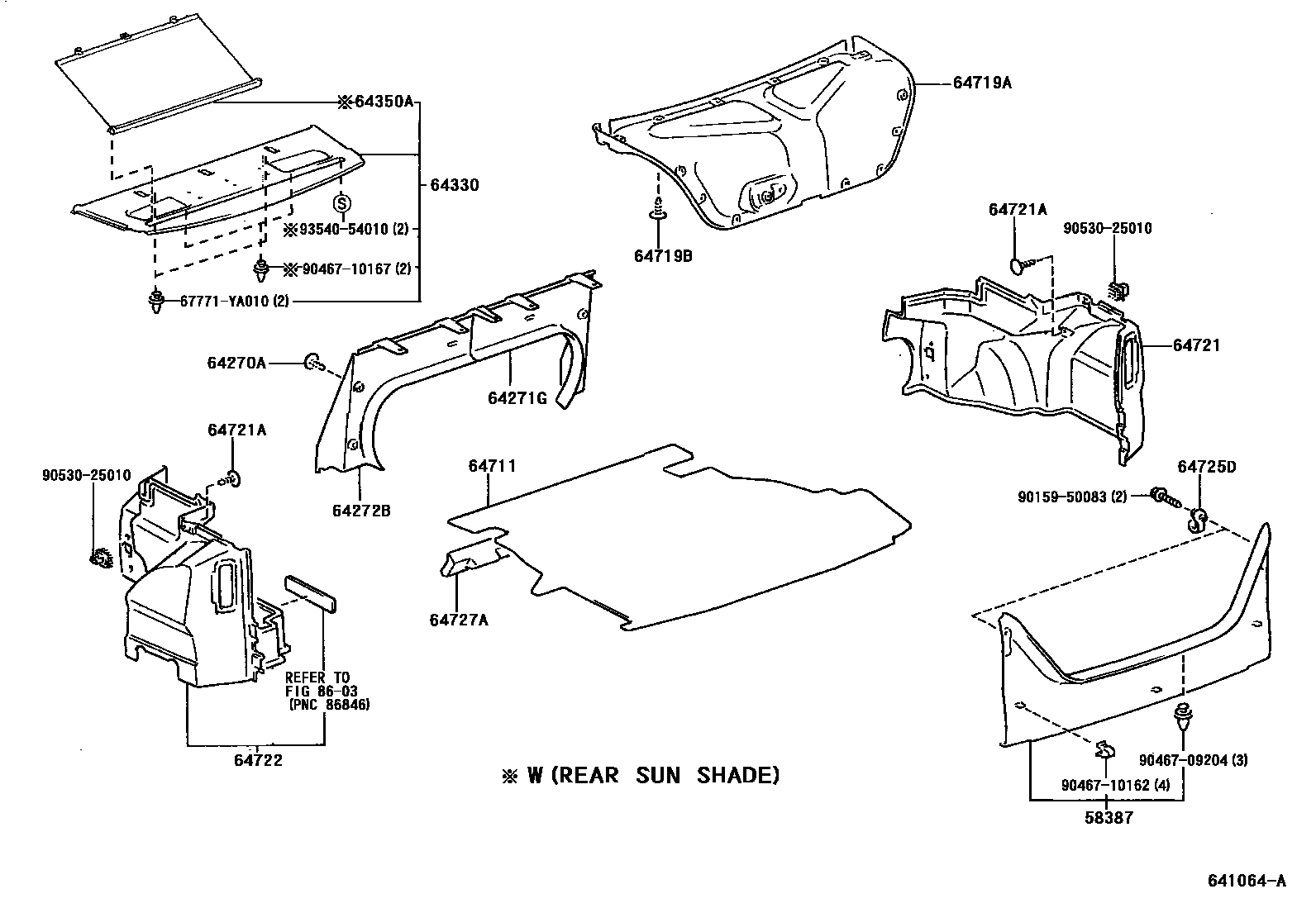

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-YC060iMCV36..MTM..ARL200208-200601

sub58387-AA020

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM1#

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM1#,4#

sub90467-08186

main90467-08186-C0iACV36..SPV;MCV36..ATM..ALTS;MCV36..MTM..(ALTS,SPV)200208-200408

BLACK,TRIM15,16

sub90467-08186

main90467-08186-C0iACV36,MCV36200408-200606

BLACK

sub90467-08186

64271GBOARD, ROOM PARTITION, RH

main64271-YC020iACV36,MCV36200208-200601

64272BBOARD, ROOM PARTITION, LH

main64272-YC020iACV36;MCV36..ATM;MCV36..MTM..GCC200208-200601

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-YC120-B0iACV36,MCV36..ALTS,GD,GLI,SPV,TOU200208-200606

STONE,TRIM1#

main64330-YC120-B1iACV36,MCV36..SPV200408-200606

DK.GRAY,TRIM1#

main64330-YC120-E0iACV36,MCV36..GD,GLI,TOU200208-200606

FAWN,TRIM4#

main64330-YC130-B0iMCV36..GD..GCC;ACV36,MCV36..ALT,ATEVA,GLI,TOU,XLI200208-200606

W(HIGH MOUNT STOP LAMP),STONE,TRIM1#

main64330-YC130-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

W(HIGH MOUNT STOP LAMP),FAWN,TRIM4#

main64330-YC140-B0iACV36,MCV36..GD,GLI,TOU200208-200606

STONE,TRIM15

main64330-YC140-B0iACV36,MCV36..GD,GLI,TOU200208-200606

W(REAR SUN SHADE),STONE,TRIM1#

main64330-YC140-E0iMCV36..ATM..SPV200208-200606

FAWN,TRIM16

main64330-YC140-E0iMCV36..ATM..SPV200208-200606

W(REAR SUN SHADE),FAWN,TRIM4#

main64330-YC150-B0iACV36,MCV36..GD,GLI,TOU,XLI200208-200606

W(HIGH MOUNT STOP LAMP & REAR SUN SHADE),STONE,TRIM1#

main64330-YC150-E0iACV36,MCV36..GD,GLI,TOU,XLI200208-200606

W(HIGH MOUNT STOP LAMP & REAR SUN SHADE),FAWN,TRIM4#

64350ASHADE ASSY, REAR WINDOW

main64350-33010iACV36..GCC;MCV36..MTM..GCC;MCV36..ATM..(GD,SPV,TOU)200208-200408

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-YC050-C0iACV36..SPV;MCV36..ATM..ALTS;MCV36..MTM..(ALTS,SPV)200208-200606

BLACK,TRIM1#,4#

main64711-YC050-C0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200408

BLACK,TRIM15,16

main64711-YC050-C0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200606

BLACK,TRIM1#

main64711-YC050-C0iMCV36..ATM..SPV200408-200606

BLACK,TRIM12,15,16

main64711-YC060-C0iACV36,MCV36..ALT,ATEVA200208-200408

W(NAVIGATION SYSTEM),BLACK,TRIM15,16

main64711-YC060-C0iMCV36..ATM..SPV200208-200606

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

main64711-YC060-C0iMCV36..ATM..SPV200208-200606

W(NAVIGATION SYSTEM),BLACK,TRIM1#

main64711-YC060-C0iMCV36..ATM..SPV200408-200606

W(NAVIGATION SYSTEM),BLACK,TRIM12,15,16

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-YC020-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM15,16

main64719-YC020-C0iMCV36..ATM..SPV200208-200606

BLACK,TRIM1#

main64719-YC020-C0iMCV36..ATM..SPV200208-200606

BLACK,TRIM1#,4#

main64719-YC020-C0iMCV36..ATM..SPV200408-200606

BLACK,TRIM12,15,16

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM15,16

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM1#

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM1#,4#

sub90467-08186

main90467-08186-C0iACV36,MCV36..ATEVA,GD,GLI,SPV,TOU,XLI200408-200606

BLACK

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-YC040-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM15,16

main64721-YC040-C0iMCV36..ATM..SPV200208-200606

BLACK,TRIM1#

main64721-YC040-C0iMCV36..ATM..SPV200208-200606

BLACK,TRIM1#,4#

main64721-YC040-C0iMCV36..ATM..SPV200408-200606

BLACK,TRIM12,15,16

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200408

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM15,16

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM1#

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM1#,4#

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

W(NAVIGATION SYSTEM),BLACK,TRIM15,16

sub90467-08186

main90467-08186-C0iMCV36..ATM..SPV200208-200408

W(NAVIGATION SYSTEM),BLACK,TRIM1#

sub90467-08186

main90467-08186-C0iACV36,MCV36200408-200606

BLACK

sub90467-08186

main90467-08186-C0iACV36,MCV36200408-200606

W(NAVIGATION SYSTEM),BLACK

sub90467-08186

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-YC050-C0iMCV36..ATM..SPV200208-200408

BLACK,TRIM15,16

main64722-YC050-C0iMCV36..ATM..SPV200208-200606

BLACK,TRIM1#

main64722-YC050-C0iMCV36..ATM..SPV200208-200606

BLACK,TRIM1#,4#

main64722-YC050-C0iMCV36..ATM..SPV200408-200606

BLACK,TRIM12,15,16

main64722-YC060-C0iACV36..SPV;MCV36..ATM..ALTS;MCV36..MTM..(ALTS,SPV)200208-200606

W(NAVIGATION SYSTEM),BLACK,TRIM1#

main64722-YC060-C0iACV36,MCV36..(ALT,ATEVA,GD)..ARL200208-200606

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

main64722-YC060-C0iMCV36..ATM..SPV200408-200606

W(NAVIGATION SYSTEM),BLACK,TRIM12,15,16

main64722-YC060-C0iACV36,MCV36..ALT,ATEVA200208-200408

W(NAVIGATION SYSTEM),BLACK,TRIM15,16

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-YC030iACV36,MCV36200208-200601

sub64725-06020

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-YC010iACV36,MCV36200208-200406

sub64727-YC020

main64727-YC020iACV36,MCV36200407-200601

8603

67771YA010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-YA010

9015950083

main90159-50083

9046709204

main90467-09204

9046710162

main90467-10162

9046710167

main90467-10167

9053025010

main90530-25010

9354054010

main93540-54010

22 parts on this diagram · 1 diagram in section
