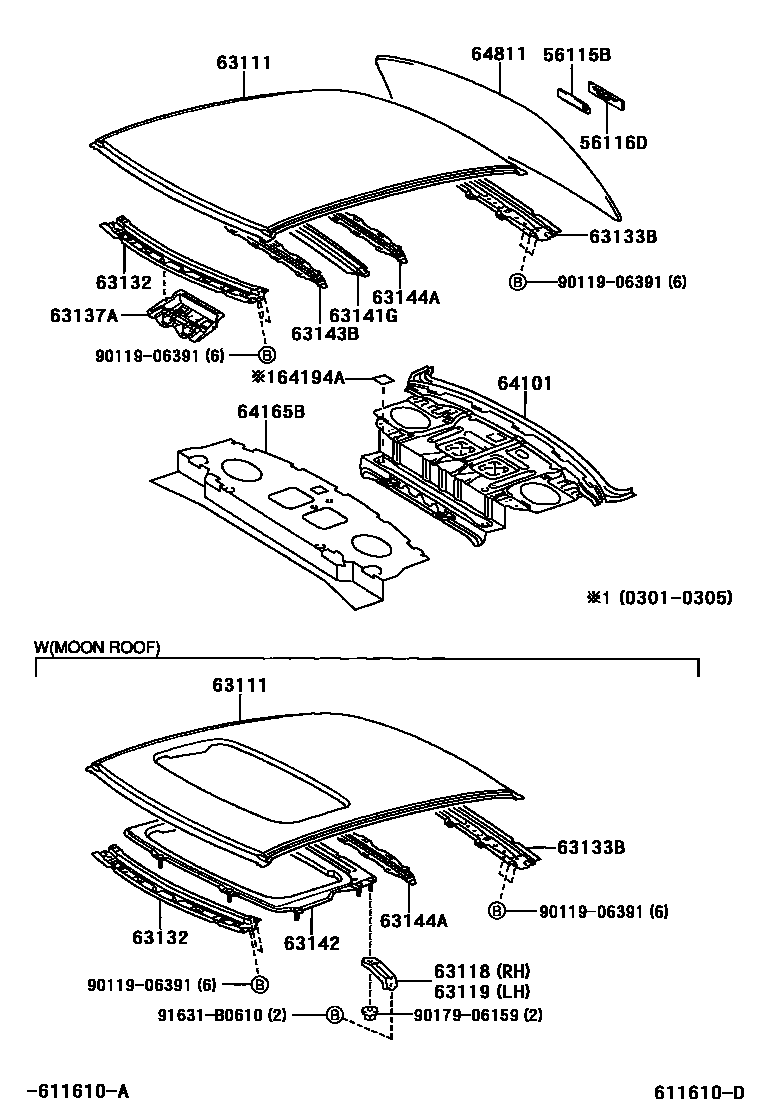

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100iMCV36..MTM..ARL200208-200601

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV36;MCV36..ATM;MCV36..MTM..GCC200208-200601

63111PANEL, ROOF

main63111-06280iACV36,MCV36200208-200408

sub63111-33190

main63111-06290iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

W(MOON ROOF)

sub63111-33200

63118SUPPORT, ROOF PANEL, RH

main63118-33010iACV36,MCV36..ATEVA,GD,GLI,SPV,TOU200208-200408

63119SUPPORT, ROOF PANEL, LH

main63118-33010iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

63132PANEL, WINDSHIELD HEADER, INNER

main63102-06100iACV36,MCV36200208-200408

63133BFRAME, BACK WINDOW

main63133-06030iACV36,MCV36200208-200408

63137ABRACKET, DOME LAMP, NO.1

main63137-06020iACV36,MCV36..ATEVA,GD,GLI,SPV,TOU,XLI200208-200408

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-06030iACV36,MCV36200208-200408

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33040iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU200208-200408

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-06020iACV36,MCV36200208-200408

sub63143-33050

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06030iMCV36..GD..GCC;ACV36,MCV36..ALT,ATEVA,GLI,SPV,TOU,XLI200208-200408

sub63144-33070

main63144-33080iACV36,MCV36..ATEVA,GD,GLI,SPV,TOU200208-200408

W(MOON ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-06110iACV36,MCV36200208-200606

main64101-06140iMCV36..ATM..(GD,SPV)..ARL200408-200606

W(MAYDAY SYSTEM)

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-YC010iACV36,MCV36200208-200601

64194APAD, BACK PANEL SILENCER, UPPER

main64194-YC010iACV36,MCV36200301-200305

64811GLASS, BACK WINDOW

main64811-YC060iACV36,MCV36..ARL200208-200601

*EHTT,T=3.5,GREEN

main64811-YC070iACV36,MCV36..GCC200208-200408

*EHTT,T=3.5,GREEN

sub64811-YC060

9011906391

main90119-06391

9017906159

main90179-06159

91631B0610

main91631-B0610

19 parts on this diagram · 3 diagrams in section
