SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iACV36,MCV36¥280200208-200408

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iACV36,MCV36¥280200208-200408

5701

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-33010iACV36,MCV36¥670200208-200408

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-YC010iACV36,MCV36200208-200601

58748APROTECTOR, QUARTER PANEL, REAR LH

main58748-YC010iMCV36..MTM..ARL200208-200601

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06060iACV36,MCV36..ARL200208-200606

main61101-06070iACV36,MCV36..GCC200208-200606

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-06080iACV36,MCV36..ARL200208-200606

main61102-06090iACV36,MCV36..GCC200208-200606

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-06030iACV36,MCV36..ARL200208-200408

main61108-06040iACV36,MCV36..GCC200208-200408

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-06030iACV36,MCV36..ARL200208-200408

main61109-06040iACV36,MCV36..GCC200208-200408

61117CGUSSET, SIDE PANEL TO COWL, RH

main61117-YC010iACV36,MCV36200208-200601

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06040iACV36,MCV36200208-200408

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-06040iACV36,MCV36200208-200408

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-06020iACV36,MCV36200208-200408

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-06020iACV36,MCV36200208-200408

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-33010iACV36,MCV36..GCC¥2,270200208-200408

61182CBRACKET, INSTRUMENT SIDE, LH

main61182-33020iACV36,MCV36..ARL200208-200408

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-06030iACV36,MCV36..ARL200208-200606

main61203-06040iACV36,MCV36..(ATEVA,GD,SPV)..ARL200208-200606

W(MOON ROOF)

main61203-06050iACV36,MCV36..GCC200208-200606

main61203-06060iACV36,MCV36..GD,GLI,TOU200208-200606

W(MOON ROOF)

sub61203-33020¥8,600

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-06030iACV36,MCV36..ALT,ATEVA,SPV200208-200606

main61204-06040iACV36,MCV36..ALTS,ATEVA,SPV200208-200606

W(MOON ROOF)

sub61204-33010¥8,600

main61204-06050iACV36,MCV36..GCC200208-200606

main61204-06060iACV36,MCV36..(GD,GLI,TOU)..GCC200208-200606

W(MOON ROOF)

61211RAIL, ROOF SIDE, OUTER RH

main61211-06050iACV36,MCV36200208-200408

sub61211-33020¥11,100

61212RAIL, ROOF SIDE, OUTER LH

main61212-06050iACV36,MCV36200208-200408

sub61212-33020¥11,100

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-06030iACV36,MCV36200208-200408

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-06020iACV36,MCV36200208-200408

61235BBRACKET, ASSIST GRIP

main61235-33020iACV36,MCV36..ALTS,ATEVA,GD,GLI,SPV,TOU¥1,820200208-200408

W(MOON ROOF)

main61247-06010iMCV36..GD..GCC;ACV36,MCV36..ALT,ATEVA,GLI,SPV,TOU,XLI200208-200408

61236CBRACKET, ASSIST GRIP

main61235-33020iACV36,MCV36..ATEVA,GD,GLI,SPV,TOU¥1,820200208-200408

W(MOON ROOF)

main61247-06010iACV36,MCV36200208-200408

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61213-06020iACV36,MCV36200208-200408

(L)

sub61245-33010¥1,070

main61245-33010iACV36,MCV36¥1,070200208-200408

(J)

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-06010iACV36,MCV36200208-200408

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-06010iACV36,MCV36200208-200408

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-06020iACV36,MCV36200208-200408

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-06020iACV36,MCV36200208-200408

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-06020iACV36,MCV36200208-200606

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-06020iACV36,MCV36200208-200606

61311BPILLAR, CENTER BODY, OUTER RH

main61311-06020iACV36,MCV36200208-200408

61312BPILLAR, CENTER BODY, OUTER LH

main61312-06020iACV36,MCV36200208-200408

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-06020iACV36,MCV36200208-200408

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-06020iACV36,MCV36200208-200408

61611PANEL, QUARTER, RH

main61601-06060iACV36,MCV36..ARL200208-200408

main61601-06070iACV36,MCV36..GCC200208-200408

61612PANEL, QUARTER, LH

main61602-06070iACV36,MCV36200208-200408

61615FREINFORCEMENT, QUARTER PANEL, OUTER RH

main61615-06010iACV36,MCV36200208-200408

sub61615-33050¥2,750

61616EREINFORCEMENT, QUARTER PANEL, OUTER LH

main61616-06010iACV36,MCV36200208-200408

sub61616-33050¥2,750

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-33901iACV36,MCV36¥5,100200208-200312

sub61621-33904¥5,200

main61621-33904iACV36,MCV36¥5,200200312-200606

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-33901iACV36,MCV36¥5,100200208-200312

sub61622-33905¥5,200

main61622-33905iACV36,MCV36¥5,200200312-200606

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-06030iACV36,MCV36200208-200408

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-06030iACV36,MCV36200208-200408

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-06050iACV36,MCV36200208-200408

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-06050iACV36,MCV36200208-200408

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-06050iACV36;MCV36..ALT,ALTS,GD,TOU200208-200408

main61607-06060iACV36,MCV36200208-200408

W(ABS)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-06050iMCV36..GCC;ACV36..ALT,GLI,SPV,XLI200208-200408

main61608-06060iACV36,MCV36200208-200408

W(ABS)

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-06030iACV36,MCV36200208-200408

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-06030iACV36,MCV36200208-200408

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-06040iACV36,MCV36200208-200408

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-06040iACV36,MCV36200208-200408

61667CSEAL, QAURTER PANEL, NO.1

main61667-YC020iACV36;MCV36..ATM;MCV36..MTM..GCC200208-200601

61697DHOUSING, QUARTER PANEL END, RH

main61697-06030iACV36,MCV36200208-200307

(L)

sub61697-06031

main61697-06031iACV36,MCV36200307-200408

(L)

sub61697-33051¥4,280

main61697-33050iACV36,MCV36¥4,280200208-200312

(J)

sub61697-33051¥4,280

main61697-33051iACV36,MCV36¥4,280200312-200408

(J)

61698DHOUSING, QUARTER PANEL END, LH

main61698-06030iACV36,MCV36200208-200307

(L)

sub61698-06031

main61698-06031iACV36,MCV36200307-200408

(L)

sub61698-33051¥4,280

main61698-33050iACV36,MCV36¥4,280200208-200312

(J)

sub61698-33051¥4,280

main61698-33051iACV36,MCV36¥4,280200312-200408

(J)

61711PANEL, ROOF SIDE, OUTER RH

main61711-06040iACV36,MCV36200208-200408

61712PANEL, ROOF SIDE, OUTER LH

main61712-06040iACV36,MCV36200208-200408

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-06020iACV36,MCV36200208-200408

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-06020iACV36,MCV36200208-200408

61731BPANEL, ROOF SIDE, INNER RH

main61731-06070iACV36,MCV36200208-200408

61732BPANEL, ROOF SIDE, INNER LH

main61732-06060iACV36,MCV36200208-200408

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-06040iACV36,MCV36200208-200408

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-06040iACV36,MCV36200208-200408

61824PLATE, NOISE CONTROL, NO.1

main61824-33020iACV36,MCV36¥1,350200208-200601

61824CPAD, NOISE SHUTTER, NO.1

main61824-12040iACV36,MCV36¥220200208-200601

61825APLATE, NOISE CONTROL, NO.2

main61825-30020iACV36,MCV36¥640200208-200601

61826APLATE, NOISE CONTROL, NO.3

main61826-YC010iACV36,MCV36200208-200601

62939ASILENCER, QUARTER VENT

main62939-32030iACV36,MCV36¥520200208-200601

64116BREINFORCEMENT, UPPER BACK, RH

main64201-06050iACV36,MCV36200208-200408

64117BREINFORCEMENT, UPPER BACK, LH

main64202-06050iACV36,MCV36200208-200408

8271533550BRACKET,WIRING HARNESS CLAMP

main82715-33550¥370

9017908086

main90179-08086¥160

9018906157

main90189-06157¥80

9054111010

main90541-11010¥120

91641K0816

main91641-K0816¥130

91651B0822

main91651-B0822¥110

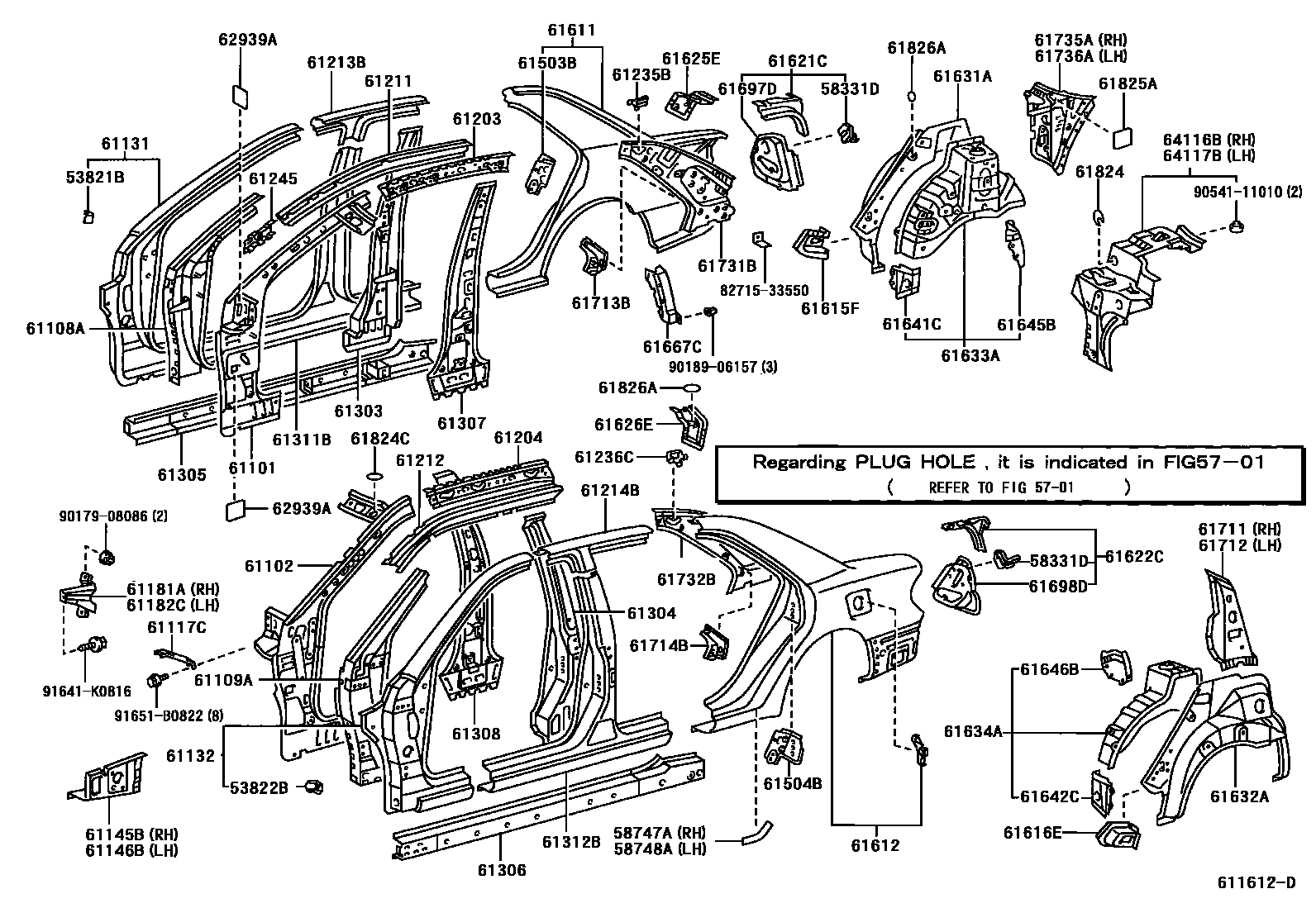

76 parts on this diagram · 1 diagram in section
