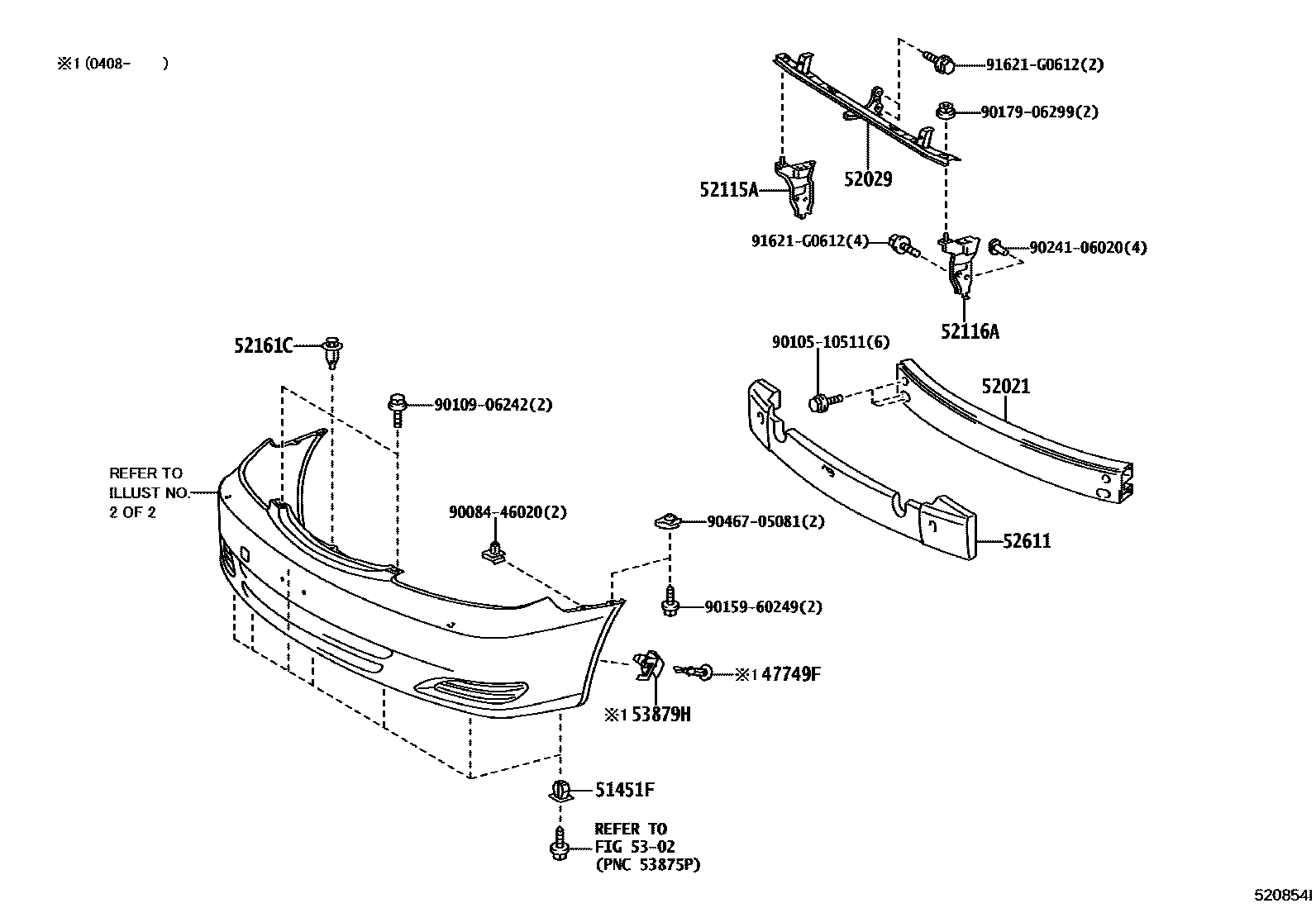

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-58010iACV36,MCV36200408-200606

51451FGROMMET, NO.1

main90189-06006iACV36,MCV36200208-200606

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-YC020iACV36,MCV36200208-200606

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-YC030iACV36,MCV36200208-200606

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-YC031iACV36,MCV36200208-200606

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-YC011iACV36,MCV36200208-200606

52161CPIECE, FRONT BUMPER

main52161-16010iACV36,MCV36200208-200606

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-YC020iACV36,MCV36200208-200408

main52611-YC030iACV36,MCV36200408-200606

5302

53879HRETAINER, FRONT FENDER LINER

main53879-58010iACV36,MCV36200408-200606

9008446020

main90084-46020

9010510511

main90105-10511

9010906242

main90109-06242

9015960249

main90159-60249

9017906299

main90179-06299

9024106020

main90241-06020

9046705081

main90467-05081

91621G0612

main91621-G0612

18 parts on this diagram · 2 diagrams in section
