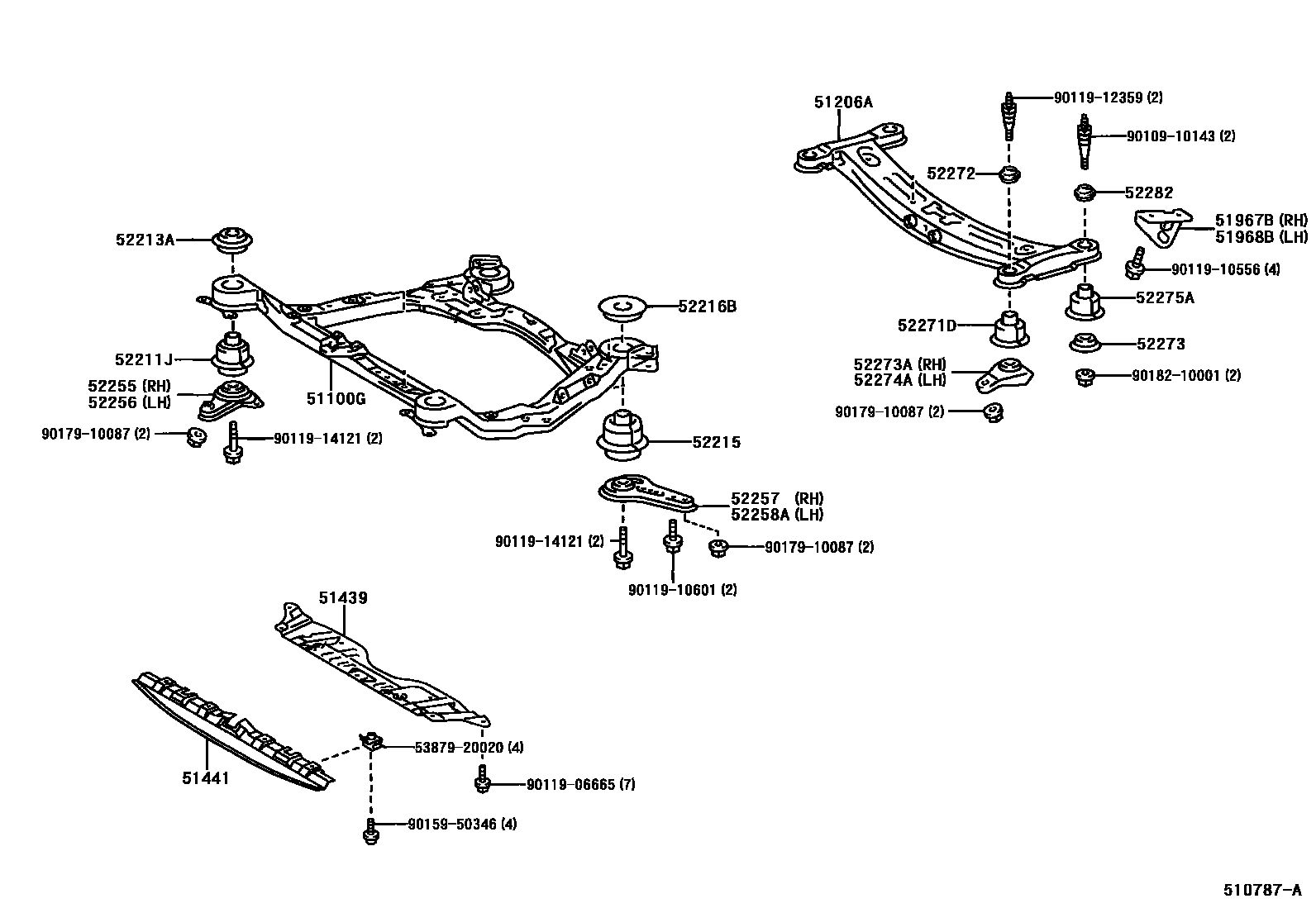

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-YC020iACV36200208-200512

sub51100-YC021

main51100-YC021iACV36200601

main51100-YC030iMCV36200208-200601

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-YC020iMCV36..MTM..ARL200208-200601

sub51206-33040¥28,800

51439PLATE, ENGINE REAR SIDE SHUTTER

main51439-YC010iACV36,MCV36200208-200601

sub51439-33020¥10,700

51441COVER, ENGINE UNDER, NO.1

main51441-YC020iMCV36..MTM..GCC;ACV36,MCV36..ATM200208-200310

sub51441-YC030

main51441-YC030iMCV36..MTM..GCC;ACV36,MCV36..ATM200310-200408

51967BHOOK, TRANSPORT, REAR RH

main51967-YC020iACV36,MCV36200208-200601

sub51967-33020¥2,330

51968BHOOK, TRANSPORT, REAR LH

main51968-YC010iACV36,MCV36200208-200601

sub51968-33010¥1,090

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06020iMCV36200208-200408

main52211-06060iACV36200208-200408

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06020iMCV36200208-200408

main52213-06060iACV36200208-200408

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06020iACV36,MCV36200208-200408

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06020iACV36,MCV36200208-200408

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-YC011iACV36,MCV36200208-200601

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-YC011iACV36,MCV36200208-200601

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-YC010iACV36,MCV36200208-200601

sub51023-33010¥3,940

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-YC010iACV36,MCV36200208-200601

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06020iACV36,MCV36200208-200408

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-06020iACV36,MCV36200208-200408

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-YC011iACV36,MCV36200208-200601

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-YC011iACV36,MCV36200208-200601

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-YC011iACV36,MCV36200208-200601

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06020iACV36,MCV36200208-200408

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06020iACV36,MCV36200208-200408

5387920020LINER, FRONT FENDER, LH

main53879-20020¥280

9010910143

main90109-10143¥520

9011906665

main90119-06665¥160

9011910556

main90119-10556¥230

9011910601

main90119-10601¥90

9011912359

main90119-12359¥410

9011914121

main90119-14121¥590

9015950346

main90159-50346¥60

9017910087

main90179-10087¥110

9018210001

main90182-10001¥220

31 parts on this diagram · 1 diagram in section
