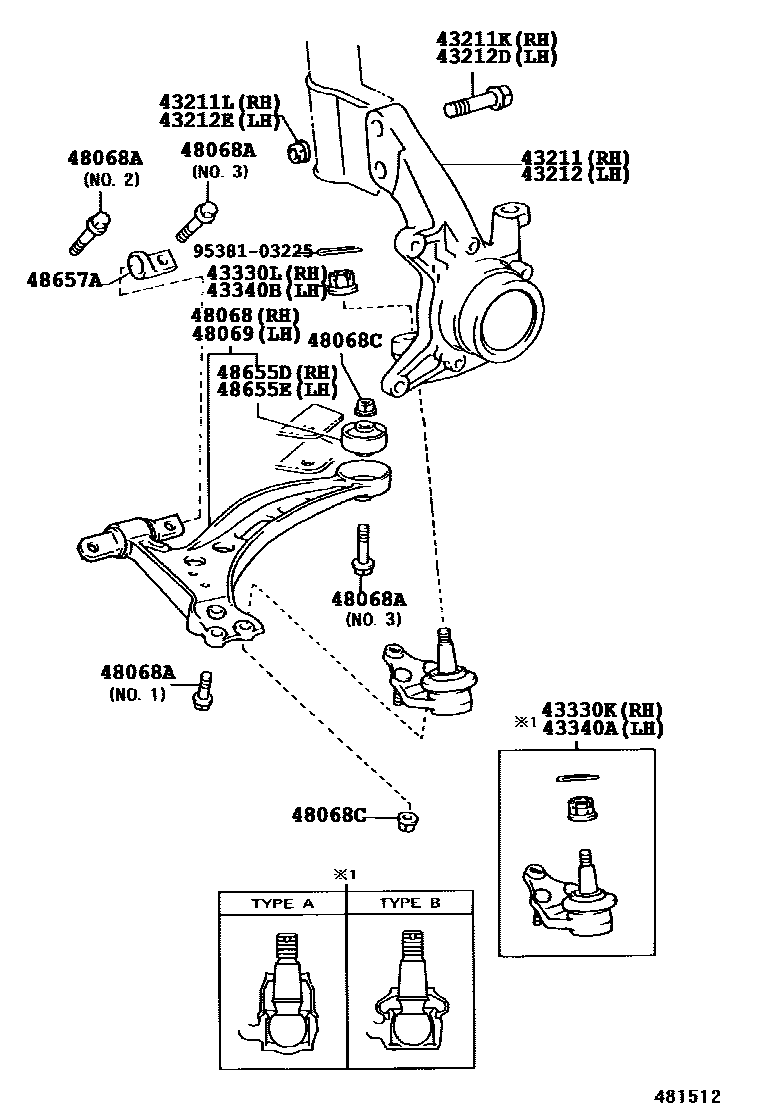

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W(ABS)
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=17,TYPE A:REFER ILLUST.
OD=17
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
W(ABS)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=17
OD=17,TYPE A:REFER ILLUST.
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
sub48068-07030
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
NO.1
NO.2
NO.3
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
BALL JOINT SIDE
BODY SIDE
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
sub48069-07030
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
48657ASTOPPER, FRONT LOWER ARM BUSH
sub48657-33020
9538103225
main95381-03225
18 parts on this diagram · 2 diagrams in section
