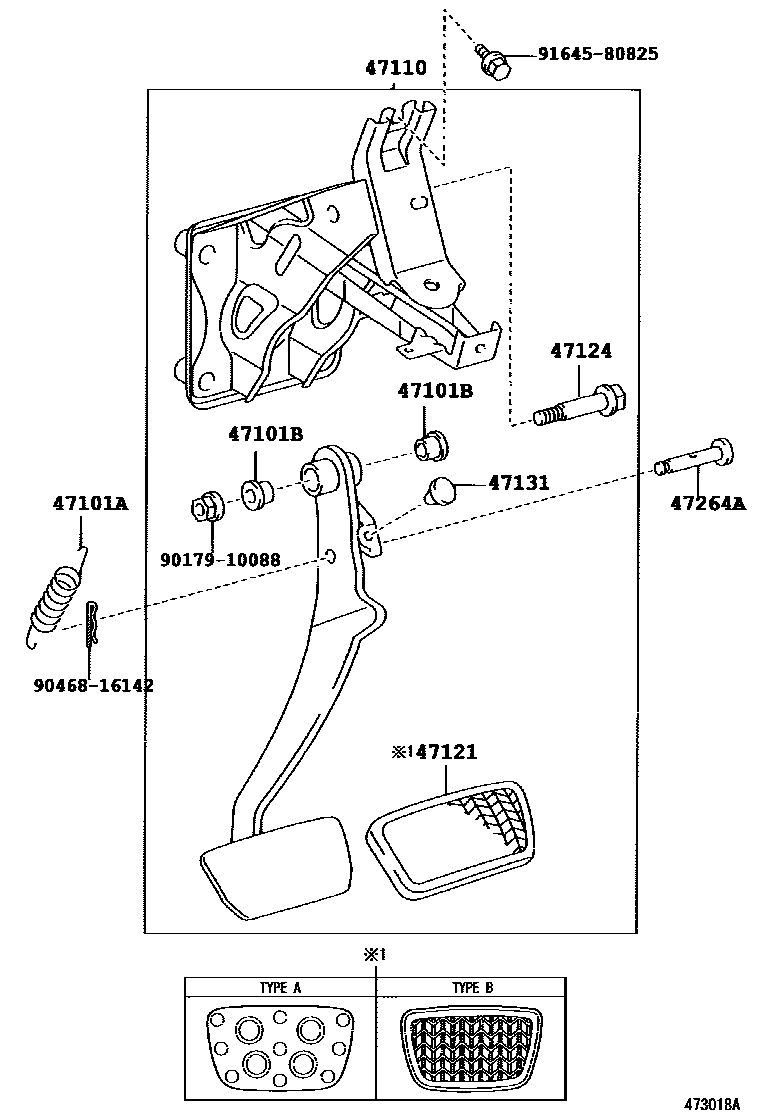

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14051iMCV36..MTM..ARL¥140200208-200601

47101BBUSH(FOR BRAKE PEDAL)

main90089-38004iACV36,MCV36200208-200601

sub90386-13015¥120

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06070iMCV36..ATM..SPV200501

PNC 47121 = TYPE B:REFER TO ILLUSTRATION

main47110-06070iACV36,MCV36..ATM..ARL200208-200408

main47110-06080iACV36..MTM..ALT200208-200601

main47110-06090iACV36,MCV36..ATM..GCC200208-200408

main47110-06100iACV36,MCV36..MTM..GCC200208-200408

main47110-06110iACV36..ATM..SPV200408

PNC 47121 =TYPE A:REFER TO ILLUSTRATION

main47110-06120iMCV36..MTM..SPV200408-200601

47121PAD, BRAKE PEDAL

main31321-52010iACV36,MCV36..MTM¥200200208-200601

main31321-53010iMCV36..MTM..SPV¥2,330200408-200601

main47121-50020iACV36,MCV36..ATM¥510200208-200408

main47121-50020iMCV36..ATM..SPV¥510200501

TYPE B:REFER TO ILLUSTRATION

main47121-53010iACV36..ATM..SPV¥3,330200408

TYPE A:REFER TO ILLUSTRATION

47124SHAFT, BRAKE PEDAL

main90109-10167iACV36,MCV36¥190200208-200601

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV36,MCV36¥110200208-200601

47264APIN(FOR PUSH ROD)

main47148-33020iACV36,MCV36¥390200208-200601

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9164580825

main91645-80825¥100

10 parts on this diagram · 1 diagram in section
