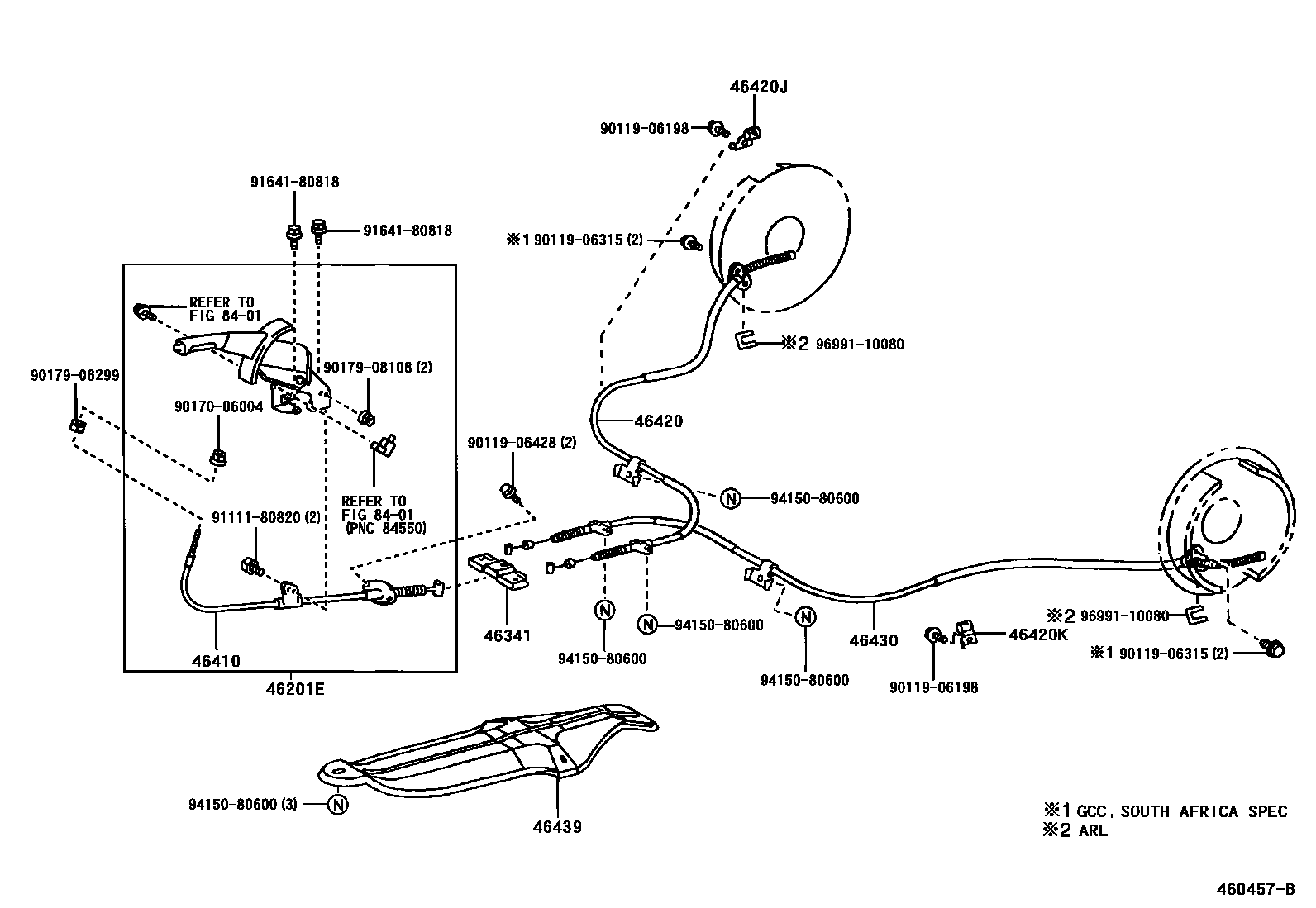

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1SOUTH AFRICA SPEC 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-06090-B0iACV36,MCV36..ALT,ALTS,ATEVA,GLI,TOU,XLI200208-200305

DK.CHARCOAL,TRIM1#

sub46201-06091

main46201-06090-E0iACV36,MCV36..ALT,ATEVA,GLI,TOU,XLI200208-200305

SANDAL WOOD,TRIM4#

sub46201-06091

main46201-06091-B0iMCV36..ATEVA200305-200606

DK.CHARCOAL,TRIM1#

main46201-06091-E0iMCV36..ATEVA200305-200606

SANDAL WOOD,TRIM4#

main46201-06100-B0iMCV36..GD200208-200305

DK.CHARCOAL,TRIM1#

sub46201-06101

main46201-06100-B1iACV36..SPV;MCV36..MTM..SPV200208-200305

DK.GRAY,TRIM15,16

sub46201-06101

main46201-06100-B1iACV36..SPV;MCV36..MTM..SPV200208-200305

DK.GRAY,TRIM1#

sub46201-06101

main46201-06100-E0iMCV36..GD200208-200305

SANDAL WOOD,TRIM4#

sub46201-06101

main46201-06101-B0iMCV36..ATEVA200305-200606

DK.CHARCOAL,TRIM1#

main46201-06101-B1iACV36..SPV;MCV36..MTM..SPV200305-200408

DK.GRAY,TRIM15,16

main46201-06101-B1iACV36..SPV;MCV36..MTM..SPV200305-200606

DK.GRAY,TRIM1#

main46201-06101-B1iMCV36..ATM..SPV200408-200606

DK.GRAY,TRIM12,15,16

main46201-06101-E0iMCV36..GD200305-200606

SANDAL WOOD,TRIM4#

46341EQUALIZER, PARKING BRAKE

main46341-06020iACV36,MCV36200208-200408

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06050iACV36,MCV36200208-200408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06070iACV36,MCV36..ARL200208-200606

main46420-33120iACV36,MCV36..GCC200208-200606

SOUTH AFRICA SPEC

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C61iACV36,MCV36200208-200408

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C62iACV36,MCV36200208-200408

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06070iACV36,MCV36..ARL200208-200606

main46430-33120iMCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200606

SOUTH AFRICA SPEC

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-YC010iACV36,MCV36200208-200408

8401

9011906198

main90119-06198

9011906315

main90119-06315

9011906428

main90119-06428

9017006004

main90170-06004

9017906299

main90179-06299

9017908108

main90179-08108

9111180820

main91111-80820

9164180818

main91641-80818

9415080600

main94150-80600

9699110080

main96991-10080

19 parts on this diagram · 4 diagrams in section
