FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

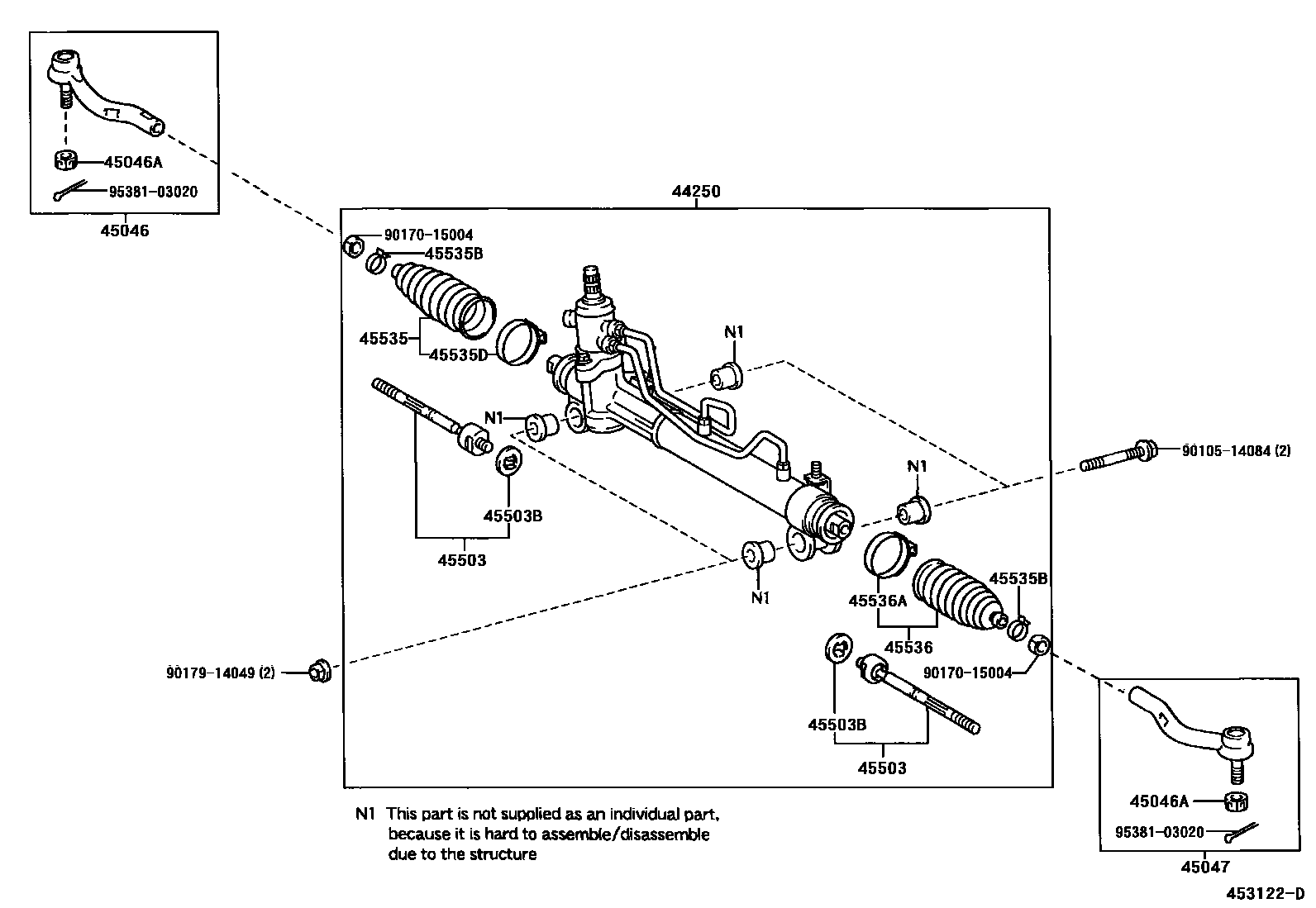

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06210iACV36,MCV36..ARL200208-200602

main44250-06211iACV36,MCV36..ARL200603

main44250-33410iACV36,MCV36..GCC200208-200308

sub44250-33411

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iACV36,MCV36200208-200606

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACV36,MCV36200208-200601

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iACV36,MCV36200208-200606

45503END SUB-ASSY, STEERING RACK

main45503-39135iACV36,MCV36200208-200606

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14002iACV36,MCV36200208-200602

OD=37

45535BOOT, STEERING RACK, NO.1

main45535-07010iACV36,MCV36..GCC200208-200606

(L)

main45535-09050iACV36,MCV36..ARL200208-200606

main45535-33020iACV36,MCV36..GCC200208-200606

(J)

45535BCLIP(FOR STEERING RACK BOOT)

main90069-48008iACV36,MCV36..ARL200208-200602

main90080-46153iACV36,MCV36..GCC200409

(L)

main90467-19021iACV36,MCV36..GCC200208-200409

main90467-19021iACV36,MCV36..GCC200409

(J)

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90069-48007iACV36,MCV36..ARL200208-200602

main90460-58006iACV36,MCV36..GCC200208-200408

45536BOOT, STEERING RACK, NO.2

main45535-07010iACV36,MCV36..GCC200208-200606

(L)

main45535-09050iACV36,MCV36..ARL200208-200606

main45535-33020iACV36,MCV36..GCC200208-200606

(J)

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90069-48007iACV36,MCV36..ARL200208-200602

main90460-58006iACV36,MCV36..GCC200208-200408

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020
