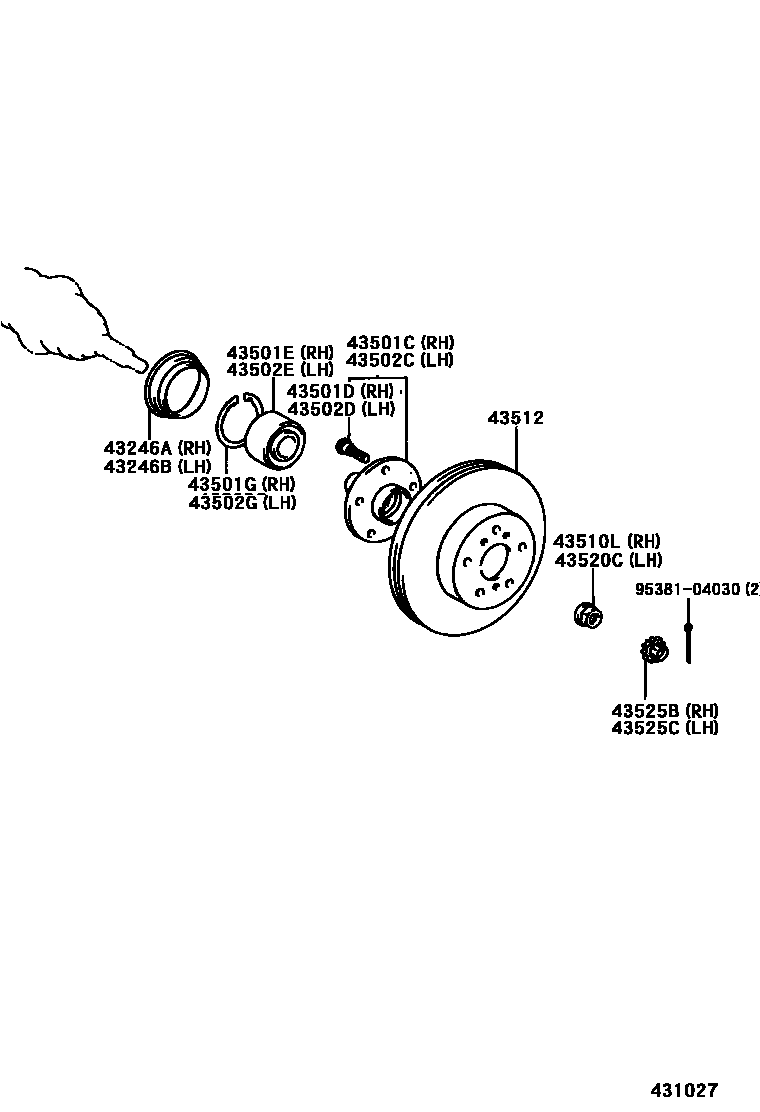

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-YC010iMCV36..ATEVA,SPV200208-200408

W(ABS)

main43246-YC020iACV36;MCV36..ALT,ALTS,GD,TOU200208-200408

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-YC010iMCV36..ARL;ACV36..ATEVA200208-200408

W(ABS)

main43246-YC020iACV36;MCV36..ALT,ALTS,GD,TOU200208-200408

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-YC010iMCV36200208-200408

sub43502-33030

main43502-YC020iACV36200208-200408

sub43502-32070

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90089-11034iACV36,MCV36200208-200408

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36177iACV36,MCV36200208-200408

(L)

main90369-43008iACV36,MCV36200208-200408

(J)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iACV36,MCV36200208-200606

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-YC010iMCV36200208-200408

sub43502-33030

main43502-YC020iACV36200208-200408

sub43502-32070

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90089-11034iACV36,MCV36200208-200408

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36177iACV36,MCV36200208-200408

(L)

main90369-43008iACV36,MCV36200208-200408

(J)

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iACV36,MCV36200208-200408

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iACV36,MCV36200208-200408

43512DISC, FRONT

main43512-06080iACV36,MCV36..ARL200208-200606

sub43512-33H01

main43512-33042iACV36,MCV36..GCC200208-200606

SOUTH AFRICA SPEC

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iACV36,MCV36200208-200408

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-YB010iACV36,MCV36200208-200408

sub43525-20030

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-YB010iACV36,MCV36200208-200408

sub43525-20030

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section
