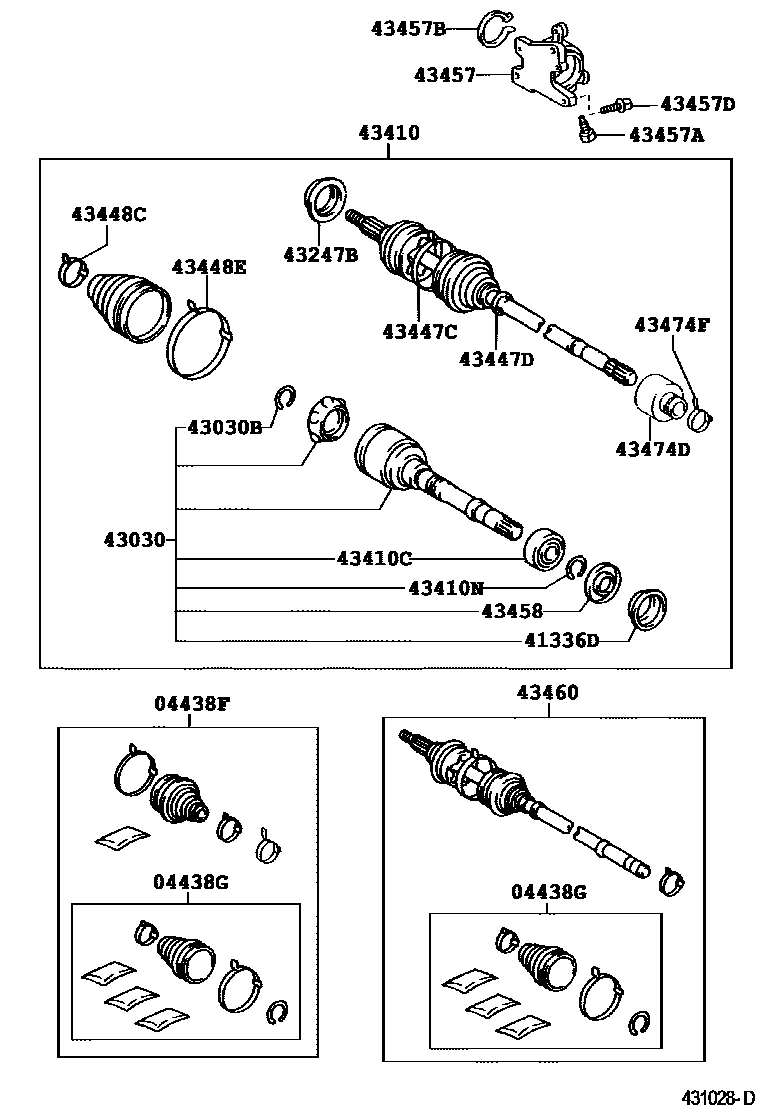

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0006 1LH 0009 1RH 0011 1LH 0013 1RH 0014 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06050iMCV36..MTM200408-200606

sub04428-06040

main04427-06110iACV36..MTM;ACV36..ATM..GCC200311-200408

sub04438-06280

main04427-06130iACV36..ATM..ARL200311-200408

sub04438-06290

main04427-06140iMCV36..ATM..(ALT,ALTS)200403-200408

sub04438-06260

main04427-06150iMCV36..ATM..GCC200402-200606

sub04428-06040

main04438-06250iMCV36..ATM..(ATEVA,SPV)200403-200408

W(ABS)

sub04438-06590

main04438-06260iACV36..MTM;MCV36..ATM..(ATEVA,SPV)200208-200311

W(ABS)

sub04428-06410

main04438-06280iACV36..MTM;ACV36..ATM..GCC200208-200311

W(ABS)

sub04428-06410

main04438-06280iACV36..MTM;ACV36..ATM..GCC;MCV36..ATM..ARL200408-200606

sub04428-06410

main04438-06290iACV36..ATM..ARL200208-200606

sub04428-06440

main04438-33090iMCV36..ATM..GCC200208-200402

sub04428-33060

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06040iMCV36..MTM200408-200606

sub04438-06460

main04437-06060iMCV36..ATM..ARL200311-200606

sub04438-06460

main04438-06250iACV36;MCV36..ATM..ARL200208-200606

sub04438-06590

main04438-33012iMCV36..MTM;MCV36..ATM..GCC200208-200311

sub04438-33013

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06070iACV36,MCV36200208-200408

sub41336-12020

main41336-12020iMCV36..ATM..GCC200208-200402

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-09020iACV36200208-200606

main43030-09040iMCV36..MTM200312-200606

main43030-09050iMCV36..ATM..ARL200208-200606

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-06020iACV36;MCV36..ATM..ARL200208-200408

main43425-06060iMCV36..ATM..GCC200402-200408

W(ABS)

main43425-06060iMCV36..MTM200312-200408

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06050iACV36;MCV36..ATM..ARL200208-200606

W(ABS)

main43247-06060iACV36;MCV36..ATM..(ALT,ALTS)200208-200606

main43247-12010iMCV36..MTM;MCV36..ATM..GCC200208-200311

W(ABS)

main43247-33010iMCV36..GCC;MCV36..MTM..(ALT,ALTS)200208-200311

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06380iMCV36..ATM..GCC200408

W(ABS)

main43410-06390iACV36..MTM;ACV36..ATM..GCC200208-200408

main43410-06410iACV36..ATM..ARL200208-200408

main43410-06430iMCV36..ATM..ARL200208-200408

main43410-06510iMCV36..MTM..(ALT,ALTS,GD,TOU)200312-200408

main43410-06520iMCV36..ATM..GCC200402-200408

W(ABS)

main43410-06530iMCV36..ATM..GCC200402-200408

main43410-06540iMCV36..MTM200312-200408

W(ABS)

sub43410-33192

sub90178-22001

main43410-33182iMCV36..MTM..(ALT,ALTS,GD,TOU)200208-200312

main43410-33192iMCV36..MTM..(ALT,ALTS,GD,TOU)200208-200312

W(ABS)

main43410-33202iMCV36..ATM..GCC200208-200402

W(ABS)

main43410-33212iMCV36..ATM..GCC200208-200402

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36200iACV36,MCV36200208-200408

sub90080-36133

main90363-41002iMCV36..ATM..GCC200208-200402

sub90363-41003

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-06050iACV36;MCV36..ATM..ARL200208-200408

main90520-38015iMCV36..MTM200208-200402

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06150iACV36..ATM..ARL200208-200408

main42345-06170iACV36..MTM;ACV36..ATM..GCC;MCV36..ATM..ARL200208-200408

sub42345-06080

main42345-06200iMCV36..MTM;MCV36..ATM..GCC200312-200408

main42345-48030iMCV36..ATM..GCC200208-200402

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06140iACV36..ATM..ARL200208-200408

main42345-06160iACV36..MTM;ACV36..ATM..GCC;MCV36..ATM..ARL200208-200408

sub42345-04030

main42345-06210iMCV36..MTM200312-200408

main42345-44020iMCV36..ATM..GCC200208-200402

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06120iACV36;MCV36..ATM200208-200408

main42345-06190iMCV36..ATM..GCC200402-200408

W(ABS)

sub42345-06320

main42345-06190iMCV36..MTM200312-200408

sub42345-06320

main42345-14010iMCV36..MTM200208-200402

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06130iACV36;MCV36..ATM..ARL200208-200408

sub42345-07010

main42345-06180iMCV36..MTM200312-200408

main42345-06180iMCV36..ATM..GCC200402-200408

W(ABS)

main90949-01340iMCV36..MTM200208-200402

43457BRACKET, DRIVE SHAFT BEARING

main43457-06010iACV36..ATM200208-200408

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iACV36,MCV36200208-200408

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iACV36,MCV36200208-200408

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iACV36..ATM200208-200408

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06030iACV36,MCV36200208-200408

main43458-12010iMCV36..ATM..GCC200208-200402

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R50iACV36..MTM;ACV36..ATM..GCC200208-200606

main43460-09R60iACV36..ATM..ARL200208-200606

main43460-09R70iMCV36..MTM200312-200606

main43460-09R90iMCV36..ATM..ARL200208-200606

main43470-09U10iMCV36..ATM..GCC200408-200606

main43470-39346iMCV36..MTM..(ALT,ALTS,GD,TOU)200208-200408

sub43470-39347

main43470-39366iMCV36..ATM..GCC200208-200408

W(ABS)

sub43470-39367

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06030iACV36200208-200408

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06110iACV36200208-200408

21 parts on this diagram · 8 diagrams in section
