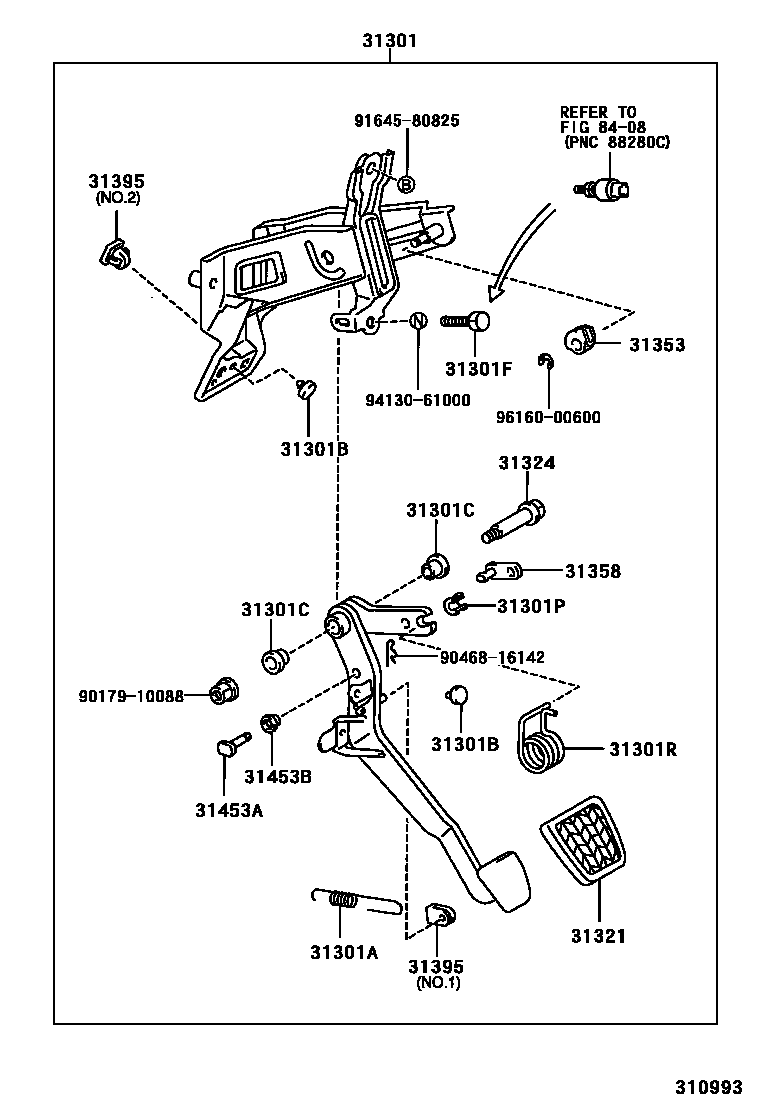

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31353HOLDER, CLUTCH PEDAL SPRING
31358CAP, OVER CENTER SPRING
31395HOOK, PEDAL SPRING
NO.1
NO.2
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=30
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
8408
9017910088
9046816142
9164580825
9413061000
9616000600
20 parts on this diagram · 5 diagrams in section
