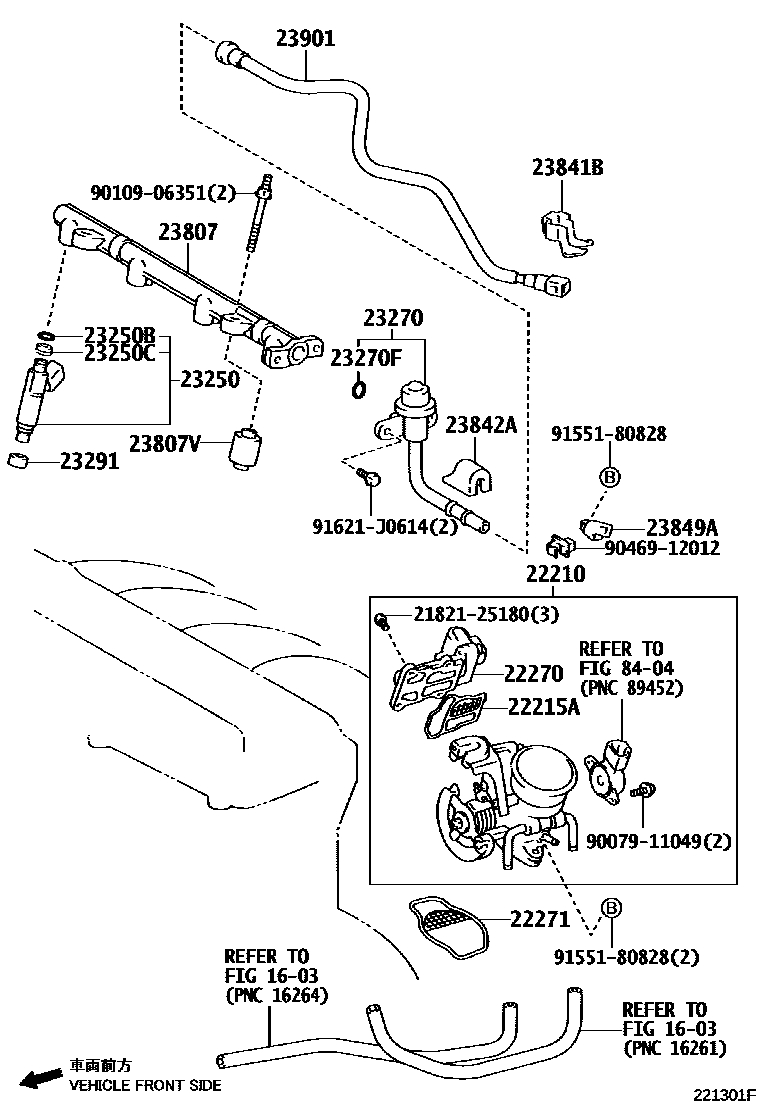

FUEL INJECTION SYSTEM
1603
22210BODY ASSY, THROTTLE
(L)
(J)
22215AGASKET, IDLE SPEED CONTROL VALVE
(L)
(J)
PAPUA NEW GUINEA OR FIJI SPEC
SOUTH AFRICA SPEC
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
(L)
(J)
PAPUA NEW GUINEA OR FIJI SPEC
SOUTH AFRICA SPEC
22271GASKET, THROTTLE BODY
(L)
(J)
23250INJECTOR ASSY, FUEL
PAPUA NEW GUINEA OR FIJI SPEC
SOUTH AFRICA SPEC
(L)
SOUTH AFRICA SPEC
PAPUA NEW GUINEA OR FIJI SPEC
(J)
23250BRING, O(FOR FUEL INJECTOR)
NO.1
SOUTH AFRICA SPEC
PAPUA NEW GUINEA OR FIJI SPEC
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
SOUTH AFRICA SPEC
PAPUA NEW GUINEA OR FIJI SPEC
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
PAPUA NEW GUINEA OR FIJI SPEC
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
PAPUA NEW GUINEA OR FIJI SPEC
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
SOUTH AFRICA SPEC
PAPUA NEW GUINEA OR FIJI SPEC
23901TUBE SUB-ASSY, FUEL
SOUTH AFRICA SPEC
PAPUA NEW GUINEA SPEC OR FIJI SPEC
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
9007911049
9010906351
9046912012
9155180828
91621J0614
24 parts on this diagram · 6 diagrams in section
