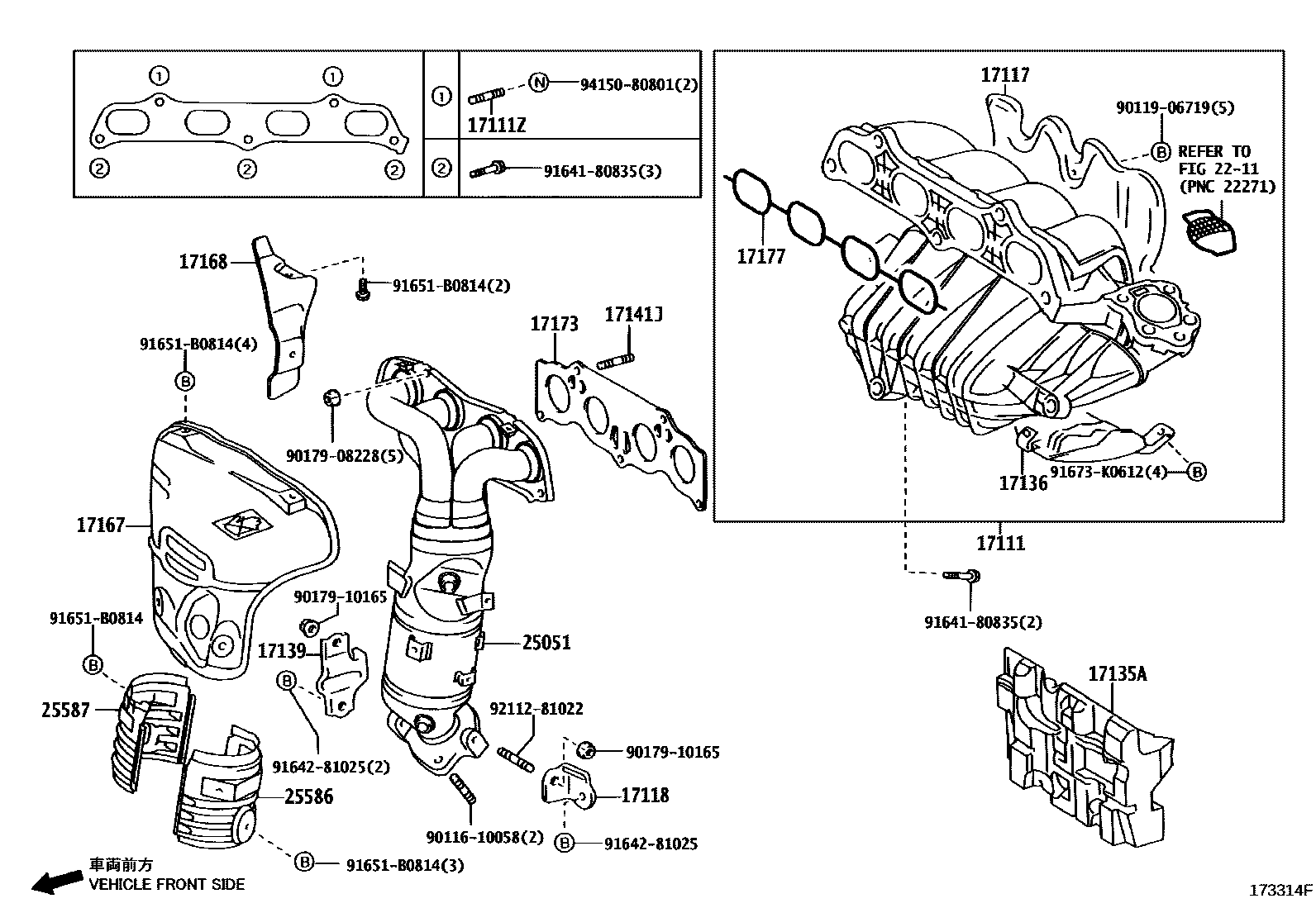

MANIFOLD
17111MANIFOLD, INTAKE
(J)
sub17120-0H021
sub17120-0H031
PAPUA NEW GUINEA SPEC OR FIJI SPEC OR SOUTH AFRICA SPEC
sub17120-0H031
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17117INSULATOR, INTAKE PIPE
17118STAY, MANIFOLD
(L)
(J)
17136INSULATOR, INTAKE MANIFOLD, NO.2
(L)
(J)
17139STAY, MANIFOLD, NO.2
(L)
PAPUA NEW GUINEA OR FIJI SPEC
SOUTH AFLICA SPEC
(J)
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
(J)
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
SOUTH AFRICA SPEC,(L)
PAPUA NEW GUINEA OR FIJI SPEC,(L)
(L)
(J)
SOUTH AFRICA SPEC,(J)
PAPUA NEW GUINEA OR FIJI SPEC,(J)
25586INSULATOR, MANIFOLD CONVERTER, NO.1
(L)
(J)
25587INSULATOR, MANIFOLD CONVERTER, NO.2
(L)
(J)
9011610058
main90116-10058
9011906719
main90119-06719
9017908228
main90179-08228
9017910165
main90179-10165
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801
26 parts on this diagram · 4 diagrams in section
