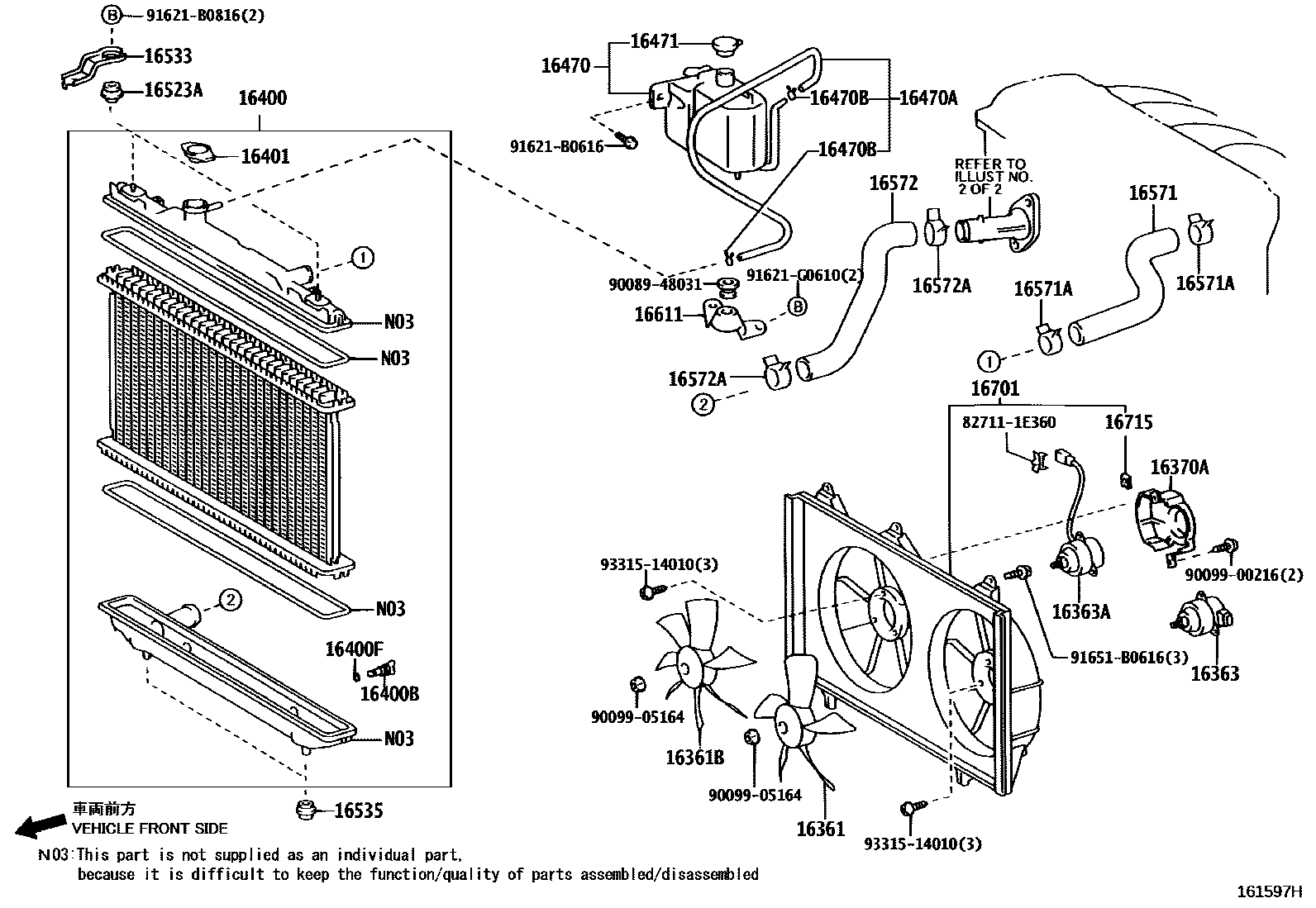

RADIATOR & WATER OUTLET

0001 1 0002 1 0004 1PAPUA NEW GUINEA/FIJI/SOUTH A0005 1 0006 1 0007 1

16361FAN

main16361-03090i2AZFE..ACV36200208-200304

sub16361-03091

main16361-03091i2AZFE..ACV36200304-200408

main16361-0A160i1MZFE..MCV36200208-200307

sub16361-0A161

main16361-0A161i1MZFE..MCV36200307-200601

sub16361-20111

16361BFAN, NO.2

main16361-03100i2AZFE..ACV36200208-200304

sub16361-03101

main16361-03101i2AZFE..ACV36200304-200408

main16361-0A170i1MZFE..MCV36200208-200307

sub16361-0A171

main16361-0A171i1MZFE..MCV36200307-200601

16363MOTOR, COOLING FAN

main16363-0A190i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200305-200601

main16363-20210i1MZFE..MCV36200208-200305

sub16363-20320

main16363-23010i2AZFE..ACV36200208-200408

16363AMOTOR, COOLING FAN, NO.2

main16363-0A200i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200305-200601

main16363-20220i1MZFE..MCV36200208-200305

sub16363-20330

main16363-28120i2AZFE..ACV36200208-200408

16370APLATE COVER

main88899-33020i2AZFE..ACV36200208-200408

16400RADIATOR ASSY

main16400-0A340i1MZFE..MCV36..MTM..ARL200208-200601

MARK 16400-0A340

main16400-0A350i1MZFE..MCV36..ATM..ARL200208-200408

MARK 16400-0A350

main16400-0A360i1MZFE..MCV36..MTM200208-200601

MARK 16400-0A360

main16400-0A370i1MZFE..MCV36..ATM200208-200408

MARK 16400-0A370

main16400-0H160i2AZFE..ACV36..MTM200208-200408

main16400-0H170i2AZFE..ACV36..ATM200208-200408

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1MZFE..MCV36200208-200408

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFE..ACV36200208-200408

16401CAP SUB-ASSY, RADIATOR

main16401-62100i2AZFE..ACV36..MTM200208-200408

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-0H040i1MZFE..MCV36200208-200601

sub16470-03062

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-03070i2AZFE..ACV36..GCC200208-200408

main16472-0A050i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200208-200601

sub16472-0A030

main16472-0H010i2AZFE..ACV36..ARL200208-200408

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2AZFE..ACV36200208-200601

16471CAP SUB-ASSY, RESERVE TANK

main16471-03020i2AZFE..ACV36200208-200601

16523ACUSHION, RADIATOR SUPPORT

main16523-03020i1MZFE..MCV36200208-200601

sub16523-74010

16533SUPPORT, RADIATOR, UPPER

main16533-0H020i1MZFE..MCV36200208-200601

16535SUPPORT, RADIATOR, LOWER

main16535-03040i2AZFE..ACV36200208-200408

sub16535-74210

main16535-0A040i1MZFE..MCV36200208-200601

sub16535-20010

16571HOSE, RADIATOR, INLET

main16571-0A060i1MZFE..MCV36200208-200601

sub16571-20020

main16571-0H080i2AZFE..ACV36200208-200408

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i1MZFE..MCV36200208-200601

16572HOSE, RADIATOR, OUTLET

main16572-0A060i1MZFE..MCV36..MTM..ARL200208-200601

main16572-0H070i2AZFE..ACV36200208-200408

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37005i1MZFE..MCV36200208-200601

16611BRACKET, RADIATOR RESERVE TANK

main16611-03040i1MZFE..MCV36200208-200601

16701SHROUD SUB-ASSY, FAN

main16711-0A190i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200208-200601

main16711-0H060i2AZFE..ACV36200208-200408

16715BRACKET, FAN SHROUD

main88688-18030i2AZFE..ACV36200208-200606

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9008948031

main90089-48031

9009900216

main90099-00216

9009905164

main90099-05164

91621B0616

main91621-B0616

91621B0816

main91621-B0816

91621G0610

main91621-G0610

91651B0616

main91651-B0616

9331514010

main93315-14010

32 parts on this diagram · 6 diagrams in section
