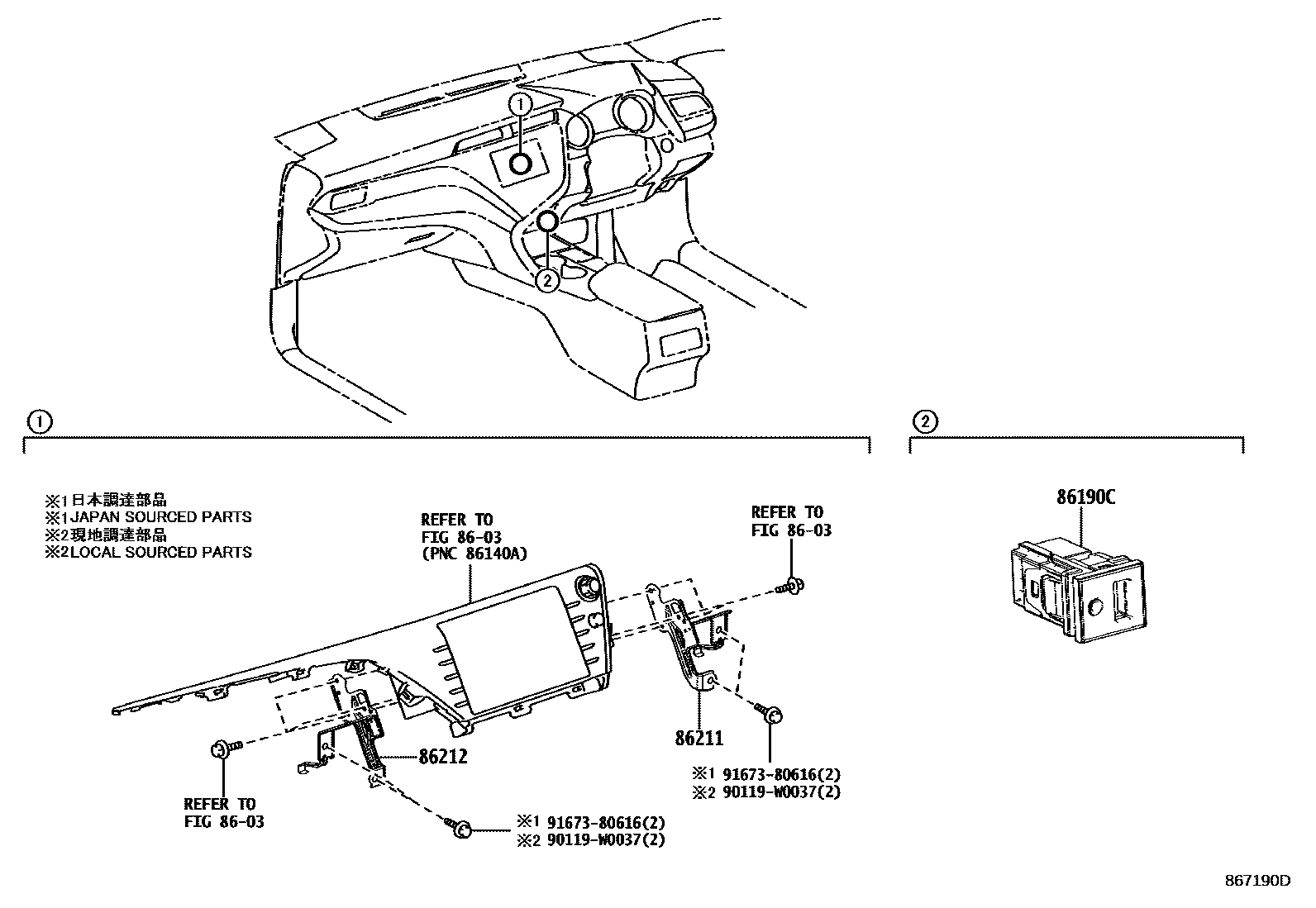

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1CONDENSER

8603

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12070iAXVA70,AXVH7#..ARL,TAKR;AXVA70,GSV70..GLE,LIMD,SE202102

GLE&AUDIO-7INCH & *DA & 6SPEAKAR

main86190-33060iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

86211BRACKET, RADIO, NO.1

main86211-33320iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

main86211-33340iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-202101

main86211-33410iAXVA70,AXVH70..ARL202102

main86211-33420iAXVH71..TAKR;AXVA70,GSV70..GLE,LIMD,SE202102

TW 2.0 G

main86211-33440iAXVA70..LE;AXVH71,MXVA71..GCC,TAIW202102

86212BRACKET, RADIO, NO.2

main86212-33320iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

main86212-33340iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-202101

main86212-33410iAXVA70,AXVH70..ARL202102

main86212-33420iAXVH71..TAKR;AXVA70,GSV70..GLE,LIMD,SE202102

TW 2.0 G

main86212-33440iAXVA70..LE;AXVH71,MXVA71..GCC,TAIW202102

90119W0037

main90119-W0037

9167380616

main91673-80616

6 parts on this diagram · 5 diagrams in section
