BATTERY & BATTERY CABLE

0001 1BATTERY 0002 112V BATTERY 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY 0007 112V BATTERY 0008 1HV BATTERY 0009 1HV BATTERY 0010 1HV BATTERY

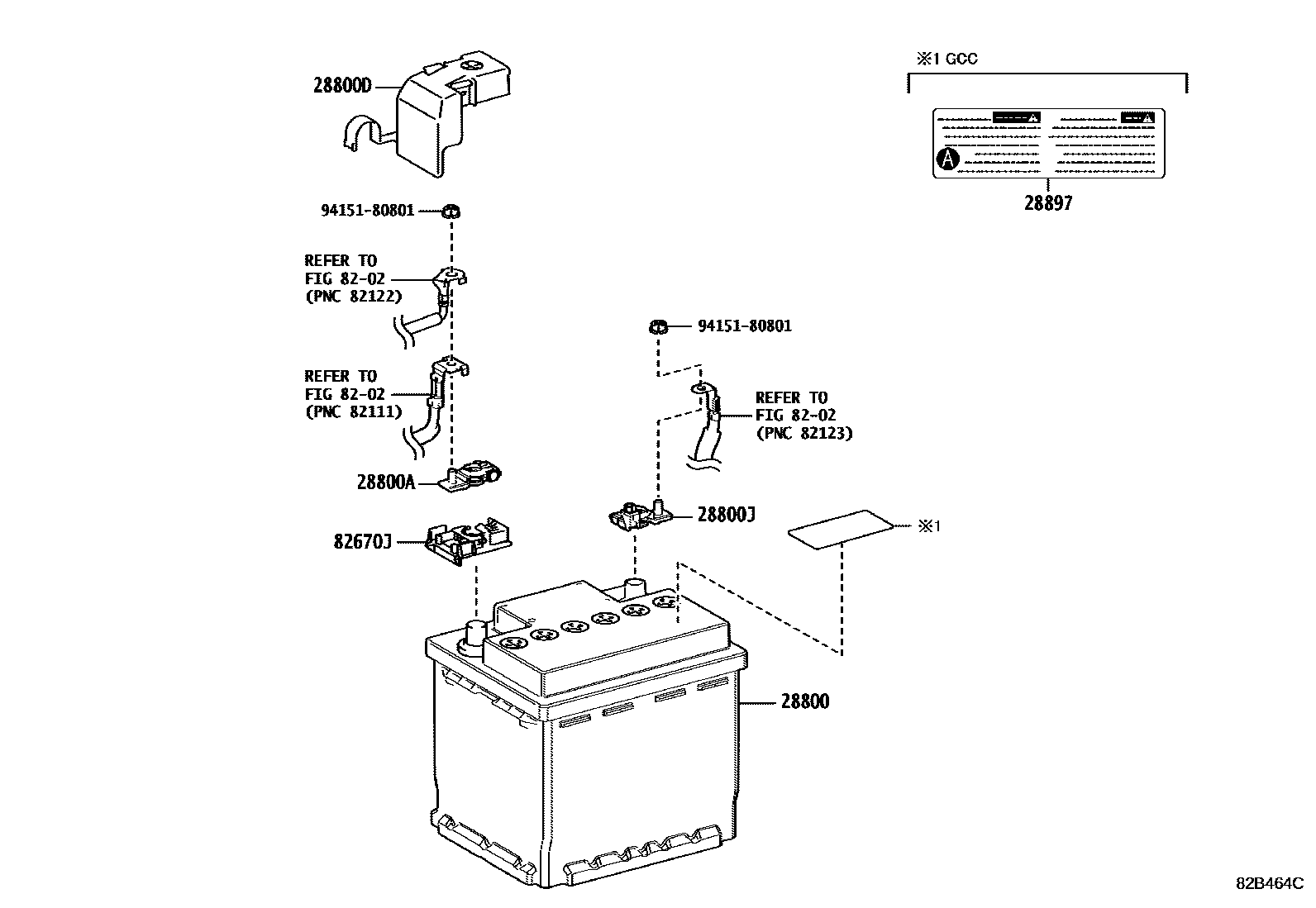

28800BATTERY

main28800-24103iA25AFKS,2GRFKS..AXVA70,GSV70..GCC202404

LN2

main28800-25010iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

LN2

main28800-25011iA25AFKS,M20AFKS,2GRFKS..AXVA70,GSV70,MXVA71202207-202302

LN2

main28800-25012iA25AFKS,M20AFKS,2GRFKS..AXVA70,GSV70,MXVA71202303-202403

LN2

main28800-25013iA25AFKS,M20AFKS..AXVA70,MXVA71..D202404

LN2

main28800-25030iA25AFXS..AXVH7#202102-202206

LN2

main28800-25031iA25AFXS..AXVH7#202207-202302

LN2

main28800-25032iA25AFXS..AXVH7#202303-202403

LN2

main28800-25033iA25AFXS..AXVH7#202404

LN2

main28800-25020iA25AFKS..AXVA70..LE202102-202104

LN3,HEAVY PACKAGE

sub28800-25021

main28800-31440iA25AFKS..AXVA70..LE202104-202206

LN3,HEAVY PACKAGE

main28800-31441iA25AFKS..AXVA70..LE202207-202302

LN3,HEAVY PACKAGE

main28800-31442iA25AFKS..AXVA70..LE202303

LN3,HEAVY PACKAGE

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS..AXVH7#201712-202101

main90982-05072iA25AFKS,M20AFKS,2GRFKS..AXVA70,GSV70,MXVA71202102

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-33030iA25AFXS..AXVH71201712-201808

main82621-33031iA25AFXS..AXVH7#201808-202101

main82821-33440iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

28897PLATE, BATTERY CAUTION

main28897-36030iA25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

8202

82670JBLOCK ASSY, JUNCTION

main82670-33140iAXVH7#202102

main82671-33100iAXVA70,GSV70,MXVA71202102

9415180801

main94151-80801

8 parts on this diagram · 10 diagrams in section
