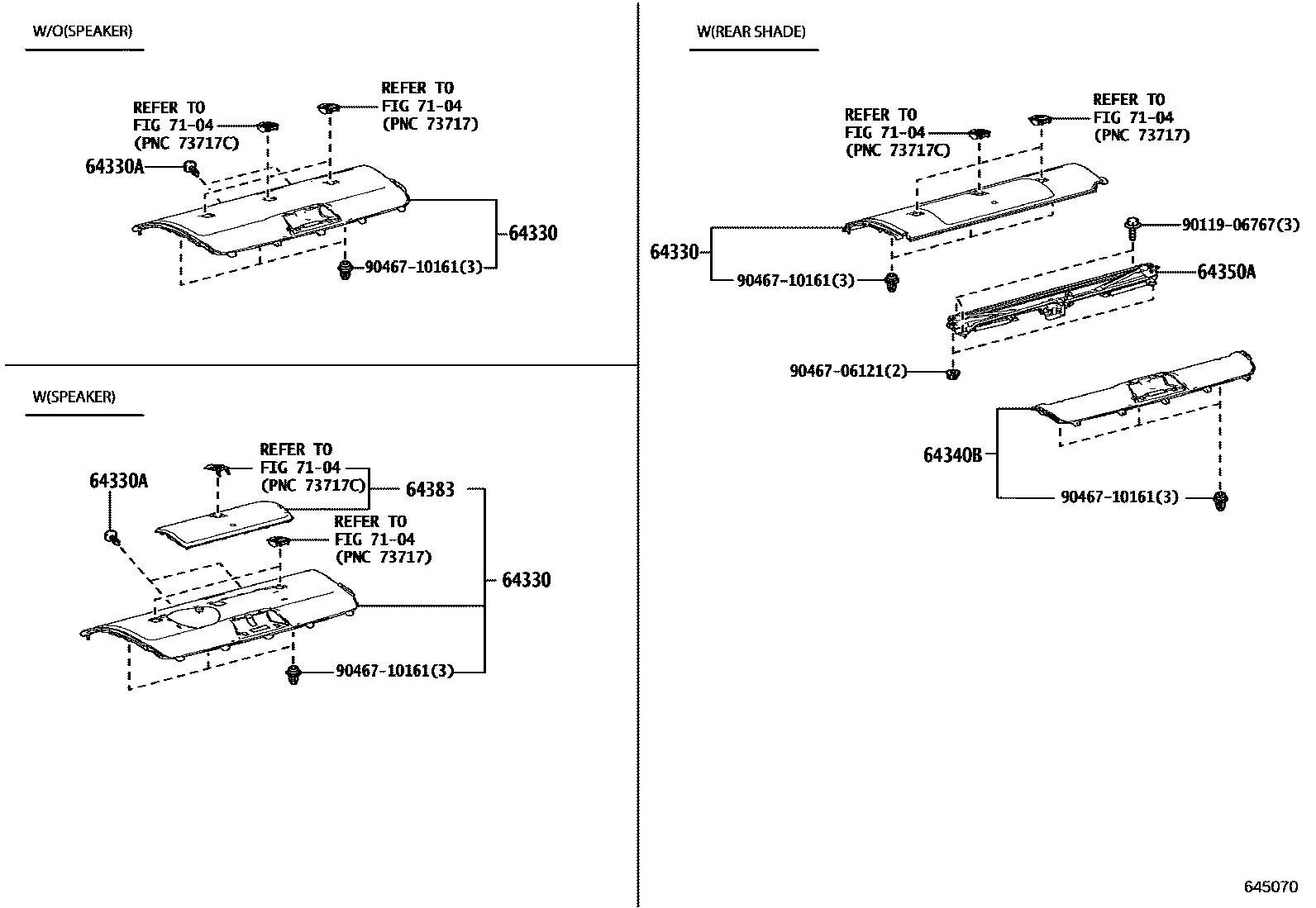

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1PACKAGE TRAY TRIM PANEL 0002 1W(FIX TYPE REAR SEAT) 0003 1W(FOLD TYPE REAR SEAT) 0004 1 0005 1 0006 1

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-33810-C0iAXVA70..SE202102

BLACK,TRIM2#,3#

main64330-06A71-C2iAXVH70..D202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,BLACK,TRIM2#

main64330-33A50-C0iAXVH71..TAKR201808-201810

HV Q PACKAGE(TAIWAN SPEC),BLACK,TRIM2#,4#

main64330-33A50-C1supersedes 64330-33810-C0iAXVH71..TAKR202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,BLACK,TRIM1#,2#,3#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05164-C7×2iASV70..TAIW;ASV70,GSV70..N;AXVH71..ARL,TAKR201709-202101

BLACK,TRIM2#,4#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-33070-C0iAXVH71..TAKR202102

BLACK,TRIM1#,2#,4#

64350ASHADE ASSY, REAR WINDOW

main64350-33030iGSV70..GCC201712-202101

CONVENIENT PACKAGE

64383GRILLE, SPEAKER, REAR

main64383-06141-C0iAXVH70..D202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,BLACK,TRIM2#

7104

9011906767

main90119-06767

9046706121

main90467-06121

9046710161

main90467-10161

9 parts on this diagram · 6 diagrams in section
