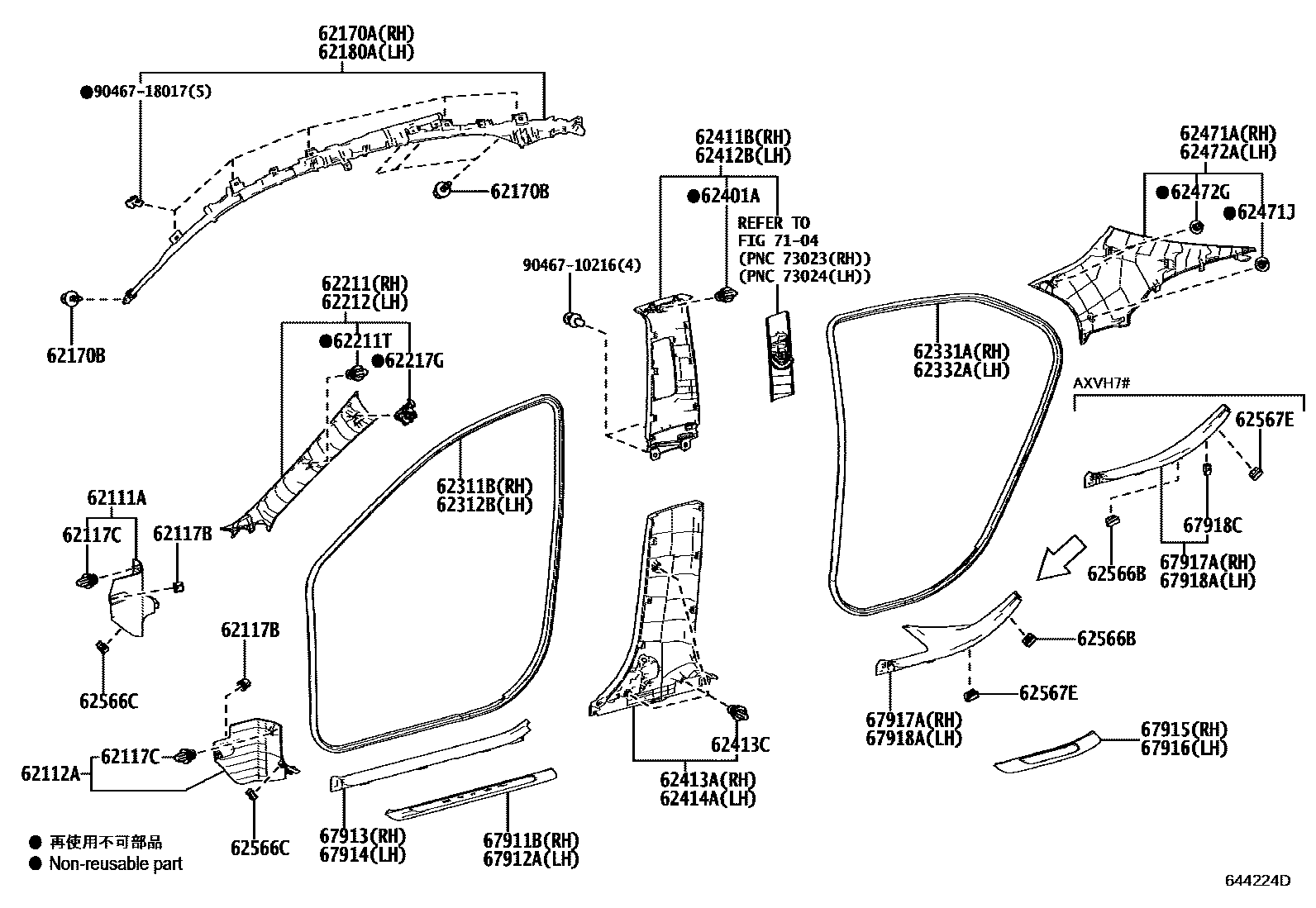

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-33140-B0iAXVH71,MXVA71..TAIW,TAKR202102

NEUTRAL WARM GRAY,TRIM1#,40

main62101-33140-C0iAXVA70..LE;AXVH71,MXVA71..TAIW,TAKR202102

BLACK,TRIM2#,3#

main62101-33150-B0iAXVH71..ARL;ASV70,GSV70..N201709-202101

NEUTRAL WARM GRAY,TRIM4#

main62101-33150-C0iAXVH70,GSV70..D,N201712-202101

BLACK,TRIM2#,3#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-33240-B0iAXVH71,MXVA71..TAIW,TAKR202102

NEUTRAL WARM GRAY,TRIM1#,40

main62102-33240-C0iAXVA70..LE;AXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

BLACK,TRIM2#,41

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iAXVA70,AXVH7#,GSV70,MXVA71202102

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10161×2iASV70,AXVA70,AXVH7#,GSV70201709-202101

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-33102iAXVA70,GSV70..GLE,LIMD,SE;AXVA70,AXVH7#,MXVA71..ARL,TAIW,TAKR202102

MOON ROOF-WITH(TILT & SLIDE)

62170BBOLT, W/WASHER

main91673-80616×8iAXVA70,GSV70..GLE,LIMD,SE;AXVA70,AXVH7#,MXVA71..ARL,TAIW,TAKR202102

MOON ROOF-WITH(TILT & SLIDE)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-33102iAXVA70,GSV70..GLE,LIMD,SE;AXVA70,AXVH7#,MXVA71..ARL,TAIW,TAKR202102

MOON ROOF-WITH(TILT & SLIDE)

62211GARNISH, FRONT PILLAR, RH

main62210-33220-B1iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

LEBANON SPEC&CONVENIENT PACKAGE,GRAY,TRIM1#,2#,41

main62210-33220-E1iASV70..TAIW;ASV70,GSV70..N;AXVH71..ARL,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD201709-202101

NEUTRAL BEIGE,TRIM4#

main62210-33240-B1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

MOON ROOF-WITHOUT,GRAY,TRIM1#,2#

main62210-33240-E1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

NEUTRAL BEIGE,TRIM4#

main62210-33250-B2supersedes 62210-33220-B1iAXVH70..D202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,GRAY,TRIM2#

main62210-33250-E2iAXVH71..GCC202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,NEUTRAL BEIGE,TRIM40

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×4iAXVA70,GSV70..GLE,LIMD,SE;AXVA70,AXVH7#,MXVA71..ARL,TAIW,TAKR202102

GLE&MOON ROOF-WITH(TILT & SLIDE)

62212GARNISH, FRONT PILLAR, LH

main62220-33210-B1iAXVH7#..ARL,TAKR;ASV70,GSV70..D,N201709-202101

GRAY,TRIM2#

main62220-33210-E1iAXVH71,MXVA71..TAIW,TAKR202102

YEMEN SPEC&CONVENIENT PACKAGE,NEUTRAL BEIGE,TRIM40

main62220-33230-B1iAXVA70..LE;AXVH71..GCC202102

MOON ROOF-WITHOUT,GRAY,TRIM1#,2#

main62220-33230-E1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

NEUTRAL BEIGE,TRIM4#

main62220-33250-B2supersedes 62220-33210-B1iAXVH70..D202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,GRAY,TRIM2#

main62220-33250-E2iAXVA70..GLE202102

AUDIO-9INCH & *DA & 9SPEAKAR & JBL,NEUTRAL BEIGE,TRIM40

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020×2iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAIW,TAKR201709-202101

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33120iASV70,AXVA70,AXVH7#,GSV70201709-202101

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-33120iASV70,AXVA70,AXVH7#,GSV70201709-202101

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33140iASV70,AXVA70,AXVH7#,GSV70201709-202101

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-33140iASV70,AXVA70,AXVH7#,GSV70201709-202101

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167×2iASV70,AXVA70,AXVH7#,GSV70201709-202101

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33200-B2iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

GRAY,TRIM1#,2#

main62410-33200-E2iAXVH71;ASV70..TAIW;ASV70,GSV70..N;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

NEUTRAL BEIGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33190-B2iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

GRAY,TRIM1#,2#

main62420-33190-E2iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102

NEUTRAL BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33140-B0iAXVH71..GCC;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

NEUTRAL WARM GRAY,TRIM1#,4#

main62413-33140-C0iAXVA70..LE;AXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

BLACK,TRIM2#,3#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×6iASV70,AXVA70,AXVH7#,GSV70201709-202101

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33130-B0iAXVH71,MXVA71..TAIW,TAKR202102

NEUTRAL WARM GRAY,TRIM1#,40

main62414-33130-C0iAXVA70..LE;AXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

BLACK,TRIM2#,41

62471AGARNISH, ROOF SIDE, INNER RH

main62470-33210-B1iAXVH7#..ARL,TAKR;ASV70,GSV70..D,N201709-202101

GRAY,TRIM2#

main62470-33210-E1iAXVH71,MXVA71..TAIW,TAKR202102

MOON ROOF-WITH(TILT & SLIDE),NEUTRAL BEIGE,TRIM40

main62470-33220-B1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

MOON ROOF-WITHOUT,GRAY,TRIM1#,2#

main62470-33220-E1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

NEUTRAL BEIGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240×2iAXVA70,AXVH7#,GSV70,MXVA71202102

62472AGARNISH, ROOF SIDE, INNER LH

main62480-33210-B1iGSV70..SE201712-202101

GRAY,TRIM1#,2#,3#

main62480-33210-E1iASV70..TAIW;ASV70,GSV70..N;AXVH71..ARL,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD201709-202101

NEUTRAL BEIGE,TRIM4#

main62480-33220-B1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

MOON ROOF-WITHOUT,GRAY,TRIM1#,2#

main62480-33220-E1iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

NEUTRAL BEIGE,TRIM4#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188×4iASV70,AXVA70,AXVH7#,GSV70201709-202101

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010×2iAXVA70,AXVH7#,GSV70,MXVA71202102

62566CCLAMP, COWL SIDE TRIM

main62567-33040×2iAXVA70,AXVH7#,GSV70,MXVA71202102

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2iASV70,AXVA70,AXVH7#,GSV70201709-202101

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33080iASV70..D;ASV70,GSV70..GCC;AXVA70,AXVH7#..ARL,GCC201712-202101

main67911-33090iASV70..N,V;AXVH71,GSV70..(D,N,V)..(ARL,TAKR)201709-202101

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33080iAXVH70..D;AXVA70,AXVH71,GSV70,MXVA71..ARL,GCC,TAIW202102

main67912-33120iASV70..N,V;AXVH71,GSV70..(D,N,V)..(ARL,TAKR)201709-202101

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33170-B0iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102

NEUTRAL WARM GRAY,TRIM1#,40

main67913-33170-C0iAXVH71..ARL;ASV70..D..ARL201712-202101

BLACK,TRIM2#,3#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33170-B0iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102

NEUTRAL WARM GRAY,TRIM1#,40

main67914-33170-C0iAXVA70..LE;AXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102

BLACK,TRIM2#,3#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-33120iAXVA70,AXVH7#,GSV70,MXVA71202102

main67915-33130iASV70..N,V;AXVH71,GSV70..(D,N,V)..(ARL,TAKR)201709-202101

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-33120iASV70..D;ASV70,GSV70..GCC;AXVA70,AXVH7#..ARL,GCC201712-202101

main67916-33130iASV70..N,V;AXVH71,GSV70..(D,N,V)..(ARL,TAKR)201709-202101

67917APLATE, REAR DOOR SCUFF, RH

main67917-33130-B0iMXVA71202102

NEUTRAL WARM GRAY,TRIM1#,40

main67917-33130-C0iASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

BLACK,TRIM2#,3#

main67917-33140-B0iAXVH71..GCC202102

NEUTRAL WARM GRAY,TRIM1#,40

main67917-33140-C0iAXVH7#..D..(ARL,TAKR)202102

BLACK,TRIM2#,3#

67918APLATE, REAR DOOR SCUFF, LH

main67918-33130-B0iMXVA71202102

NEUTRAL WARM GRAY,TRIM1#,40

main67918-33130-C0iGSV70..SE202102

BLACK,TRIM2#,41

main67918-33140-B0iAXVH71..TAKR201808-202101

NEUTRAL WARM GRAY,TRIM4#

main67918-33140-C0iAXVH7#..D..(ARL,TAKR)202102

BLACK,TRIM2#,3#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05171×2iAXVH7#202102

7104

9046710216

main90467-10216

9046718017

main90467-18017

40 parts on this diagram · 2 diagrams in section
