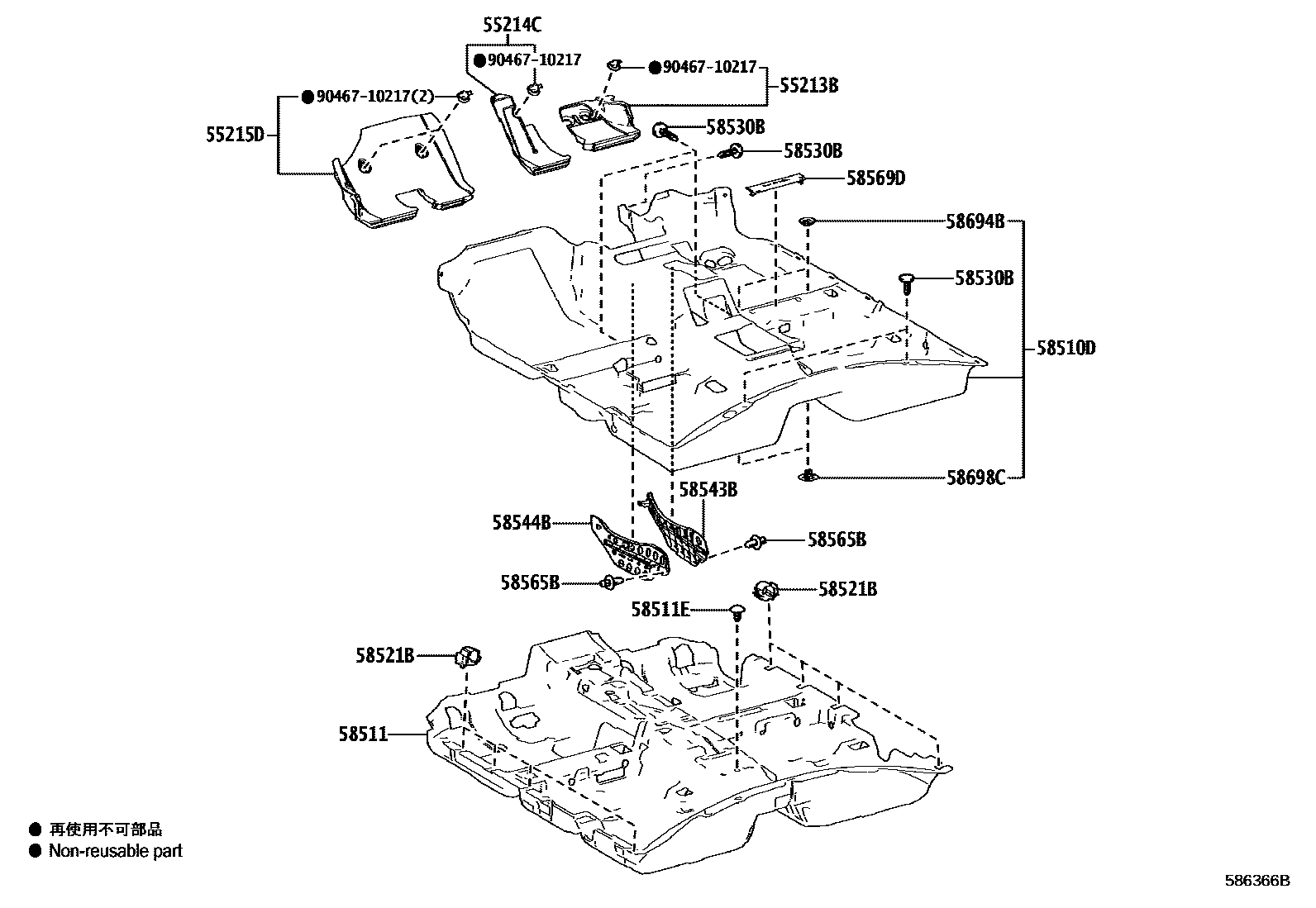

MAT & CARPET

0001 1 0002 1 0003 1 0004 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-33180iASV70,AXVA70,AXVH71,GSV70..GCC201712-201807

main55213-33181iASV70,AXVA70,AXVH71,GSV70..LHD201807-202101

main55213-33190iASV70,AXVH71,GSV70..ARL201709-201907

W/O PART NO. MARK

main55213-33191iAXVA70,AXVH70..ARL202102

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-33110iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main55214-33120iASV70,AXVH7#,GSV70..ARL201709-202101

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-33040iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main55215-33050iAXVA70,AXVH70..ARL202102

58510DCARPET ASSY, FLOOR, FRONT

main58510-33860-C1iAXVH70..D202102

BLACK,TRIM2#,3#

main58510-33870-B2supersedes 58510-33880-B2iASV70..TAIW201810-202101

NEUTRAL WARM GRAY,TRIM4#

main58510-33870-C1supersedes 58510-33880-C1iASV70..LHD;GSV70..LIMD201712-202101

BLACK,TRIM2#,3#

main58510-33880-B2iAXVA70..GLE,LE201712-202101

NEUTRAL WARM GRAY,TRIM1#,4#

main58510-33880-C1supersedes 58510-33880-C1iAXVA70201712-202101

SAUDI ARABIA SPEC,BLACK,TRIM2#,3#

main58510-33890-B2supersedes 58510-33A20-B1iAXVH71..TAKR202102

QATAR SPEC,NEUTRAL WARM GRAY,TRIM1#,40

main58510-33890-C1supersedes 58510-33A20-C0iAXVH71..GCC202102

JORDAN SPEC,BLACK,TRIM2#,41

main58510-33A10-C0iAXVA70..ARL202102

BLACK,TRIM2#

main58510-33850-B2supersedes 58510-33A10-B1iGSV70..N201712-202101

NEW ZEALAND SPEC,NEUTRAL WARM GRAY,TRIM4#

main58510-33850-C1supersedes 58510-33A10-C0iASV70..N201709-202101

NEW ZEALAND SPEC,BLACK,TRIM2#

main58510-33A00-C1supersedes 58510-33860-C1iAXVH7#..ARL201712-202101

NEW ZEALAND SPEC,BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-33010iASV70,AXVA70,GSV70201709-201806

main58511-33011iASV70,AXVA70,GSV70201807-201906

main58511-33012iASV70,AXVA70,GSV70201907-202101

main58511-33020iAXVH71201712-201806

main58511-33021iAXVH71201807-201906

main58511-33022iAXVH7#201907-202101

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iASV70,AXVA70,AXVH7#,GSV70201709-202101

BLACK

sub90467-06175

58521BHOOK, FLOOR CARPET

main58521-33060×8iAXVA70,AXVH7#,GSV70,MXVA71202102

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×6iASV70,AXVA70,GSV70..GCC201712-201803

BLACK

main90467-07161-C1×5iAXVH71..D201804-202101

BLACK

58543BBRACKET, FLOOR CARPET, RH

main58543-33110iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main58543-33120iAXVA70,AXVH70..ARL202102

58544BBRACKET, FLOOR CARPET, LH

main58544-33110iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main58544-33120iAXVA70,AXVH70..ARL202102

58565BCLIP

main90467-07076-C7×2iAXVA70,AXVH7#,GSV70,MXVA71202102

BLACK

sub90467-07041

sub90467-A0016

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-33030-C0iGSV70..SE202102

BLACK,TRIM2#,3#

main58569-33030-B0iASV70201709-201710

NEW ZEALAND SPEC,NEUTRAL WARM GRAY,TRIM1#,4#

58694BPLATE, MAT SET, UPPER

main58694-33010×2iAXVA70,AXVH7#,GSV70,MXVA71202102

58698CPLATE, MAT SET, LOWER

main58698-33010×2iAXVA70,AXVH7#,GSV70,MXVA71202102

9046710217

main90467-10217

15 parts on this diagram · 4 diagrams in section
