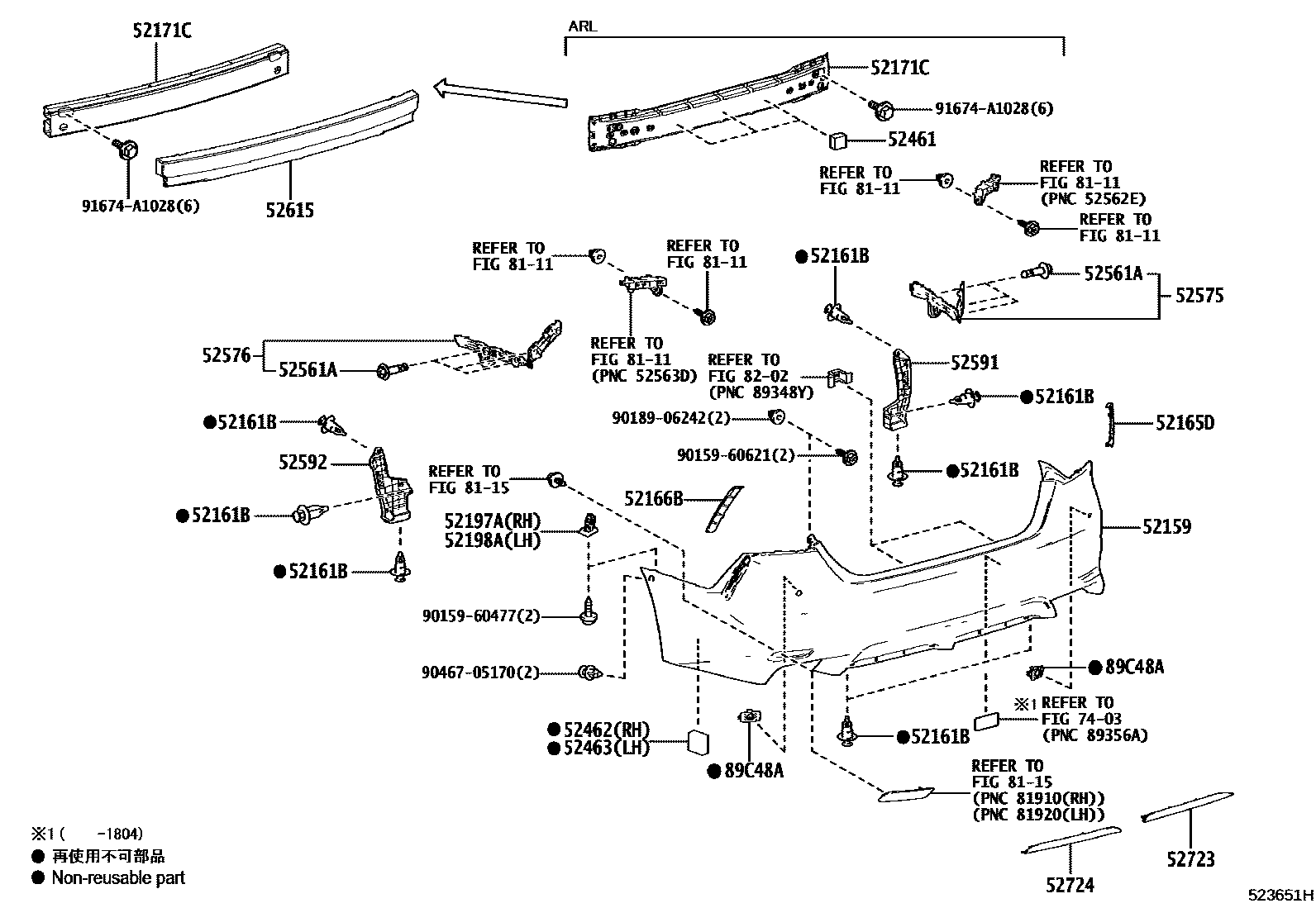

REAR BUMPER & BUMPER STAY

0001 1W(CLEARANCE SONAR) 0002 1W/O(CLEARANCE SONAR) 0003 1W(CLEARANCE SONAR) 0004 1W/O(CLEARANCE SONAR) 0005 1 0006 1 0007 1ATARA S OR ATARA SL

52159COVER, REAR BUMPER

main52159-33958iAXVA70..GLE,LE;AXVA70,AXVH7#,MXVA71..D..(ARL,GCC,TAIW)202102

PAINT REQ.

main52159-33959iASV70..GLE201712-202101

CONVENIENT PACKAGE

main52159-33961supersedes 52159-33962iGSV70..SE;ASV70,GSV70..N,V201709-202101

main52159-33962iASV70,AXVA70..SE201712-202101

52161BPIECE, REAR BUMPER

main52161-16010×10iAXVH7#..ARL201712-202101

ATARA S

sub52161-0K040

52165DEXTENSION, REAR BUMPER CORNER, RH

main52165-33010iAXVH70..V;AXVA70,GSV70..SE202102

ATARA S

52166BEXTENSION, REAR BUMPER CORNER, LH

main52166-33010iAXVH70..V;AXVA70,GSV70..SE202102

ATARA S

52171CREINFORCEMENT, REAR BUMPER

main52023-33060iASV70,AXVH7#,GSV70..ARL201709-202101

main52171-33180iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iAXVA70,AXVH7#,GSV70,MXVA71202102

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iASV70,AXVA70,AXVH7#,GSV70201709-202101

52461PAD, REAR BUMPER, CENTER

main52462-30090×3iAXVH7#..ARL;ASV70..D..ARL201712-202101

main52462-33050×3iASV70,GSV70..N,V201709-201808

main52462-33060×3iASV70,GSV70..N,V201808-202101

ATARA S

52462PAD, REAR BUMPER, RH

main52462-33060iAXVH70..V;AXVA70,GSV70..SE202102

NO PAINT REQ.,ATARA S

52463PAD, REAR BUMPER, LH

main52463-33100iAXVH70..V;AXVA70,GSV70..SE202102

NO PAINT REQ.,ATARA S

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×6iAXVA70,AXVH7#,GSV70,MXVA71202102

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33130iASV70,AXVA70,AXVH7#,GSV70201709-202101

52576RETAINER, REAR BUMPER SIDE, LH

main52576-33130iASV70,AXVA70,AXVH7#,GSV70201709-202101

52591SEAL, REAR BUMPER SIDE, RH

main52591-33040iAXVA70,AXVH7#,GSV70,MXVA71202102

52592SEAL, REAR BUMPER SIDE, LH

main52592-33040iASV70,AXVA70,AXVH7#,GSV70201709-202101

52615ABSORBER, REAR BUMPER ENERGY

main52615-33150iASV70,AXVH71..LHD..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

main52615-33190iASV70,AXVA70,GSV70..SE201712-202101

52723MOULDING, REAR BUMPER EXTENSION, RH

main52723-33010iAXVH70..V;AXVA70,GSV70..SE202102

ATARA S

52724MOULDING, REAR BUMPER EXTENSION, LH

main52724-33010iASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE201709-202101

7403

8111

8115

8202

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33210×2iGSV70;ASV70..N,V;AXVH71..TAKR201709-202101

main89348-33400×2iAXVA70..GLE202102

GLE&CONVENIENT PACKAGE

9015960477

main90159-60477

9015960621

main90159-60621

9018906242

main90189-06242

9046705170

main90467-05170

91674A1028

main91674-A1028

28 parts on this diagram · 7 diagrams in section
