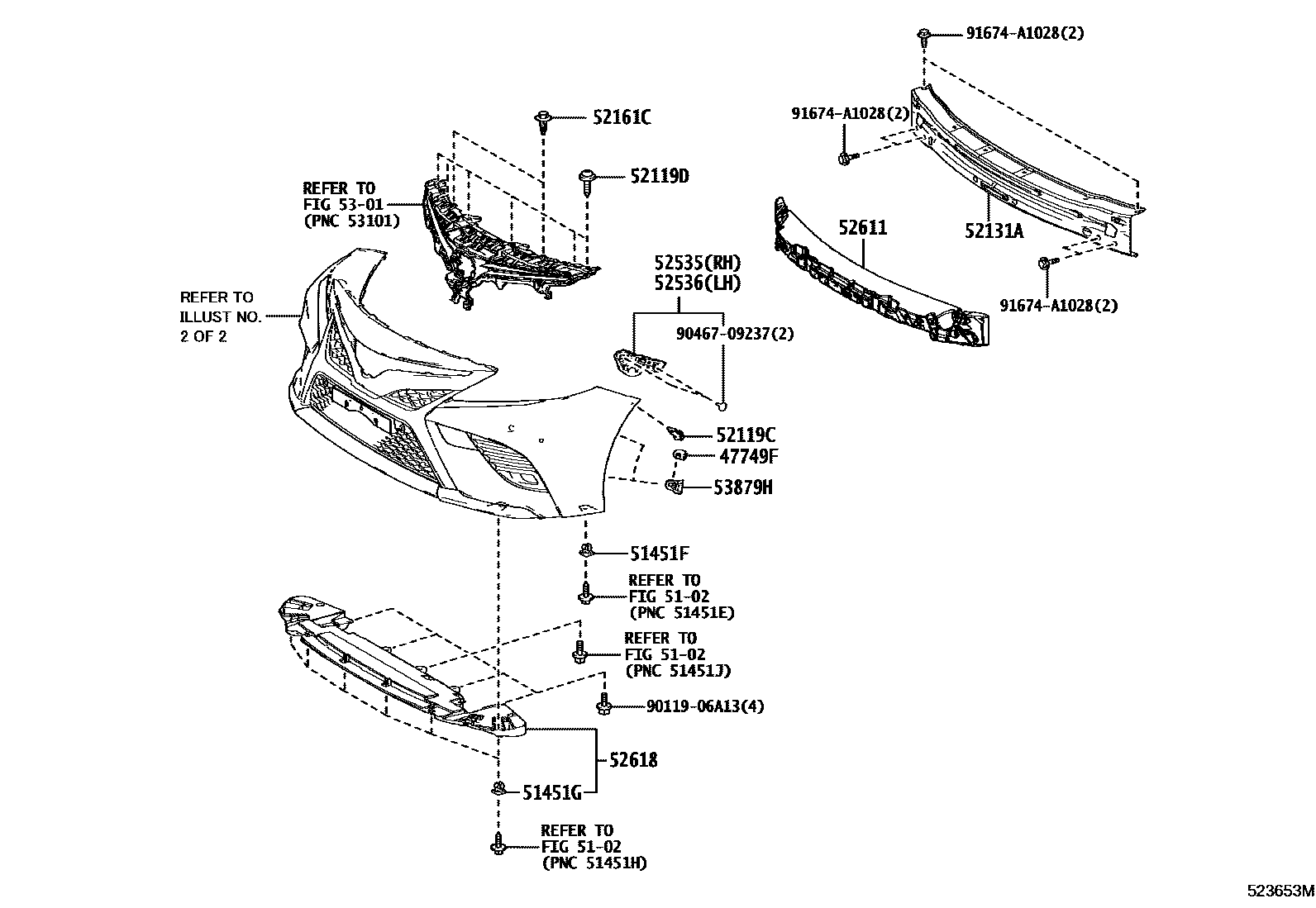

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1ATARA S OR ATARA SL 0006 1ATARA S OR ATARA SL 0007 1 0008 1 0009 1 0010 1 0011 1ATARA S OR ATARA SL 0012 1ATARA S 0013 1ATARA SL

47749FCLIP, PIN HOLD

main47749-33030iAXVA70,AXVH7#,GSV70,MXVA71201709-202101

5102

51451FGROMMET, NO.1

main90189-06237iASV70,AXVA70,AXVH7#,GSV70201709-202101

51451GGROMMET, NO.2

main90189-06237iASV70,AXVA70,AXVH7#,GSV70201709-202101

52119CCLIP, FRONT BUMPER COVER

main90467-05170iASV70,AXVA70,AXVH7#,GSV70201709-202101

52119DSCREW, NO.1

main90167-50063iAXVH70..D201712-202101

ATARA S

main90167-50063iAXVH70..D201712-202101

ATARA SL

main90167-50063iASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE201709-202101

52131AREINFORCEMENT, FRONT BUMPER

main52131-33180iAXVA70,AXVH7#,GSV70,MXVA71201709-202303

sub52131-33181

main52131-33181iAXVA70,AXVH7#,GSV70,MXVA71202304

52161CPIECE, FRONT BUMPER

main52161-16010iAXVH70..D202102

ATARA SL

sub52161-0K040

main52161-16010iASV70,AXVA70,AXVH7#,GSV70201709-202101

sub52161-0K040

main52161-16010iAXVH70..V;AXVA70,GSV70..SE202102

ATARA S

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33060iAXVA70,AXVH7#,GSV70,MXVA71201709-202101

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33060iAXVA70,AXVH7#,GSV70,MXVA71201709-202101

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33300iASV70,AXVA70,AXVH7#,GSV70201709-202101

main52611-33360iAXVA70,AXVH7#,GSV70,MXVA71202102

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33060iAXVH7#..ARL201902-202101

ATARA S

main52618-33060iAXVH7#..ARL201902-202101

ATARA SL

main52618-33060iAXVH71;ASV70..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

main52618-33110iAXVH7#;ASV70..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201903-202101

5301

53879HRETAINER, FRONT FENDER LINER

main53879-33030iASV70,AXVA70,AXVH7#,GSV70201709-202101

9011906A13

main90119-06A13

9046709237

main90467-09237

91674A1028

main91674-A1028

17 parts on this diagram · 13 diagrams in section
