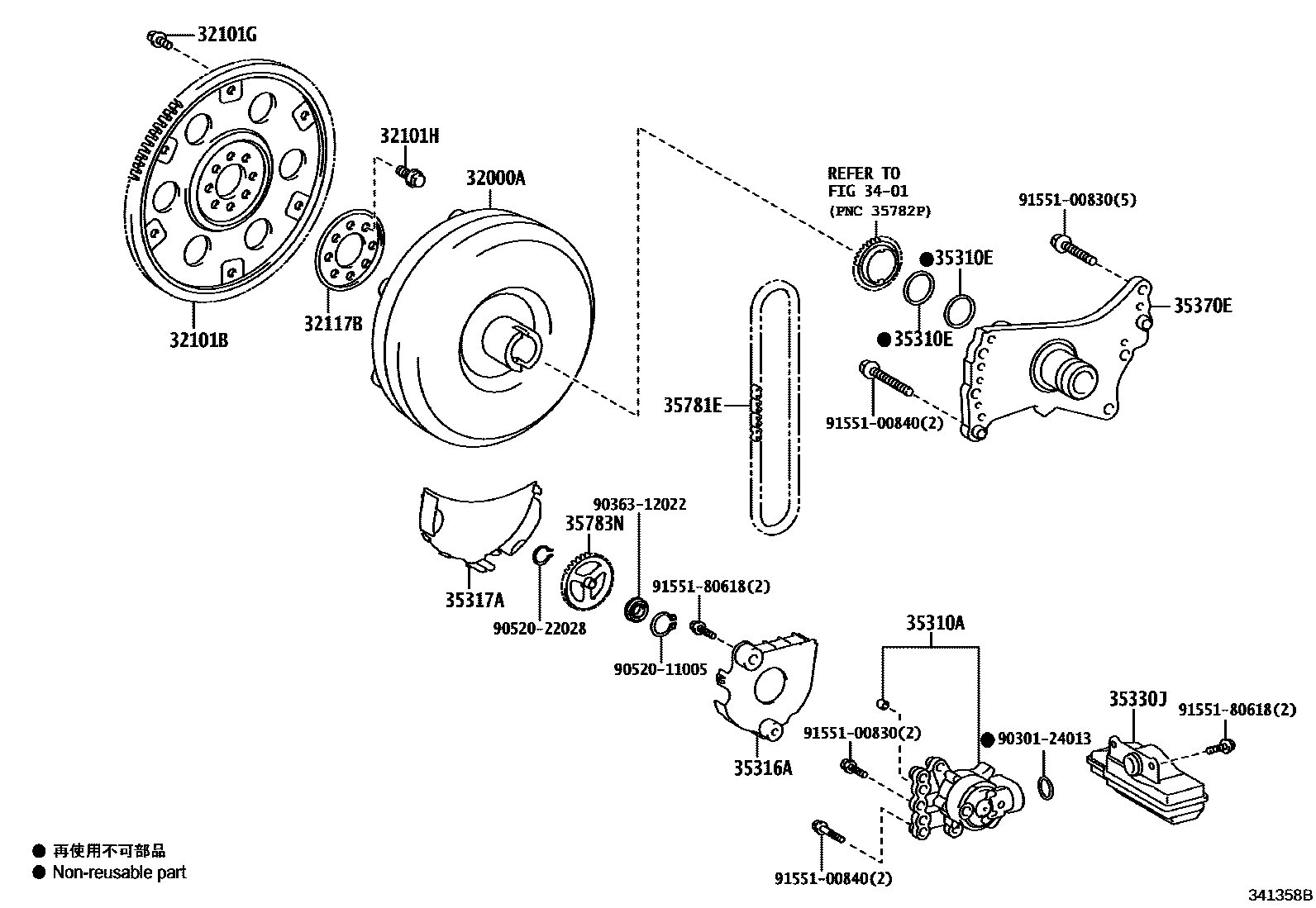

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMXVA71¥74,000202102

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12120iMXVA71¥13,400202102

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXVA71¥80202102

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXVA71¥80202102

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXVA71¥100202102

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXVA71¥920202102

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXVA71¥16,000202102

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12070iMXVA71¥160202102

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXVA71¥980202102

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXVA71¥590202102

35330JSTRAINER ASSY, OIL

main35330-12090iMXVA71¥3,580202102

35370ESHAFT ASSY, STATOR (CVT)

main35370-12130iMXVA71¥14,900202102

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXVA71¥5,100202102-202205

main35781-33010iMXVA71¥1,570202206-202209

sub35781-42010¥1,420

main35781-42010iMXVA71¥1,420202209

35783NSPROCKET, DRIVEN

main35783-12060iMXVA71¥1,310202102

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

21 parts on this diagram · 1 diagram in section
