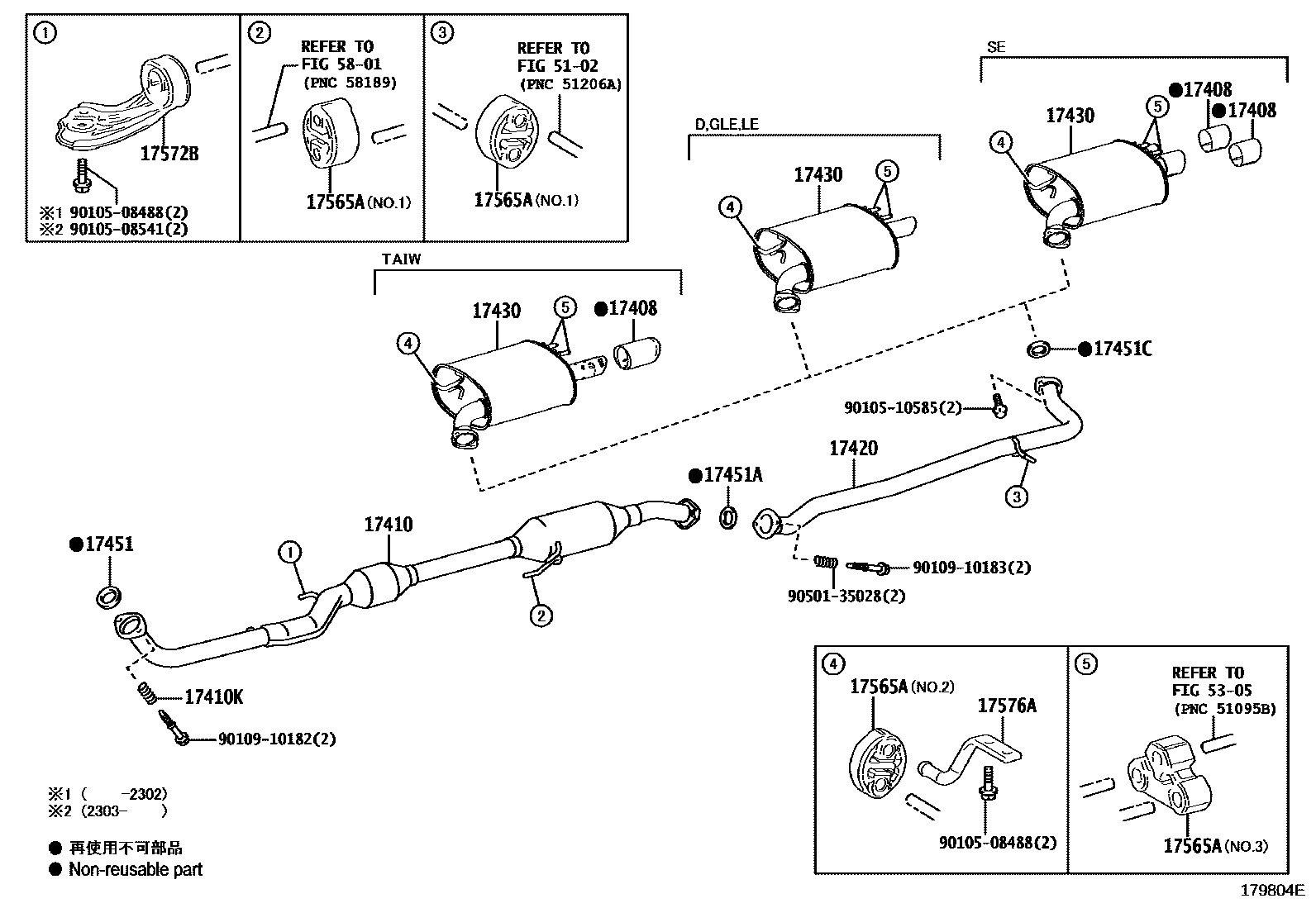

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
ATARA S
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/A53/Y
17410KSPRING, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
NO.2
NO.3
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
5102
5305
5801
9010508488
main90105-08488
9010508541
main90105-08541
9010510585
main90105-10585
9010910182
main90109-10182
9010910183
main90109-10183
9050135028
main90501-35028
20 parts on this diagram · 8 diagrams in section
