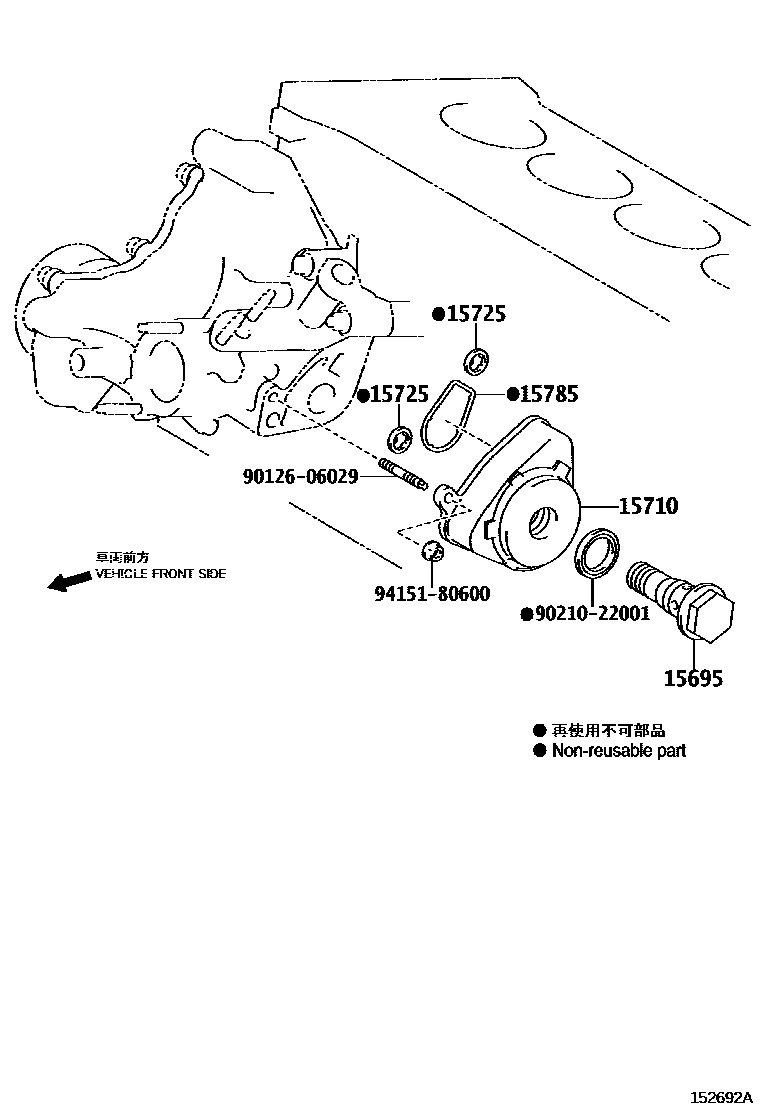

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15695BOLT, OIL COOLER UNION

main15695-62030i2ARFE..ASV70..ARL,GCC201709-202101

15710COOLER ASSY, OIL

main15710-25010iA25#..AXVA70,AXVH7#..ARL,GCC202102

main15710-31060i2GRFKS..GSV70202102

main15710-36010i2ARFE..ASV70..ARL,GCC201709-202101

15725GASKET, OIL COOLER COVER

main15725-36010×2i2ARFE..ASV70..ARL,GCC201709-202101

15785GASKET, OIL COOLER

main15785-25010×2iA25#..AXVA70,AXVH7#..ARL,GCC201712-202101

main15785-31040i2GRFKS..GSV70201712-202101

main15785-36010i2ARFE..ASV70..ARL,GCC201709-202101

9012606029

main90126-06029

9021022001

main90210-22001

9415180600

main94151-80600

7 parts on this diagram · 3 diagrams in section
