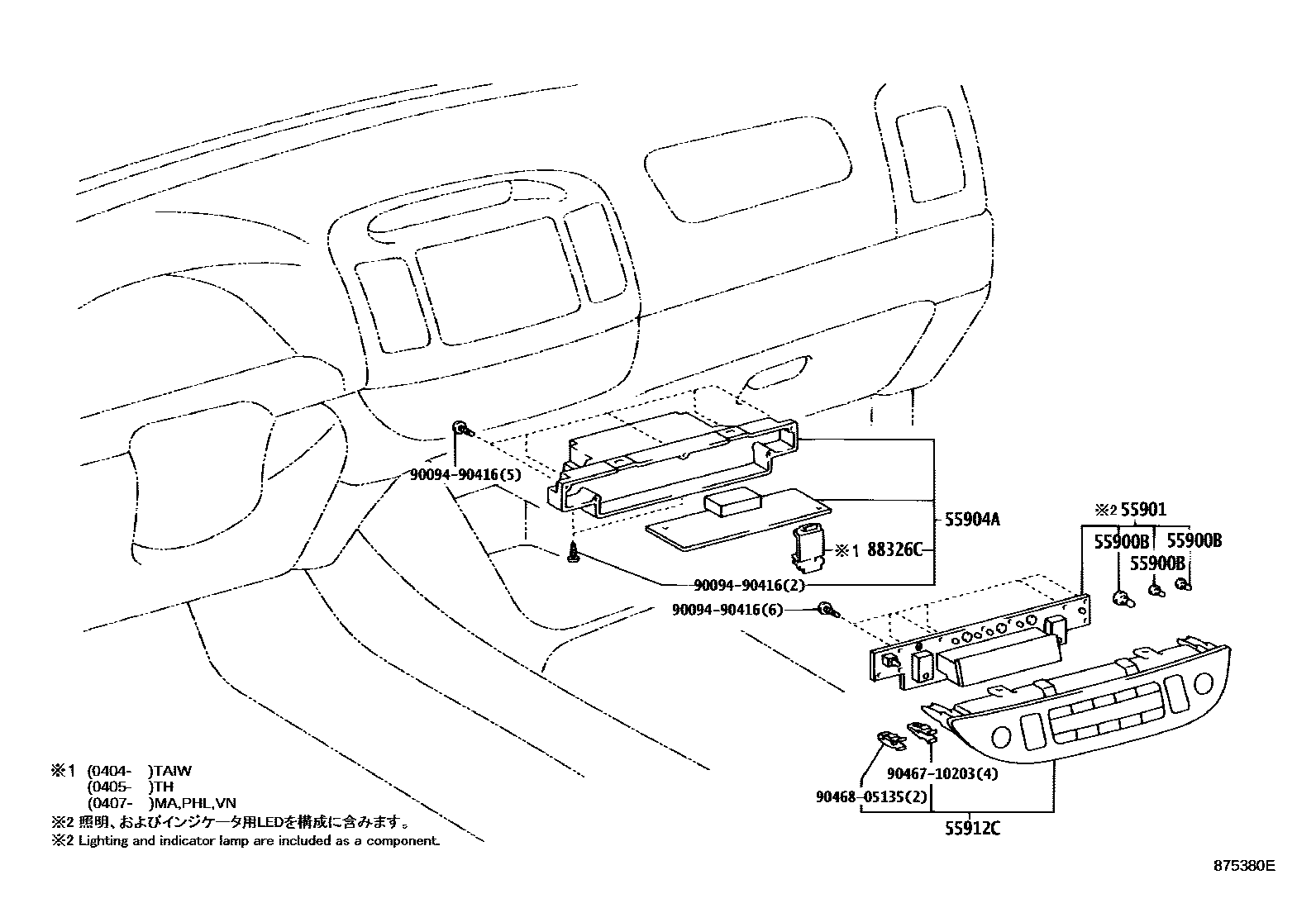

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTOROL PANEL--AUTO A/C 0002 1CONTOROL PANEL--MANUAL A/C 0005 1AIR DUCT 0006 1AIR DUCT 0007 1SENSOR

55900BBULB, AIR CONDITIONER CONTROL

main90010-03054iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200611

14V 0.84W,HAZARD(ILLUMINATION)

main90010-03055iACV30..IDN..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV31..(20E,20G)..(TAIW,TH);ACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203-200611

14V 0.84W,W(CAP),SWITCH ILLUMINATION

main90010-03056iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200611

14V 1.4W,W(CAP),FOR LCD ILLUMINATION

55901BASE SUB-ASSY, HEATER CONTROL

main55901-33010iACV3#,MCV30..(20G,24V,30V)..(PHL,VN)200203-200407

main55901-33020iACV3#..TH..4FC200405

W(WOODEN PANEL)

main55901-33020iACV30,MCV30..IDN,TH200203-200405

main55901-33030iACV3#..RHD..(20E,24V)200203-200407

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33120iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200407

55912CHOUSING, HEATER CONTROL

main55912-33080iACV30..TH200203-200405

sub55912-33240

main55912-33111-A0iACV31..TH200203-200405

IVORY,TRIM4#

main55912-33111-A0iACV31..TH200405-200608

IVORY,TRIM0#

main55912-33170iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

NO.2

main55912-33170iACV3#,MCV30..(20G,24V,30V)..(PHL,VN)200206-200407

main55912-33180iACV30,MCV30..IDN200205-200405

main55912-33190iACV30..MA200206-200407

main55912-33270iACV31..TH200405-200608

main55912-33280-A0iACV30..24E200407-200608

IVORY,TRIM0#

main55912-33290iMCV30..5FC;ACV31..TAIW;ACV30..LHD..(24G,24V)200404-200611

sub55912-33170

main55912-33310iACV3#..MA200407-200608

main55912-33320iACV3#..TH..4FC200405-200608

WOODEN PANEL

88326CPLATE, COVER

main88326-63010iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200407

9009490416

main90094-90416

9046710203

main90467-10203

9046805135

main90468-05135

8 parts on this diagram · 5 diagrams in section
