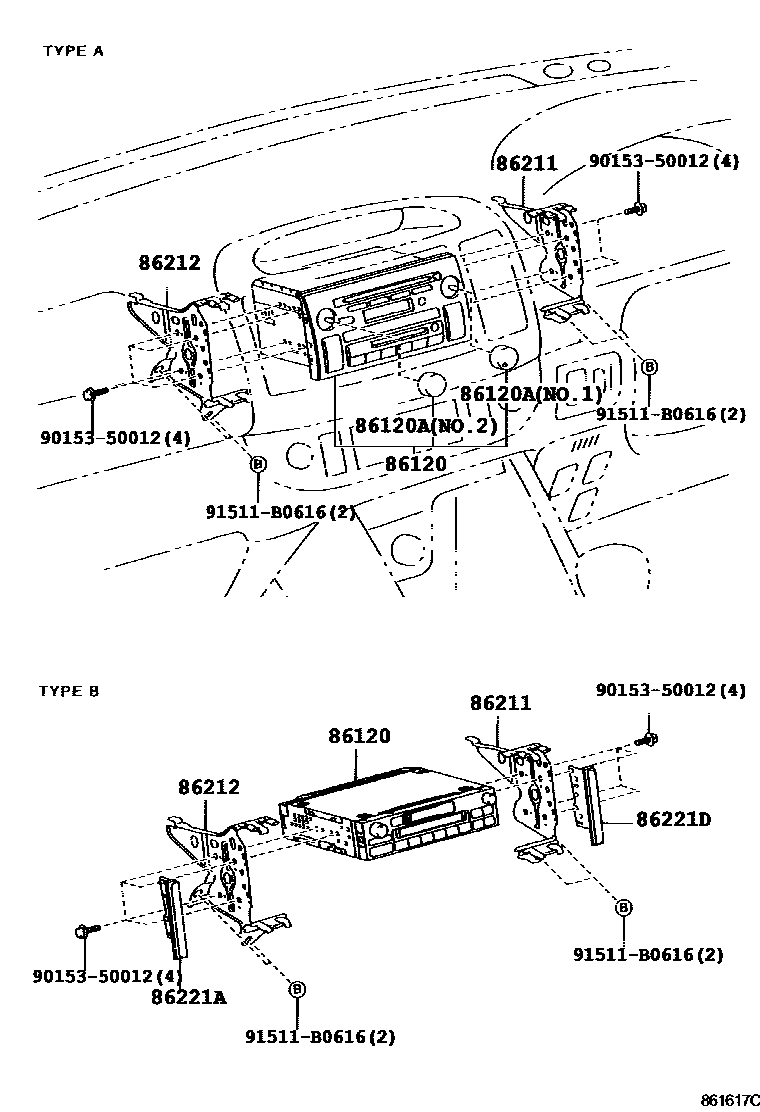

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-06121iACV31,MCV30..(20E,20G,30G)..TAIW200404

MATSUSHITA,TYPE A

main86120-06130iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

MATSUSHITA,TYPE A

main86120-06140iACV30,MCV30..VN200208-200407

MATSUSHITA,TYPE A

main86120-06150iACV30,MCV30..(24G,30V)..TH200405

MATSUSHITA,TYPE A

main86120-2B570iACV31..20J200203-200404

MATSUSHITA,TYPE B

86120AKNOB, RADIO RECEIVER SWITCH

main90011-8C000iACV30,MCV30..(24G,30V)..TH;ACV31,MCV30..(20E,20G,30G)..TAIW200404

NO.1 OR NO.2

main90011-8C001iACV30,MCV30..VN200208-200407

NO.1

main90011-8C002iACV30,MCV30..VN200208-200407

NO.2

86211BRACKET, RADIO, NO.1

main86211-33160iACV3#..MA,PHL200203-200407

W(COMMON TYPE AUDIO)

main86211-33160iACV3#..MA;ACV30..24E200407

main86211-33200iMCV30..TH;MCV30..VN..5FC;ACV30..24G..(TH,VN);ACV31,MCV30..(20E,20G,30G)..TAIW200203-200407

W(EXCLUSIVE TYPE AUDIO)

main86211-33200iMCV30..30V..5FC200404-200405

86212BRACKET, RADIO, NO.2

main86212-33160iACV31..20J200203-200407

W(COMMON TYPE AUDIO)

main86212-33160iACV3#..MA;ACV30..24E200407

main86212-33200iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200407

W(EXCLUSIVE TYPE AUDIO)

main86212-33200iMCV30..30V..5FC200404-200405

86221APANEL, RADIO RECEIVER

main86221-02010iACV31..TH200203-200407

(L)

main86221-52050iACV3#..MA,PHL200203-200407

(J)

86221DPANEL, RADIO RECEIVER

main86221-02020iACV31..TH200203-200407

(L)

main86221-52060iACV30..24Q200203-200407

(J)

9015350012

main90153-50012

91511B0616

main91511-B0616

8 parts on this diagram · 2 diagrams in section
