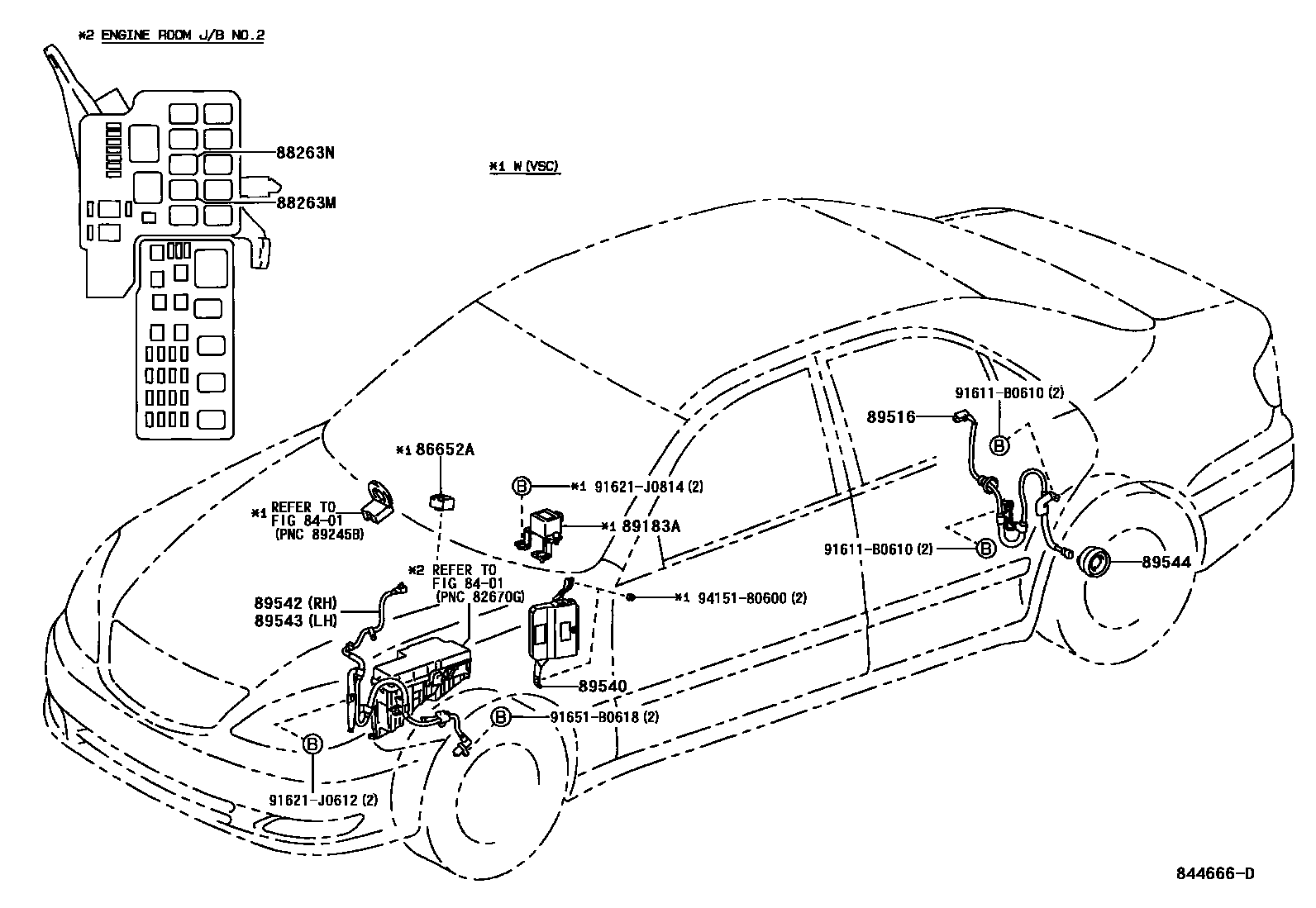

ABS & VSC

0001 1 0002 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iACV30,MCV30..(24V,30V)..(IDN,MA)200207-200407

88263MRELAY, ABS SOLENOID

main88263-32070iACV31;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F;ACV30..(IDN,PHL,TH)..4FC200203-200407

88263NRELAY, ABS MOTOR

main88263-32070iACV31;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F;ACV30..(IDN,PHL,TH)..4FC200203-200407

89183ASENSOR, YAWRATE

main89180-33020iMCV30..TAIW..4FC;ACV3#..(20G,24Q)..(TAIW,TH)200203-200407

89516WIRE, SKID CONTROL SENSOR

main89516-33010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

RH

main89516-33020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-33301iMCV30..TAIW200203-200404

PART NUMBER LABEL=89540-33301

main89540-33310iACV31..20G..TAIW200203-200404

PART NUMBER LABEL=89540-33310

main89540-33321iACV30..24Q200203-200407

PART NUMBER LABEL=89540-33321

main89540-33340iACV31..TAIW200404

PART NUMBER LABEL=89540-33340

main89540-33360iACV3#..(20E,24G)..TH200405

PART NUMBER LABEL=89540-33360

main89540-33370iMCV30..TAIW200404

PART NUMBER LABEL=89540-33370

main89540-33380iACV30..MA200407

89542SENSOR, SPEED, FRONT RH

main89542-33070iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

89543SENSOR, SPEED, FRONT LH

main89543-33070iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

89544SENSOR, SKID CONTROL

main89544-48010×2iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91621J0814

main91621-J0814

91651B0618

main91651-B0618

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
