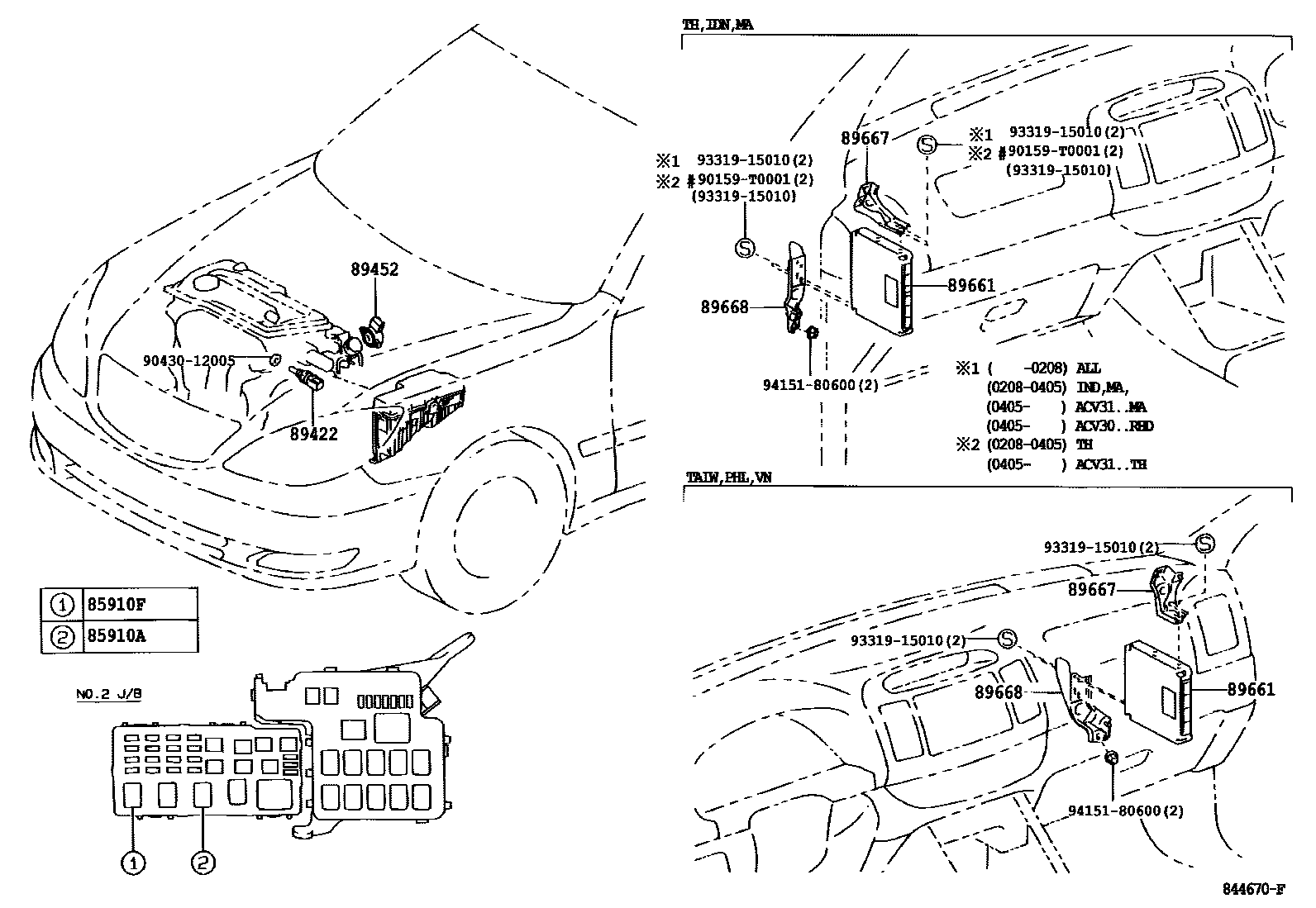

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008iACV3#,MCV30..MA,PHL,VN200403-200404

main90080-87008iACV31,MCV30..TAIW,VN200203-200403

P/N LABEL=9008087008

main90080-87008iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

PART NUMBER LABEL=90080-87008

main90080-87010iACV31,MCV30..TAIW,VN200203-200403

P/N LABEL=9008087010

sub90987-02027

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

PART NUMBER LABEL=90080-87008

main90080-87008iACV31,MCV30..TAIW,VN200203-200403

P/N LABEL=9008087008

main90080-87008iACV31..TAIW200403-200404

main90080-87010iACV31,MCV30..TAIW,VN200203-200403

P/N LABEL=9008087010

sub90987-02027

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iACV31..MA,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200611

(L)

main89422-33020iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200203-200611

P/N LABEL=8942233020

main89422-33030iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

main89422-33030iACV31..TAIW200203-200611

(J)

main89422-35010iMCV30..(IDN,TAIW,VN)..4FC200203-200611

P/N LABEL=8942235010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30150iMCV30200203-200312

main89452-33030iACV31..TAIW200203-200401

89661COMPUTER, ENGINE CONTROL

main89661-06A60iACV31..TH200405

main89661-06A70iACV30..TH..4FC200405

main89661-06A80iACV31..TH200405

SINGAPORE SPEC

main89661-06A90iACV30..24G..4FC200405

SINGAPORE SPEC

main89661-3T730iMCV30..TAIW200203-200404

main89666-06340iACV31..TAIW200203-200510

sub89666-06341

main89666-06341iACV31..TAIW200511

main89666-06350iACV31..MA,PHL200206-200407

main89666-06360iACV31..TH200203-200405

main89666-06370iACV30..(IDN,VN)..5F200205-200407

main89666-06390iACV30..(IDN,MA,PHL)..4FC200205-200407

main89666-06390iACV30..24G..4FC200405

INDONESIA SPEC

main89666-06400iACV30..TH200203-200405

main89666-33330iMCV30..TH200205-200407

main89666-33380iMCV30..5FC200404

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33120iACV30..LHD;MCV30..5FC;ACV31..TAIW200203-200407

main89667-33130iACV3#,MCV30..RHD200203-200407

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33160iACV3#,MCV30..LHD..(4FC,5F)200203-200407

main89668-33170iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

90159T0001

main90159-T0001

9043012005

main90430-12005

9331915010

main93319-15010

9415180600

main94151-80600

11 parts on this diagram · 2 diagrams in section
