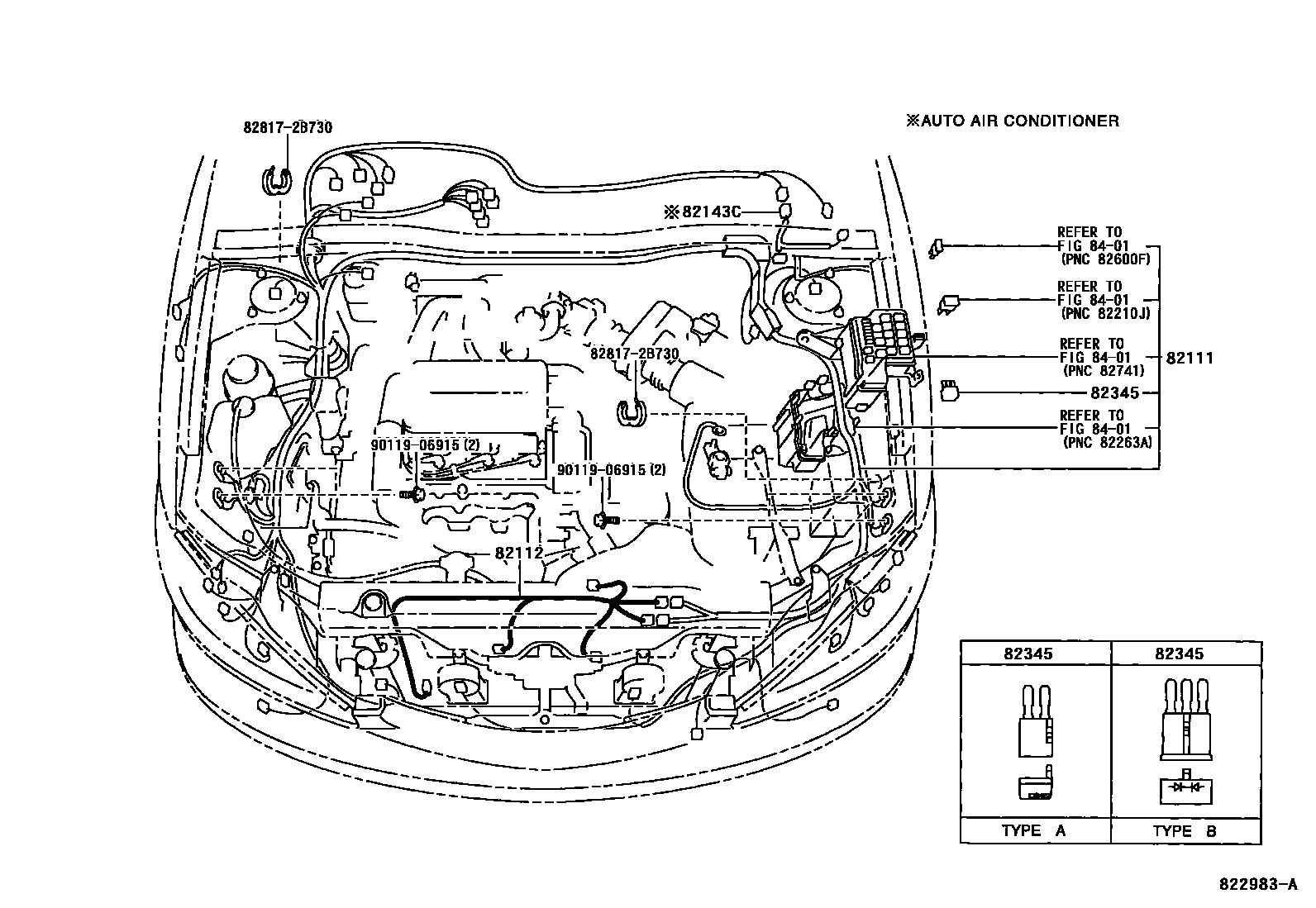

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(COURTESY LAMP)
W(MOON ROOF & VSC)
W(VSC)
THAILAND PACKAGE
INDONESIA SPEC
SINGAPORE SPEC & W(ANTI-THEFT DEVICE:IMMOBILIZER & SECURITY SYSTEM)
SINGAPORE SPEC
W(ANTI-THEFT DEVICE)
W(VSC)
W(VSC)
82112WIRE, ENGINE ROOM, NO.2
82143WIRE, INSTRUMENT PANEL, NO.3
main82143-06060iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407
82143CWIRE, INSTRUMENT PANEL, NO.3
main82143-06080iACV30..IDN..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV31..(20E,20G)..(TAIW,TH);ACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203-200407
82345DIODE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
8401
828172B730PROTECTOR, WIRING HARNESS, NO.1
main82817-2B730
9011906915
main90119-06915
8 parts on this diagram · 13 diagrams in section
