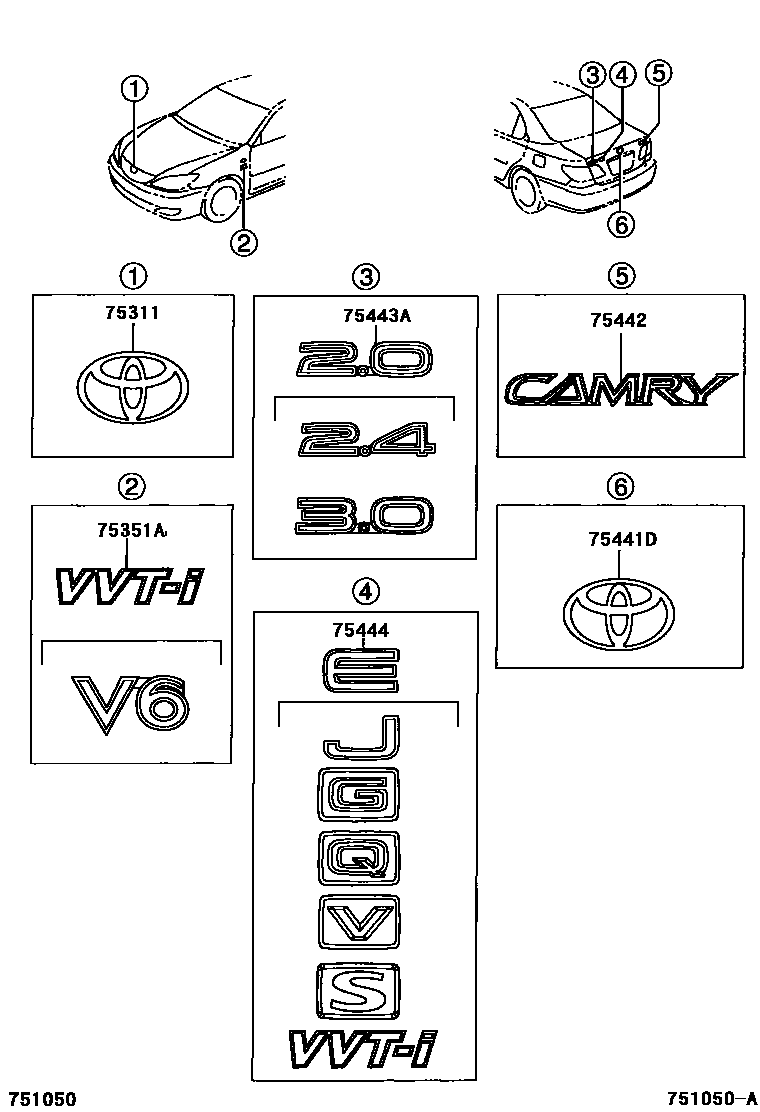

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-06040iACV3#,MCV30..MA,PHL,VN200203-200407

main75311-06050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

75351AEMBLEM, FRONT FENDER

main75443-06120iMCV30..IDN200203-200505

sub75443-06121

main75443-06121iMCV30..4FC200506

main75444-02160iACV3#..MA,PHL,VN200203-200506

sub75444-02161

main75444-02161iACV3#,MCV30..MA,PHL,TAIW,VN200507

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main90975-02009iACV31,MCV30..TAIW200203-200407

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-06040iACV3#,MCV30..IDN,TH200203-200506

CAMRY

sub75442-06041

main75442-06041iACV3#,MCV30200507

CAMRY

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06110iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200203-200506

3.0

sub75443-06111

main75443-06111iMCV30200507

3.0

main75443-06130iACV30200203-200407

2.4

main75443-06140iACV31..TH200203-200507

2.0

sub75443-06141

main75443-06141iACV31200507

2.0

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75443-06120iMCV30..5FC200404-200506

V6

sub75443-06121

main75443-06121iMCV30..5FC200507

V6

main75443-06150iACV3#..TH200203-200505

VVT-I

sub75443-06151

main75443-06151iACV3#..TH200506

VVT-I

main75444-02110iACV31..20J200203-200405

J

sub75444-02111

main75444-02130iACV31,MCV30..(20G,30G)..TAIW200203-200507

G

sub75444-02131

main75444-02131iACV31..TH;ACV31,MCV30..20G,30G200507

G

main75444-02140iACV31..20E..TAIW200203-200507

E

sub75444-02141

main75444-02141iACV31..20E200507

E

main75444-06060iACV30..MA200203-200506

V

sub75444-06061

main75444-06061iMCV30..30V200506

V

main75444-06080iACV30..24Q200203-200405

Q

main75471-0D070iACV31..20E..TAIW200404-200506

S

sub75471-0D071

main75471-0D071iACV31..20E..TAIW200507

S

6 parts on this diagram · 1 diagram in section
