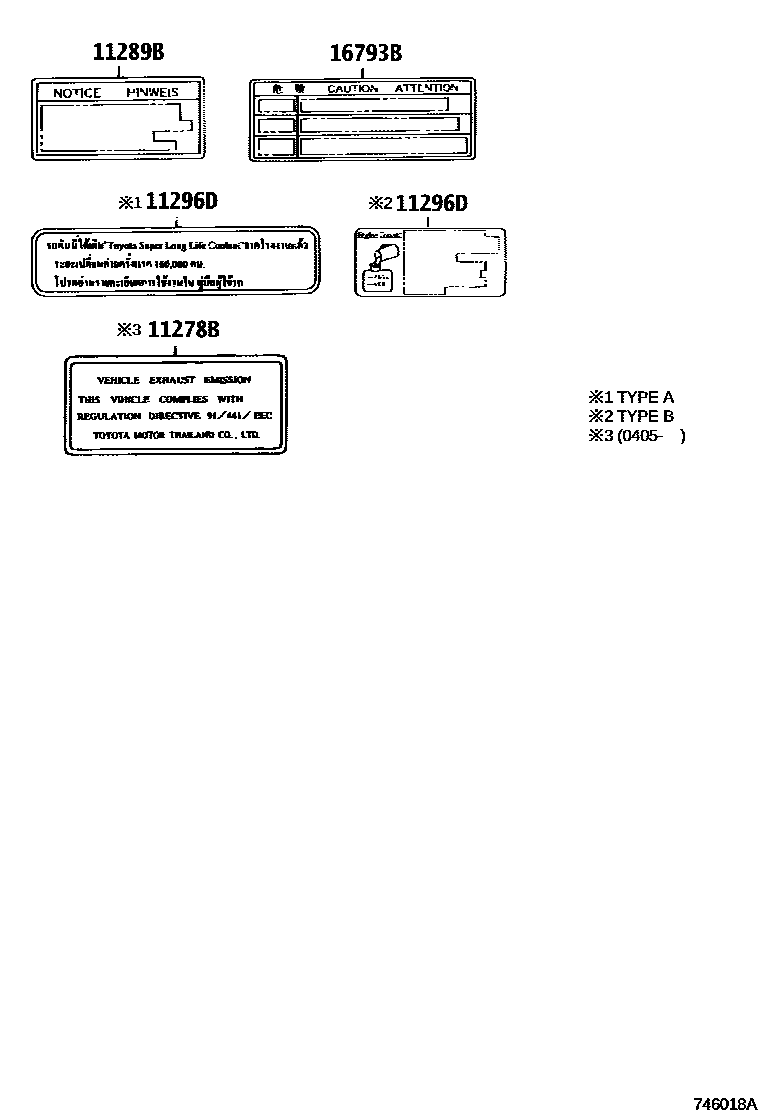

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM(1/2) 0002 1ENGINE ROOM, EXTERIOR, INTERI

11278BLABEL, ENGINE EMISSION COMPLIANCE INFORMATION

main11278-15020i1AZFE,2AZFE..ACV3#..(20E,24G)..TH..4FC200405-200608

11289BLABEL, SPARK PLUG NOTICE

main11289-28010i2AZFE..ACV30..PHL200407-200608

main11289-50010i1MZFE..MCV30..IDN,VN200205-200611

11296DLABEL, ENGINE SERVICE INFORMATION

main11296-0D020i1AZFE,1MZFE..ACV31,MCV30..TAIW200402-200605

main11296-0L010i1AZFE,2AZFE..ACV3#..TH..4FC200405-200608

TYPE A:REFER ILLUST.

main11296-0L010i1AZFE,2AZFE..ACV3#..TH200208-200405

main11296-27020i1AZFE,2AZFE,1MZFE..ACV3#,MCV30..IDN,MA,PHL,VN200310-200407

main11296-27020i1AZFE..ACV31..RHD;1MZFE..MCV30..PHL,TH;1MZFE..MCV30..VN..5FC;2AZFE..ACV30..24E,24G,24V200405-200611

TYPE B:REFER ILLUST.

16793BLABEL, COOLING FAN INFORMATION

main16793-28010i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200611

4 parts on this diagram · 2 diagrams in section
