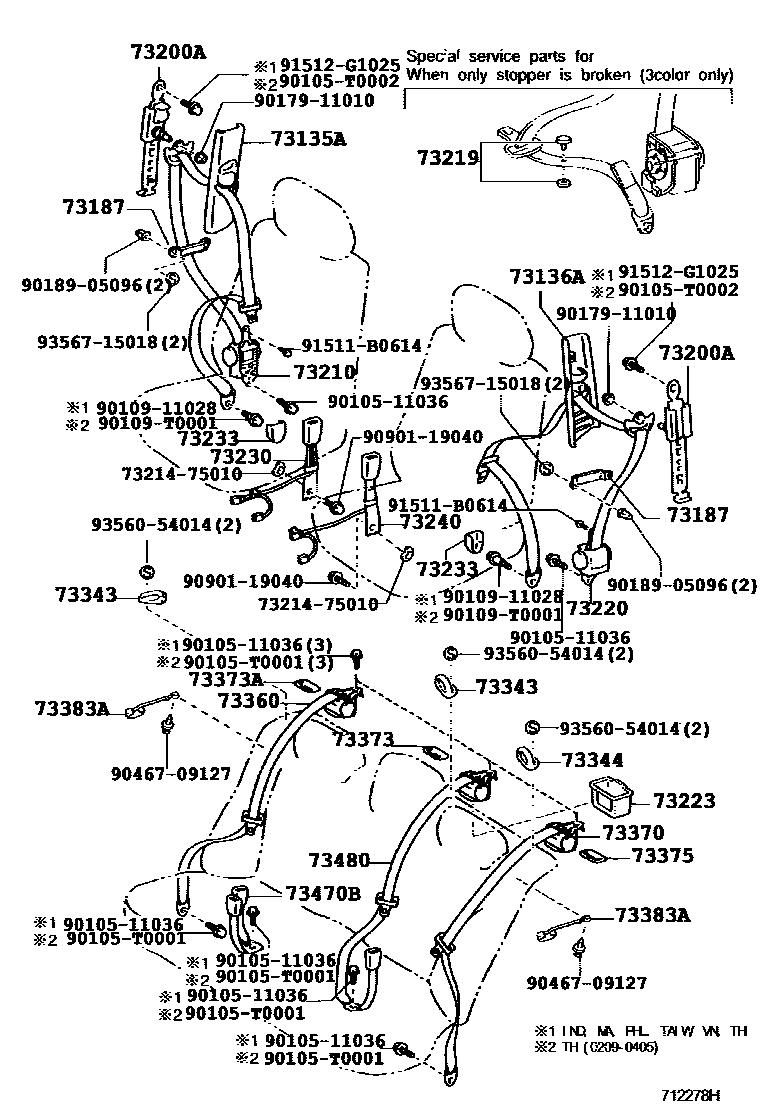

SEAT BELT & CHILD RESTRAINT SEAT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-06010-A0iACV3#,MCV30..(20E,20G,24G,24V,30G,30V)..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

IVORY,TRIM4#

main73023-06010-A0iMCV30..5FC;ACV31..MA,TAIW;ACV30..MA,PHL,VN200404-200611

IVORY,TRIM0#

main73023-06010-B0iACV31,MCV30..TAIW200203-200404

LT.GRAY,TRIM1#

main73023-06010-B0iACV31,MCV30..TAIW200404-200605

LT.GRAY,TRIM2#

main73023-06020-A0iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

main73023-06020-A0iACV3#..TH200203-200405

IVORY,TRIM4#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-06010-A0iACV31..20J200203-200407

IVORY,TRIM4#

main73024-06010-A0iMCV30..5FC;ACV31..MA,TAIW;ACV30..MA,PHL,VN200404-200611

IVORY,TRIM0#

main73024-06010-B0iACV31,MCV30..TAIW200404-200605

LT.GRAY,TRIM2#

main73024-06010-B0iACV31,MCV30..TAIW200203-200404

LT.GRAY,TRIM1#

main73024-06020-A0iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

main73024-06020-A0iACV3#..TH200203-200405

IVORY,TRIM4#

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06020iACV31,MCV30..TAIW200203-200412

main73200-06030iACV3#..TH200203-200306

sub73200-51020

main73200-06050iACV31,MCV30..TAIW200412

main73200-33050iACV3#,MCV30..MA,PHL,TH,VN200412

main73200-51020iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200205-200412

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06070-A2iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73210-06070-A2iACV31..20J200203-200404

IVORY,TRIM4#

main73210-06070-B2iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73210-06070-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73210-06080-A2iACV30,MCV30..VN;ACV3#..(PHL,TH)..4FC200203-200407

IVORY,TRIM4#

main73210-06090-A2iACV3#..MA200206-200407

IVORY,TRIM4#

main73210-06090-A2iACV3#..MA200407-200608

IVORY,TRIM0#

main73210-06100-A1iACV30,MCV30..IDN200205-200405

IVORY,TRIM4#

main73210-06140-A0iACV31..TH;ACV30..(PHL,TH)..4FC;ACV30,MCV30..(PHL,VN)..(5F,5FC)200405-200611

IVORY,TRIM0#

main73210-06150-A0iACV30..24G..4FC200405-200608

IVORY,TRIM0#

main73210-06150-A0iACV30..24G..4FC200405-200608

INDONESIA SPEC,IVORY,TRIM0#

73219STOPPER, TONGUE PLATE

main73219-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

BLACK

main73219-33020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

GRAY

main73219-33030iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06070-A2iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

IVORY,TRIM4#

main73220-06070-A2iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73220-06070-B3iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73220-06070-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73220-06080-A2iMCV30..IDN;ACV30..IDN..5F;ACV3#..(IDN,PHL,TH)..4FC200203-200407

IVORY,TRIM4#

main73220-06090-A2iACV3#..MA200407-200608

IVORY,TRIM0#

main73220-06090-A2iACV3#..MA200206-200407

IVORY,TRIM4#

main73220-06100-A1iACV30,MCV30..VN200207-200407

IVORY,TRIM4#

main73220-06140-A0iACV31..TH;ACV30,MCV30..PHL,TH200405-200608

IVORY,TRIM0#

main73220-06150-A0iACV30,MCV30..VN200407-200611

IVORY,TRIM0#

73223COVER, SEAT BELT RETRACTOR

main73223-06010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02100-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main73230-02100-A0iACV3#..MA200407-200608

IVORY,TRIM0#

main73230-02110-A0iACV31,MCV30..TAIW200203-200404

IVORY,TRIM4#

main73230-02110-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73230-02110-B1iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73230-02110-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73230-02150-A0iACV3#..TH200206-200405

IVORY,TRIM4#

main73230-06050-A0iACV30..24G..4FC200405-200608

IVORY,TRIM0#

main73230-06050-A0iMCV30..TH;ACV30..TH..5F200405-200608

INDONESIA SPEC,IVORY,TRIM0#

main73230-06170-A0iACV30,MCV30..IDN200205-200405

IVORY,TRIM4#

main73230-0A010-A0iACV3#,MCV30..PHL,VN200206-200407

IVORY,TRIM4#

main73230-0D100-A0iACV30,MCV30..PHL,VN200407-200611

IVORY,TRIM0#

main73230-0D110-A0iACV3#..TH..4FC200405-200608

IVORY,TRIM0#

73233COVER, LAP BELT OUTER ANCHOR

main73233-06020-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73233-06020-A0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

IVORY,TRIM4#

main73233-06020-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73233-06020-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73233-33010-A1iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

IVORY,TRIM4#

sub73233-33010

main73233-33010-A1iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

IVORY,TRIM0#

sub73233-33010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02070-A0iACV31..20J200203-200309

IVORY,TRIM4#

main73230-02070-A0iACV31..20E..TAIW200404-200605

IVORY,TRIM0#

main73230-02070-B1iACV31..20J200203-200404

STONE,TRIM1#

main73230-02070-C0iACV31..20E..TAIW200404-200605

BLACK,TRIM2#

main73230-02090-A0iACV3#..MA200407-200608

IVORY,TRIM0#

main73230-02090-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main73230-02150-A0iACV3#..PHL200206-200407

IVORY,TRIM4#

main73230-06050-A0iACV30..VN200407-200611

IVORY,TRIM0#

main73230-06170-A0iACV30..VN200207-200407

IVORY,TRIM4#

main73230-0A010-A0iACV3#,MCV30..IDN,TH200203-200405

IVORY,TRIM4#

main73230-0D100-A0iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

main73230-0D110-A0iACV30,MCV30..PHL200407-200608

IVORY,TRIM0#

main73240-06130-A0iMCV30..VN200407-200611

IVORY,TRIM0#

main73240-06160-A0iACV31,MCV30..(20G,30G,30V)..TAIW200404-200605

IVORY,TRIM0#

main73240-06160-A0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

IVORY,TRIM4#

main73240-06160-B0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

STONE,TRIM1#

main73240-06160-C0iACV31,MCV30..(20G,30G,30V)..TAIW200404-200605

BLACK,TRIM2#

main73240-06170-A0iMCV30..VN200207-200407

IVORY,TRIM4#

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-30060-A0iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

IVORY,TRIM4#

sub73343-30060

main73343-30060-A0iMCV30..30V..5FC200404-200611

IVORY,TRIM0#

sub73343-30060

main73343-30060-B3iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

sub73343-30060

main73343-30060-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

sub73343-30060

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73344-30050-A0iMCV30..30V..TAIW200203-200404

IVORY,TRIM45

sub73344-30050

main73344-30050-A0iACV30..24Q200404-200611

IVORY,TRIM0#

sub73344-30050

main73344-30050-A0iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC200203-200407

IVORY,TRIM4#

sub73344-30050

main73344-30050-B3iMCV30..30V..TAIW200203-200404

STONE,TRIM1#,45

sub73344-30050

main73344-30050-B3iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

sub73344-30050

main73344-30050-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

sub73344-30050

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-06110-A2iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73360-06110-A2iACV31..20J200203-200404

IVORY,TRIM4#

main73360-06110-B2iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73360-06110-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73360-06120-A2iACV3#,MCV30..IDN,PHL,VN200205-200407

IVORY,TRIM4#

main73360-06130-A2iACV3#..TH200203-200405

IVORY,TRIM4#

main73360-06140-A2iACV3#..MA200206-200407

IVORY,TRIM4#

main73360-06140-A2iACV3#..MA200407-200608

IVORY,TRIM0#

main73360-06160-A0iACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30V)..(PHL,TH)200405-200611

INDONESIA SPEC,IVORY,TRIM0#

main73360-06160-A0iACV3#..(20E,24G)..TH..4FC200405-200611

IVORY,TRIM0#

main73360-06160-A0iACV3#..(20E,24G)..TH..4FC200405-200611

SINGAPORE SPEC,IVORY,TRIM0#

main73360-06170-A0iACV3#..TH..4FC200405-200608

IVORY,TRIM0#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-06110-A2iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73360-06110-A2iACV31..20J200203-200404

IVORY,TRIM4#

main73360-06110-B2iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73360-06110-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73360-06120-A2iACV3#,MCV30..IDN,PHL,VN200205-200407

IVORY,TRIM4#

main73360-06130-A2iACV3#..TH200203-200405

IVORY,TRIM4#

main73360-06140-A2iACV3#..MA200206-200407

IVORY,TRIM4#

main73360-06140-A2iACV3#..MA200407-200608

IVORY,TRIM0#

main73360-06160-A0iACV3#..(20E,24G)..TH..4FC200405-200611

IVORY,TRIM0#

main73360-06160-A0iACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30V)..(PHL,TH)200405-200611

SINGAPORE SPEC,IVORY,TRIM0#

main73360-06160-A0iACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30V)..(PHL,TH)200405-200611

INDONESIA SPEC,IVORY,TRIM0#

main73360-06170-A0iACV3#..TH..4FC200405-200608

IVORY,TRIM0#

73373COVER, REAR SEAT SHOULDER BELT

main73373-21010-A0iACV31..20J200203-200407

IVORY,TRIM4#

sub73373-21010

main73373-21010-A0iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

IVORY,TRIM0#

sub73373-21010

main73373-21010-B1iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

sub73373-21010

main73373-21010-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

sub73373-21010

73373ACOVER, REAR SEAT SHOULDER BELT, RH

main73373-21010-A0iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

IVORY,TRIM0#

sub73373-21010

main73373-21010-A0iACV31..20J200203-200407

IVORY,TRIM4#

sub73373-21010

main73373-21010-B1iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

sub73373-21010

main73373-21010-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

sub73373-21010

73375COVER, REAR SEAT SHOULDER BELT, LH

main73375-21010-A0iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

IVORY,TRIM0#

sub73375-21010

main73375-21010-A0iACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC200203-200407

IVORY,TRIM4#

sub73375-21010

main73375-21010-B1iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

sub73375-21010

main73375-21010-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

sub73375-21010

73383AHOOK, RR SEAT BELT

main73383-33020iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC200203-200611

main73383-33030iMCV30..LHD..30V..4FC200203-200611

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-06020-A2iACV31..20J200203-200404

IVORY,TRIM4#

main73470-06020-A2iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73470-06020-B2iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73470-06020-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73470-06030-A2iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,PHL,TH)..4FC200203-200407

IVORY,TRIM4#

main73470-06040-A2iACV3#..MA200407-200608

IVORY,TRIM0#

main73470-06040-A2iACV3#..MA200206-200407

IVORY,TRIM4#

main73470-06060-A0iACV31..TH;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..PHL,TH,VN200405-200611

IVORY,TRIM0#

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-06020-A2iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main73480-06020-A2iACV31..20J200203-200404

IVORY,TRIM4#

main73480-06020-B2iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main73480-06020-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main73480-06030-A2iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,PHL,TH)..4FC200203-200407

IVORY,TRIM4#

main73480-06040-A2iACV3#..MA200407-200608

IVORY,TRIM0#

main73480-06040-A2iACV3#..MA200206-200407

IVORY,TRIM4#

main73480-06050-A0iACV31..TH;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..PHL,TH,VN200405-200611

IVORY,TRIM0#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511036

main90105-11036

90105T0001

main90105-T0001

90105T0002

main90105-T0002

9010911028

main90109-11028

90109T0001

main90109-T0001

9017911010

main90179-11010

9018905096

main90189-05096

9046709127

main90467-09127

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

9356054014

main93560-54014

9356715018

main93567-15018

35 parts on this diagram · 1 diagram in section
