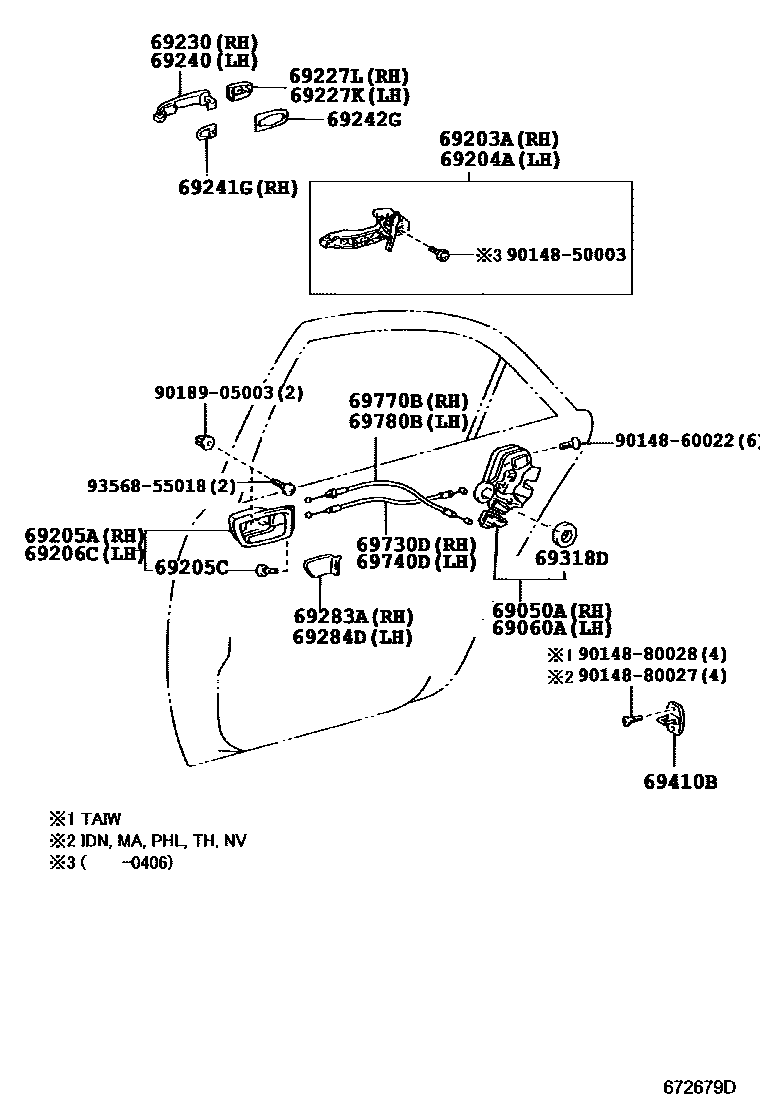

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-06030iACV31,MCV30..TAIW200203-200404

main69050-33071iMCV30..TH;ACV30..TH..5F200203-200407

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-06030iACV31,MCV30..TAIW200203-200404

main69060-33071iACV3#,MCV30..IDN,TH200203-200407

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-06010iACV31,MCV30..TAIW200203-200404

main69203-06020iACV3#,MCV30..MA,PHL,VN200203-200407

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-06010iACV31,MCV30..TAIW200203-200404

main69204-06020iACV3#,MCV30..IDN,TH200203-200407

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-33030-B2iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main69205-33030-E1iACV3#..(20E,24E,24G)..(MA,PHL,VN)200407-200611

SANDAL WOOD,TRIM0#

main69205-33030-E1iACV31..20J200203-200407

SANDAL WOOD,TRIM4#

main69205-33040-B0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main69205-33040-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main69205-33040-E0iACV3#,MCV30..(20G,24V,30V)..(MA,PHL,VN)200203-200407

SANDAL WOOD,TRIM4#

main69205-33040-E0iACV31,MCV30..(TAIW,TH)..4FC;ACV30,MCV30..(24G,24V,30G)..(PHL,TAIW,TH)200404-200608

SANDAL WOOD,TRIM0#

main69205-33060-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69205-33060-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

main69205-33060-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iACV31,MCV30..TAIW200203-200407

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-33030-B2iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main69206-33030-E1iACV31..20J200203-200407

SANDAL WOOD,TRIM4#

main69206-33030-E1iACV3#..(20E,24E,24G)..(MA,PHL,VN)200407-200611

SANDAL WOOD,TRIM0#

main69206-33040-B0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main69206-33040-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main69206-33040-E0iACV3#,MCV30..(20G,24V,30V)..(MA,PHL,VN)200203-200407

SANDAL WOOD,TRIM4#

main69206-33040-E0iACV31,MCV30..(TAIW,TH)..4FC;ACV30,MCV30..(24G,24V,30G)..(PHL,TAIW,TH)200404-200608

SANDAL WOOD,TRIM0#

main69206-33050-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69206-33050-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

main69206-33050-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

69227KCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02140iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

*CR

main69227-02150iACV31..(20E,20J)..TAIW200203-200404

main69227-02150-A1iACV31..20E..TAIW200404-200605

CKD COLOR

main69227-02903iACV31..(20E,20J)..TAIW200203-200404

LESS COLOR,LESS COLOR

main69227-06030iACV31,MCV30..IDN,PHL,VN;ACV30..(MA,PHL,TH)..4FC200203-200611

*CR

sub69227-06031

main69227-06900iACV31..RHD;ACV30..IDN,VN200203-200611

LESS COLOR

sub69227-06906

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-02140iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

*CR

main69227-02150iACV31..(20E,20J)..TAIW200203-200404

main69227-02150-A1iACV31..20E..TAIW200404-200605

CKD COLOR

main69227-02903iACV31..(20E,20J)..TAIW200203-200404

LESS COLOR,LESS COLOR

main69227-06030iACV31,MCV30..IDN,PHL,VN;ACV30..(MA,PHL,TH)..4FC200203-200611

*CR

sub69227-06031

main69227-06900iACV31..RHD;ACV30..IDN,VN200203-200611

LESS COLOR

sub69227-06906

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-02070iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

PLATED

main69210-06040iACV31..TH;MCV30..VN..5FC;ACV30,MCV30..MA,PHL,TH200203-200611

PLATED

main69210-06060iACV31..(20E,20J)..TAIW200203-200404

main69210-06060-A1iACV31..20E..TAIW200404-200605

CKD COLOR

main69210-06900iACV31..(20E,20J)..TAIW200203-200404

NO PAINT REQ.,LESS COLOR

main69210-06905iACV30..VN;ACV31..RHD200203-200611

PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-02070iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

PLATED

main69210-06040iACV31,MCV30..IDN,PHL,VN;ACV30..(MA,PHL,TH)..4FC200203-200611

PLATED

main69210-06060iACV31..(20E,20J)..TAIW200203-200404

main69210-06060-A1iACV31..20E..TAIW200404-200605

CKD COLOR

main69210-06900iACV31..(20E,20J)..TAIW200203-200404

NO PAINT REQ.,LESS COLOR

main69210-06905iACV31..RHD;ACV30..IDN,VN200203-200611

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06030iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

main69241-42020iACV31,MCV30..TAIW200203-200404

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06020iACV3#,MCV30..MA,PHL,VN200203-200407

main69242-42010iACV31,MCV30..TAIW200203-200404

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-B0iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub69283-33020

main69283-33020-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

sub69283-33020

main69283-33020-E0iACV3#..TH200203-200407

SANDAL WOOD,TRIM4#

sub69283-33020

main69283-33020-E0iACV31,MCV30..(MA,TAIW,TH)..4FC;ACV30,MCV30..(24E,24G,24V,30G)..(PHL,TAIW,TH,VN)200404-200611

SANDAL WOOD,TRIM0#

sub69283-33020

main69283-33030-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69283-33030-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

main69283-33030-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-B0iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub69284-33020

main69284-33020-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

sub69284-33020

main69284-33020-E0iACV3#..TH200203-200407

SANDAL WOOD,TRIM4#

sub69284-33020

main69284-33020-E0iACV31,MCV30..(MA,TAIW,TH)..4FC;ACV30,MCV30..(24E,24G,24V,30G)..(PHL,TAIW,TH,VN)200404-200611

SANDAL WOOD,TRIM0#

sub69284-33020

main69284-33030-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69284-33030-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

main69284-33030-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iACV3#,MCV30..IDN,TH200203-200407

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-06010iACV31,MCV30..TAIW200203-200404

main69410-33010iMCV30..TH;ACV30..TH..5F200203-200407

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-06020iMCV30..TAIW..5FC200203-200404

main69730-33050iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-06020iMCV30..TAIW..5FC200203-200404

main69730-33050iACV3#,MCV30..IDN,TH200203-200407

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-06010iACV31,MCV30..TAIW200203-200404

main69770-33010iACV3#..TH200203-200407

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-06010iMCV30..TAIW..5FC200203-200404

main69770-33010iMCV30..TH;ACV30..TH..5F200203-200407

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9014880028

main90148-80028

9018905003

main90189-05003

9356855018

main93568-55018

27 parts on this diagram · 1 diagram in section
