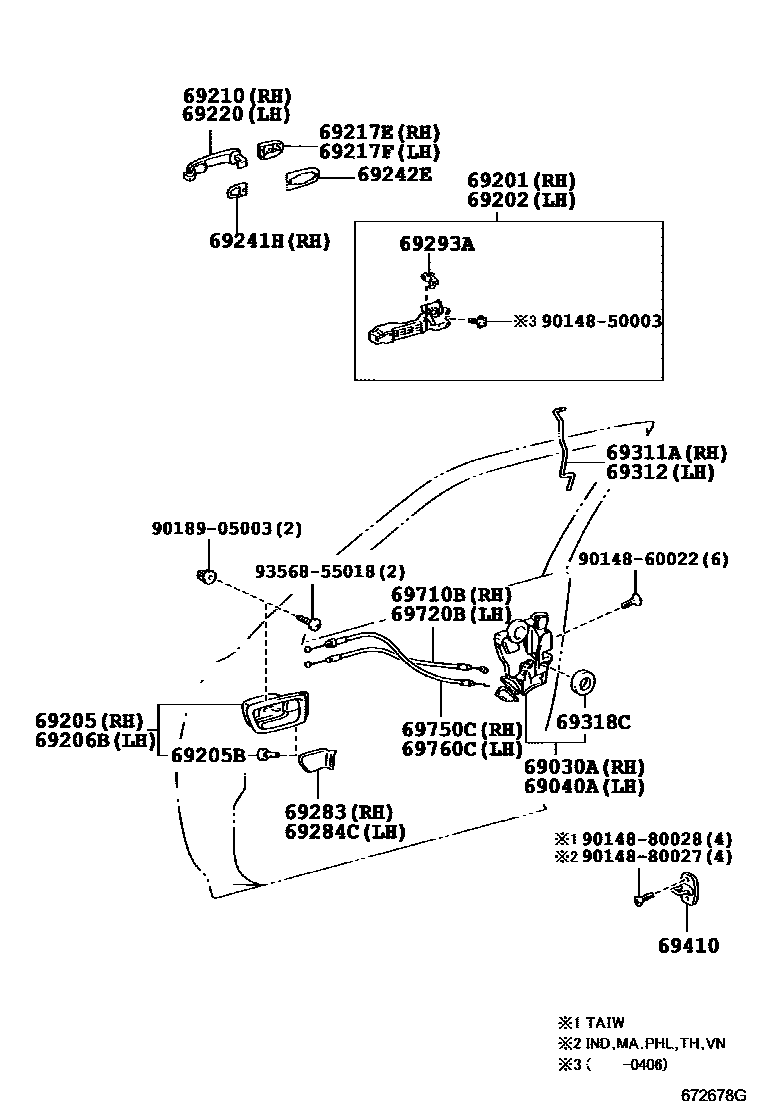

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-06060iACV31,MCV30..TAIW200203-200404

main69030-33231iACV30,MCV30..PHL,VN200206-200407

main69030-33241iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-06060iACV31,MCV30..TAIW200203-200605

main69040-33231iACV3#,MCV30..PHL,VN200206-200611

sub69040-33232

main69040-33241iACV3#,MCV30..RHD200203-200608

69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH

main69201-06010iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200611

main69201-06020iACV31,MCV30..TAIW200203-200605

69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH

main69202-06010iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200611

main69202-06020iACV31,MCV30..TAIW200203-200605

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-33030-B2iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main69205-33030-E1iACV3#..(20E,24E,24G)..(MA,PHL,VN)200407-200611

SANDAL WOOD,TRIM0#

main69205-33030-E1iACV31..20J200203-200407

SANDAL WOOD,TRIM4#

main69205-33040-B0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main69205-33040-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main69205-33040-E0iMCV30..(IDN,TAIW,VN)..4FC;ACV31..(20E,20G)..(TAIW,TH);ACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203-200407

SANDAL WOOD,TRIM4#

main69205-33040-E0iACV31,MCV30..(TAIW,TH)..4FC;ACV30,MCV30..(24G,24V,30G)..(PHL,TAIW,TH)200405-200608

SANDAL WOOD,TRIM0#

main69205-33060-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69205-33060-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

main69205-33060-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-33030-B2iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main69206-33030-E1iACV30..(IDN,VN)..5F;ACV31..20E..(MA,PHL)200203-200407

SANDAL WOOD,TRIM4#

main69206-33030-E1iACV3#..(20E,24E,24G)..(MA,PHL,VN)200407-200611

SANDAL WOOD,TRIM0#

main69206-33040-B0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main69206-33040-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main69206-33040-E0iACV31,MCV30..(TAIW,TH)..4FC;ACV30,MCV30..(24G,24V,30G)..(PHL,TAIW,TH)200404-200608

SANDAL WOOD,TRIM0#

main69206-33040-E0iMCV30..(IDN,TAIW,VN)..4FC;ACV31..(20E,20G)..(TAIW,TH);ACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203-200407

SANDAL WOOD,TRIM4#

main69206-33050-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69206-33050-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

main69206-33050-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02070iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

PLATED

main69210-06040iACV31..TH;MCV30..VN..5FC;ACV30,MCV30..MA,PHL,TH200203-200611

PLATED

main69210-06060-A1iACV31..(20E,20J)..TAIW200203-200605

CKD COLOR

main69210-06900iACV31..(20E,20J)..TAIW200203-200404

NO PAINT REQ.,LESS COLOR

main69210-06905iACV31..RHD;ACV30..IDN,VN200203-200611

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-06020iACV31,MCV30..IDN,PHL,VN;ACV30..(MA,PHL,TH)..4FC200203-200611

*CR

main69217-06900iACV30..VN;ACV31..RHD200203-200611

LESS COLOR

sub69217-06908

main69217-12010iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

*CR

main69217-12040-A2iACV31..(20E,20J)..TAIW200203-200605

CKD COLOR,000

sub69217-12040

main69217-12901iACV31..(20E,20J)..TAIW200203-200404

LESS COLOR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-06020iACV31,MCV30..IDN,PHL,VN;ACV30..(MA,PHL,TH)..4FC200203-200611

*CR

main69217-06900iACV30..VN;ACV31..RHD200203-200611

LESS COLOR

sub69217-06908

main69217-12050iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

*CR

main69217-42020iACV31..20E..TAIW200203-200605

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-02070iACV31,MCV30..(20G,30G,30V)..TAIW200203-200605

PLATED

main69210-06040iACV31..TH;MCV30..VN..5FC;ACV30,MCV30..MA,PHL,TH200203-200611

PLATED

main69210-06060-A1iACV31..(20E,20J)..TAIW200203-200605

CKD COLOR

main69210-06900iACV31..(20E,20J)..TAIW200203-200404

NO PAINT REQ.,LESS COLOR

main69210-06905iACV30..VN;ACV31..RHD200203-200611

PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-06020iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200611

main69241-42020iACV31,MCV30..TAIW200203-200605

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-06020iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200611

main69242-42010iACV31,MCV30..TAIW200203-200605

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-B0iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub69283-33020

main69283-33020-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

sub69283-33020

main69283-33020-E0iACV31..20J200203-200407

SANDAL WOOD,TRIM4#

sub69283-33020

main69283-33020-E0iACV31,MCV30..(MA,TAIW,TH)..4FC;ACV30,MCV30..(24E,24G,24V,30G)..(PHL,TAIW,TH,VN)200404-200611

SANDAL WOOD,TRIM0#

sub69283-33020

main69283-33030-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69283-33030-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

main69283-33030-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-B0iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub69284-33020

main69284-33020-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

sub69284-33020

main69284-33020-E0iACV31,MCV30..(MA,TAIW,TH)..4FC;ACV30,MCV30..(24E,24G,24V,30G)..(PHL,TAIW,TH,VN)200404-200611

SANDAL WOOD,TRIM0#

sub69284-33020

main69284-33020-E0iACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC200203-200407

SANDAL WOOD,TRIM4#

sub69284-33020

main69284-33030-C0iMCV30..TAIW200404-200605

W(ILLUMINATION LAMP),BLACK,TRIM2#

main69284-33030-E0iMCV30..TAIW;ACV30..TH..4FC200404-200608

W(ILLUMINATION LAMP),SANDAL WOOD,TRIM0#

main69284-33030-E0iACV30..MA;MCV30..PHL,VN200407-200611

SANDAL WOOD,TRIM0#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iACV31,MCV30..TAIW200203-200605

RH

main69293-12040iACV31,MCV30..TAIW200203-200605

LH

main69293-33010iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200611

RH

main69293-33020iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200611

LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-06030iACV31,MCV30..TAIW200203-200404

main69311-33050iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-06030iACV31,MCV30..TAIW200203-200404

main69312-33050iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-06010iACV31,MCV30..TAIW200203-200404

main69410-33010iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-06030iACV31,MCV30..TAIW200203-200404

main69710-33040iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-06030iACV31,MCV30..TAIW200203-200404

main69710-33040iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-06020iACV31,MCV30..TAIW200203-200404

main69750-33010iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-06020iACV31,MCV30..TAIW200203-200404

main69750-33010iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9014880028

main90148-80028

9018905003

main90189-05003

9356855018

main93568-55018

30 parts on this diagram · 1 diagram in section
